20BBL Complete Bar Restaurant Brewing System Craft Commercial Stackable Bright Beer Tank/ Serving Tank

10BBL bright beer tank are made of stainless steel 304. It was customized by experienced senior engineers. Bright beer tanks are often also called serving tanks, tax determination tanks, bright beer tanks (=BBT), maturation or conditioning tanks. We know that bright beer tank is the last vessel that beer comes in contact with to become a beer that is perfectly matured, clarified and ready to be packaged and served. Depending on their application , the beer serving tanks can be glycol jacketed or can be located in a cold room. For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.

Beer brewery equipment in pub

Bright beer tank feature

1.Adopted the scientific technology to keep pressure,cooling,there is also a jacket in the cone to low the temperature.Realized lowering the temperature rapidly,lowering the part,lowering the cone.

2.Perfect cleaning condition,scientific design of the tank,head and the cone.Ensure the CO₂ supply,low temperature of the beer,cleaning of the tank.Ensure the tank is connected and  shares with the CIP  system,ice water,temperature control.

3.Appearance clean and generous and the equipment is bright.

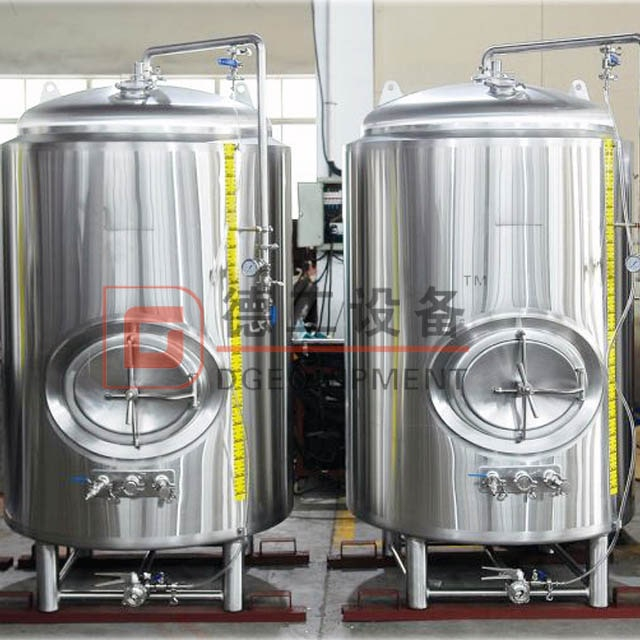

10BBL bright beer tanks

Bright beer tank details

• Function：Wort maturation

• Tank Capacity: 20BBL (+25% Headspace minimum)

• Interior Shell: SUS304 full welded; TH=3mm

• Exterior Shell:SUS304 full welded; TH=2mm

• 100% TIG welding with pure argon gas shield

• Interior Finish: Overall polishing to 0.6 μm without dead corner

• Glycol Jacket: Dimpled plate on cone and side

• Stringent tank leakage test by water and pressured gas

• Stringent Jacket leakage test by water and pressured gas

• Cone 150° resist compression design, dripping temperature drop.

• Sanitary top mounted manway

• CIP arm with 360° coverage CIP spraying ball

• Full sanitary sampling valve

• Mechanical relief valve 2 bar on CIP arm

• Shockproof pressure gauge on CIP arm

• Rotating racking arm and port on cone with butterfly valve

• Tri clamp discharge arm with butterfly valve

• Thermowell for high accuracy temperature sensor

• Complete valves, fittings and all parts

• Level tube for special request

• Carbonation port and stone for special request

• With top manhole, breather valve, cleaning ball, sampling valve, mechanical regulation valve, temperature probe(PT100), adjustable foot, legs.

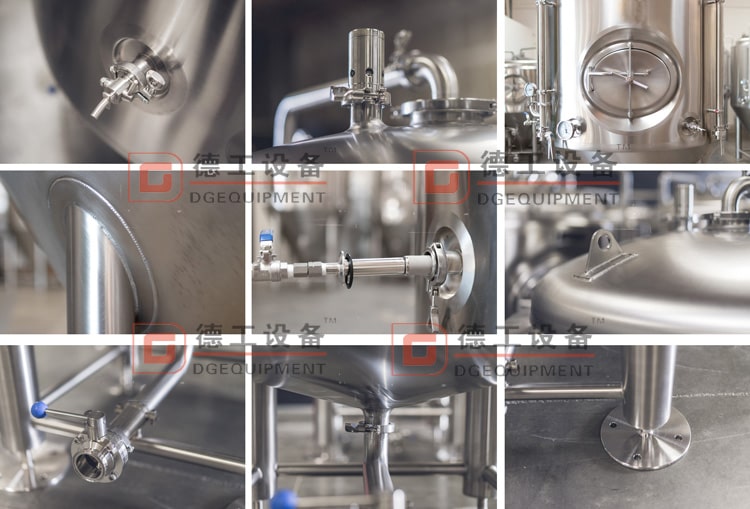

Bright beer tank details

DEGONG advantage

Our certificate(CE, TVU, ISO)

If you are interested in bright beer tank, please get in touch with me freely.
