Material: | |
---|---|
Usage: | |
Automatic Grade: | |
Availability: | |
Quantity: | |
DGET
DGET
8438400000
1-Applicable bottles |

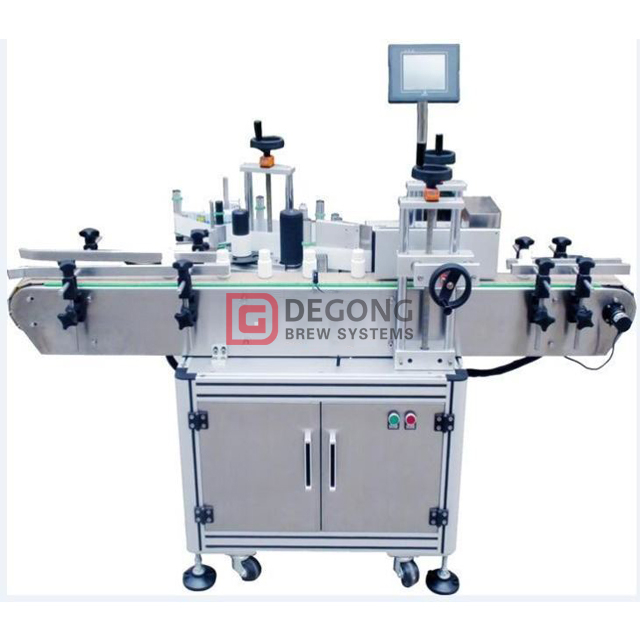

Automatic round bottle labeling machine also called vertical labeling machine, it is application for labelling a range of round bottles

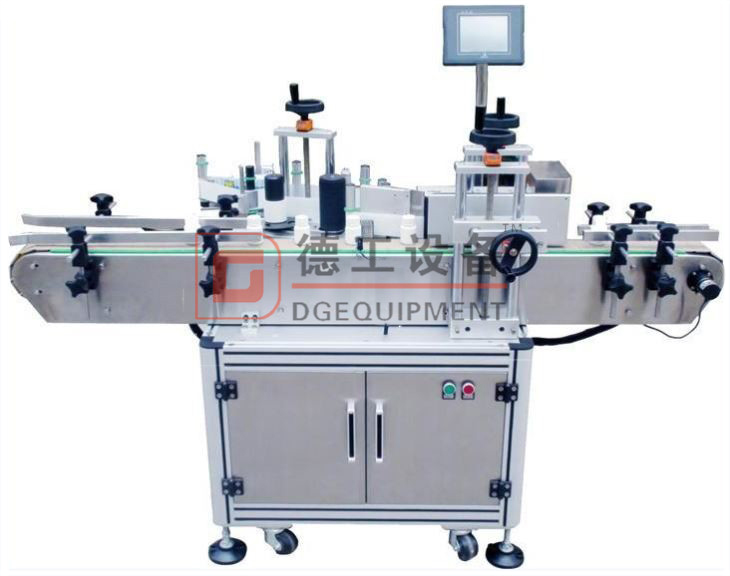

Stainless Steel Beer Bottle Sleeve Labeling Machine for sale
2-Working process of round bottles labeling machine |
Manually put bottles on conveyor or using a automatic bottle turntable
And the bottles will be separated by bottle separator to keep the each bottle distance for guarantee the working stable
All the action are control by PLC, Automatic sense the bottle and labels, automatic apply the labels on the two sides of the bottles. And machine with function, no bottle no labeling, automatic warning if no label or lack of labels
After apply the labels on bottles, the label paste device will paste the labels to fasten the label on bottles.
Then bottle go to next processing

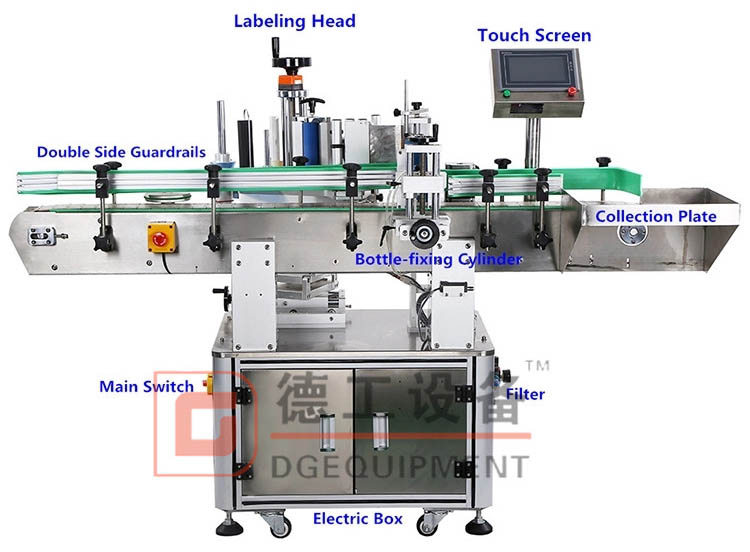

labeling machine with control panel
3-Advantages |
Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.
Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.
High precision-Accuracy from +-0.5-1mm.
wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm,If customized height of 10mm-150mm,length of 15mm-300mm, please kindly ask us.
High speed-Speed max can reach 150bottles per min subject to the label size and bottle size.
Europe standard-The labeling machine is made according to CE standard.
4-Main Technical parameters |
Model / technical parameters | NP-RL |
Labeling speed (pcs/min) | 40-100 (relate to material and label size) |
Labeling accuracy(mm) | ±1.0mm (material and label sizes are not counted in) |
Label size(mm) | (L)20-280mm (H)30-144mm |
Material size (mm) | Φ20-φ100mm (H)40-200mm |
Roll inside(mm) | φ76mm |
Roll outer diameter(mm) | Max:Φ350mm |
Machine size (mm) | (L)2000*(W)850*(H)1450(mm) |
Power supply | AC220V 50Hz/60Hz 1500W |

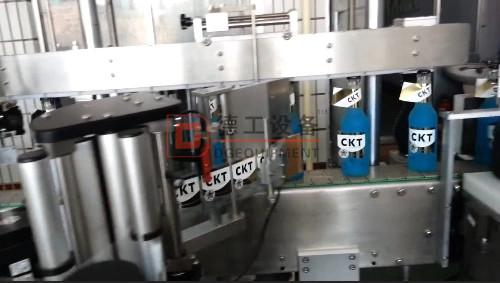

Glass beer bottle labeling
Conveyor belt
Labeling machine
Configuration Parts of labeling machine | |||
Item | Description | Quantity | Remark |
1 | PLC | 1 | Siemens Made In German |
2 | Touch Screen | 1 | Siemens Made In German |
3 | Transducer | 1 | Delta |
4 | DC24V Electrical Source | 1 | Delta |
5 | Checking Label Sensor | 1 | Leuze |
6 | Checking bottle Sensor | 1 | |
7 | Optical | 1 | |
8 | STEP MOTOR AND DRIVER | 1 | INVONATION |
9 | SWITCH | 1 | SCHNIDER FRANCE |
10 | Emergency Switch | 1 | SCHNIDER FRANCE |
Our company: |
Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
Contact information: |
If you are interested in our equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
