DEGONG 7BBL brewhouse is an excellent small to medium brew pub system! This 7 bbl brewing system is easily expandable as demand grows, and is an ideal brewing system for the beginning entrepreneur, restaurateur and artisan. Offering all the advantages of a fast and easy setup, our 7 bbl brewhouse comes with UL Listed Controls that meet the nationally recognized Standards for Safety, which keeps your brewers safe and avoids major hassles at inspection time.
|Thickness of material (mm):|
DEGONG 7BBL brewery equipment is an excellent small to medium brew pub system! This 7 bbl brewing system is easily expandable as demand grows, and is an ideal brewing system for the beginning entrepreneur, restaurateur and artisan. Offering all the advantages of a fast and easy setup, our 7 bbl brewhouse comes with UL Listed Controls that meet the nationally recognized Standards for Safety, which keeps your brewers safe and avoids major hassles at inspection time.
More and more restaurants are starting their own brewpubs to capture the attention of craft beer enthusiasts. You may be asking yourself, how do I start a brewpub in my restaurant? And what kind of brewing equipment should I have?
|Beer brewhouse introduction|

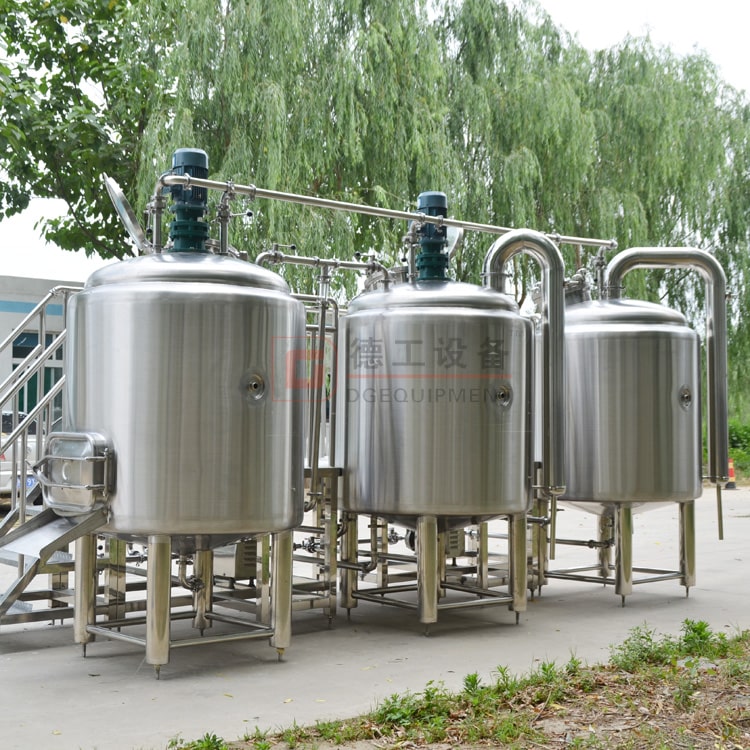

The brewhouse contains four basic function tanks,which is “Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun” .They can be combined to different configurations based on your output requirement and budget,such as 2-vessel brewhouse,3-vessel brewhouse or 4-vessel brewhouse.

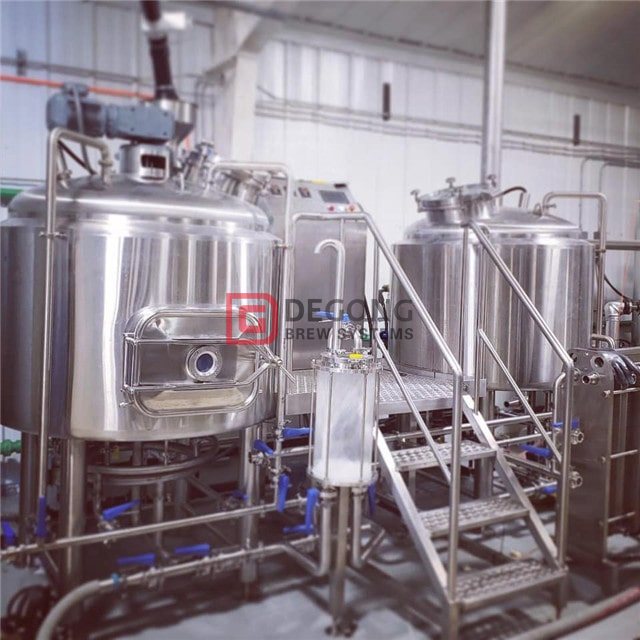

For the 7BBL beer brewhouse,it is usually consist of 2-vessels: Mash-Lauter tun (M-L) and Kettle-Whirlpool tun (K-W). Both tanks are able for heating, which gives brewers multiple opportunities to mash with different brewing method.
The 2-vessel beer brewhouse/beer mashing system can accomplish 2-3 batches of saccharification every day. If you want to complete more batches, we can choose a 3-vessel (mash kettle,lauter tank,whirlpool tank) or 4-vessel(mash tank,lauter tank,boiling kettle,whirlpool tank)beer brewhouse.
Brewhouse System configuration:
mash/lauter tank with Siemens VFD motor for raker,easy installation false bottom,,high accuracy temperature sensor,sparage ring and cleaning ball
Boiling/whirlpool tank with Siemens VFD motor for agitator,tangential port for whirlpool,with steam jacket or electric heating pipe,high accuracy temperature sensor,cleaning ball.
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel cladding is even the unique because of easy maintenance and clean
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
Stainless steel hops filter
All pipings, pipes maniford and fittings
Steam heating/electric heating or direct fire heating
|Beer fermentation tank introduction|
The fermentation tank is made out of 304 stainless steel, this fermenter is sanitary, easy to maintain, and versatile. The conical femrentation tank is welded drain valve at the bottom. Intended to allow for easy cleaning and rinsing, it is also possible to dump yeast, depending on the beer in question.
Brite tanks are beer tanks used for storage, conditioning, carbonation, and packaging. They will have dish bottoms and sight glasses (a thin glass tube running the vertical height of the tank). They will also have ports for a carbonation stone and sample cocks (small spigots) for measuring CO2 volumes.
Function: Use for keep wort fermentation or maturation.
Component: It is consisted of Shadowless manhole, spunding valve, Aseptic valve, Pressure gauge, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
Material: Stainless steel 304 or 316,or red copper
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water or alcohol water.
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).
If you have interest in DEGONG brewing equipment,welcome to contact me freely.
