700L Micro Brewery Used Stainless Steel Breweing Equipment Manufacturer for Beer Making And Homebrewing

Microbrewery equipment is widely used in restaurants, pub and bars. DEGONG micro brewing equipment has high production efficiency and can produce delicious craft beer.

The microbrewery equipment design of equipment has greater flexibility and can adapt to the actual layout of different bars, restaurants. If craft is the soul of brewing, then the equipment is the skeleton of brewing.

Beer brewhouse bacic configuration

MASH/LAUTER TANK • Volume + ~30% headspace • Inner-shell (SUS304), thickness: 3.0mm; • External-shell (SUS304), thickness: 2.0mm; •Jacket(SUS304),thickness:1.5mm; •Cone bottom thickness: 3.0mm; •Insulation thickness: 100mm; • Internal 2B finishing, welds polishing to 0.4um •Mash rakes  •Auto spent grain out by reversing rakes • Sparge arm; False bottom with 0.7mm gap; • PT100 Temperature sensor probe; • Spent grain manway; • Top glass manhole • CIP spray ball	BOILING/WHIRLPOOL TANK • Volume + ~30% headspace • Inner-shell (SUS304), thickness: 3.0mm; •Jacket(SUS304),thickness:1.5mm; • External-shell (SUS304), thickness: 2.0mm; • Cone bottom thickness: 3.0mm; • Insulation thickness: 100mm; • Internal 2B polishing, welds polishing to 0.4um • Tangential port • Sight glass manhole •Boiling agitator • PT100 Temperature sensor probe; •CIP spray ball

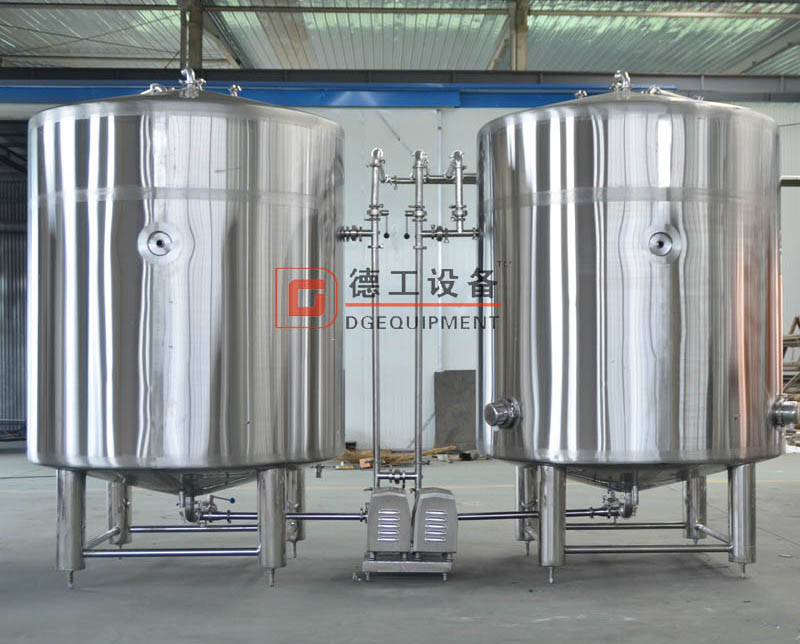

HLT • Volume + ~15% headspace • Inner-shell (SUS304), thickness: 3.0mm; • External-shell (SUS304), thickness: 2.0mm; •Jacket(SUS304),thickness:1.5mm; • Dish bottom thickness: 3.0mm; • Insulation thickness: 100mm; • 2B finish, welds polishing to 0.4um • Sight glass • PT100 Temperature sensor probe; • Top manhole • CIP spray ball	CLT • Volume + ~10% headspace • Inner-shell (SUS304), thickness: 3.0mm; • External-shell (SUS304), thickness: 2.0mm; •Jacket(SUS304),thickness:1.5mm; • Dish bottom thickness: 3.0mm; • Insulation thickness: 100mm; • 2B finish, welds polishing to 0.4um • Sight glass • PT100 Temperature sensor probe; • Top manhole • CIP spray ball
STANDARD ACCESSORIES OF BREWHOUSE • Operate Platform • Stainless steel Pipes, valves, clamps & seal • Heat exchanger • Transfer Pump •Control panel •Grant/Hop back

2.Fermentation tank

•Material Inner (AISI304)thickness: 3.0mm; Outer(AISI304)thickness:2.0mm

•External-Jacket(AISI304) thickness: 1.5mm;

•Oval head cone bottom, thickness: 3.0mm.

•Inner Surface: Mirror polishing

•Inner surface treatment: welds grinded to Ra 0.6μm (attached 360 degree Omni cleaning ball).

•Vessel Pressure: 1.5 bar / 3.0 bar

•Insulation: Polyurethane-thickness100 mm.

•Equipment with : cone 60°resist compression design

•Heat exchange area：2.69㎡

•Side mahole

•Cleaning ball

•CIP pipe

•Lifting ear

•Cooling jacket,two cooling zone

•Temperature sensor

•Pressure guage

•Machinery regulator

•Breathing valve

•Hops adding hole

•Simple valve

•Raking arm

•carbonation stone

• As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.


• If you already have solutions, we would fabricate the equipment exactly as per your request.

• We could offer you training of brewing craft beer and operating equipment if needed.

• Equipment can be customized according to your request.

• We also offer you 36 months warranty.

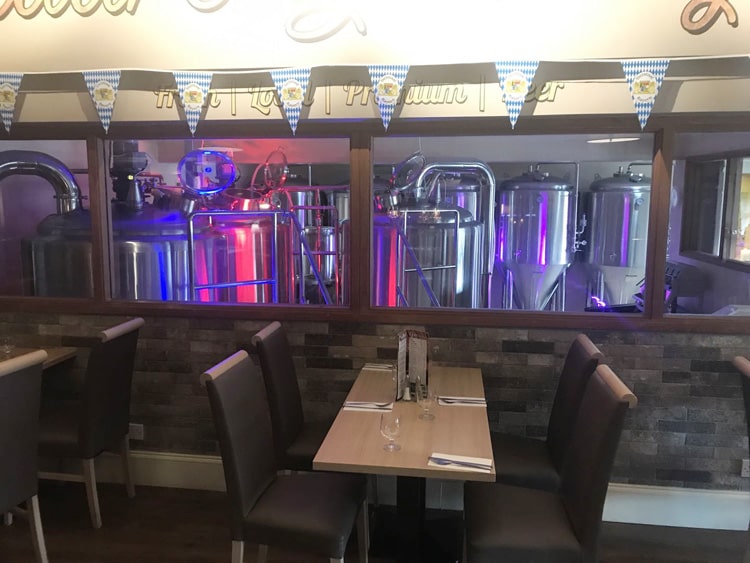

DEGONG Brewery equipment can used in commercial brewery or brewpub or restaurant.DEGONG can provide any type of brewing equipment according to your requirement.If you have interest,please get in touch with me freely.
