| Thickness of material (mm): | |
|---|---|
| Heating method: | |
| Material: | |
| Quantity: | |
DGET-600L
DGET
8438400000
Whether you want to save space, money, and time by only using a 2 vessel mash and boil kettle or you need a dedicated HLT tank alongside them, we have the right brewing system for you.
Brewhouses with limited space can use commercial tankless water heaters instead of an HLT commercial brewing tank to provide hot water as needed. Our stainless steel vessel brewing systems are insulated using 00mm polyurethane insulation, keeping temperatures at exactly the level you need them to be.
Our brewing systems also allow you to produce many batches from the beginning to the cleanup process. Maximize your brewhouse’s efficiency with our systems!

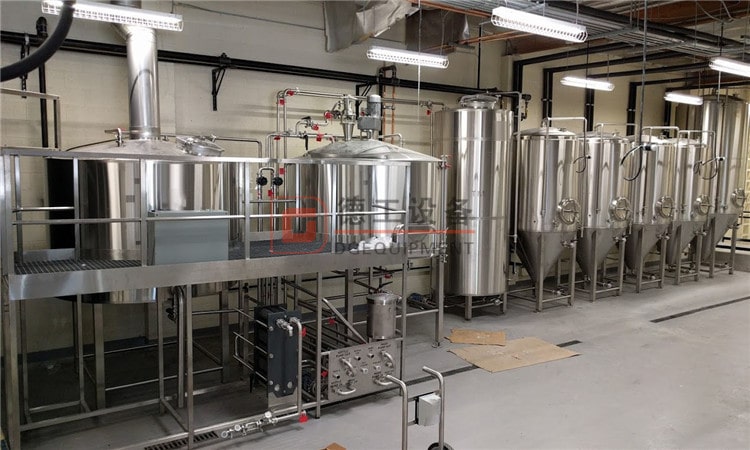

600L Craft beer equipment
600L craft beer equipment and lager tanks can be available
| Brewhouse unit | |
| Mash/Lauter tun | Grain rake with VFD Laser cutting V-wire False Bottom Easy clean and detachable sparging spray ring Multi-hole wort collect ring, anti-rinser With side grain out door Mash hydration assembly Rotary CIP spray balls Level sight tube |
| Kettle/Whirlpool Tun | Steam Jacket /direct gas fired heating/electric heating Steam vent with condensate ring for kettle stack Rotary CIP spray balls Tangential whirlpool entry Level sight tube |
| Wort pump / hot water pump | Sanitary pumps with variable speed control |
| Ergonomic working platform | Platforms with safety railings & stairs |
| Hot liquor tank | Steam Jacket heating/direct gas fired heating/electric heating Sight gauge for water level pump with variable speed control |
| Plate heat exchanger | SUS304/316 plate, with wort aeration system |
Fermenting unit details:
Fermenting vessels
| Fermenting unit vessel Specification |
Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell 60 degree cone bottom, with an average of 25% head space Rotating racking port Glycol cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm for maximum tank space utilization Mechanical relief valve；Pressure vacuum relief valve Shockproof pressure gauge CIP arm and spray ball Dry hop port Carbonation stone Butterfly valves, sample valve, RTD Probe Tension braces on legs Sanitary tri-clamp connections |
Turnkey Brewing Systems mainly includes:
Grain Handling.
Heating System - Electric, Steam, or Direct Fire.
Brew House Tanks.
Brew House Controls.
Pumps.
Glycol & Plate Chillers.
Cellar Tanks.
Cellar Controls.
DEGONG BREWERY
Services:
1. Provide free consultation on brewing process and equipment configuration technical solutions
2. Site conditions and equipment layout water, electricity and energy
3. Design strictly in accordance with the equipment process required by customers, and support on-site equipment debugging
4. Processed according to the drawings, in line with national pressure vessel requirements
5. Provide online and offline marketing promotion methods!
6. Lifetime warranty of beer equipment, free update of beer making technology
7. Send professional and technical personnel to install equipment and beer production technology training
Ready to Get Started Building Your Dream brewery?
Contact DEGONG Alice Today!
