DGET-600L
DGET
8438400000
1.About the raw material:
All tanks are made of international standard stainless steel, we use 3mm interior shell and 2mm exterior shell.
2.About the drawing
Generally our technician will design the suitable layout accordingly before production once our customers confirmed their orders. Then our workshop will do the manufacturing strictly according to the detailed drawing. It is normative for every order.
3.About the welding and polishing
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder. The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.4 μm without dead corner firstly, then do acid pickling and passivation. Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.
Function: Grain mashing
Tank Capacity: 600L (+25% Headspace minimum)
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 um without dead corner
Insulation: polyurethane; TH=80mm
Heating:steam/electric/direct fire heated
Steam Jacket: you choose steam heating.
Dished top and sloped bottom
Stainless steel top mounted manway
Top glass manhole
360 degree CIP spraying ball
4pcs completely SUS304 heavy duty legs with leveling pad
Thermowell for high accuracy temperature sensor

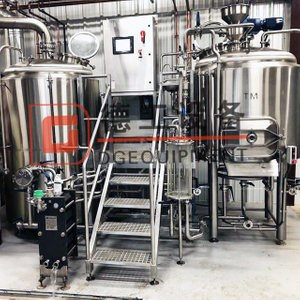

2-vessel mash system(mash/lauter tun+boiling/whirlpool tun)
DEGONG Fermentation tanks available from 100L to 20000L and average 30% Head Space.
All tanks have a Dish top,
Cylinder body & 60° Cone Bottom.
Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
All tanks use Tri-clamp connections.
We can customize fabricate any tank to meet your brewery's space and height restrictions.

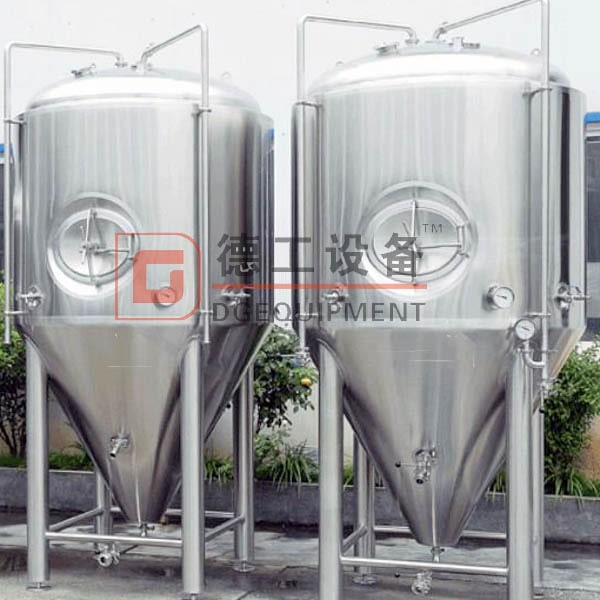

15BBL fermentation tanks
fermenter details(Tri-clamp, sample valve, mechanical regulation valve, Carbonation stone)
1.About the raw material:
All tanks are made of international standard stainless steel, we use 3mm interior shell and 2mm exterior shell.
2.About the drawing
Generally our technician will design the suitable layout accordingly before production once our customers confirmed their orders. Then our workshop will do the manufacturing strictly according to the detailed drawing. It is normative for every order.
3.About the welding and polishing
We make sure the 100% TIG welding with pure argon gas shield. We use the central system of argon, instead of ordinary gas cylinder. The argon will help to reduce the oxygenation. After welding, they will be polished to arrive to 0.4 μm without dead corner firstly, then do acid pickling and passivation. Which will help to remove the oxygenation on welding line; and form protection film on the steel to avoid rust. It will help you to extend the tanks life time.
Function: Grain mashing
Tank Capacity: 600L (+25% Headspace minimum)
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 um without dead corner
Insulation: polyurethane; TH=80mm
Heating:steam/electric/direct fire heated
Steam Jacket: you choose steam heating.
Dished top and sloped bottom
Stainless steel top mounted manway
Top glass manhole
360 degree CIP spraying ball
4pcs completely SUS304 heavy duty legs with leveling pad
Thermowell for high accuracy temperature sensor
2-vessel mash system(mash/lauter tun+boiling/whirlpool tun)
DEGONG Fermentation tanks available from 100L to 20000L and average 30% Head Space.
All tanks have a Dish top,
Cylinder body & 60° Cone Bottom.
Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
All tanks use Tri-clamp connections.
We can customize fabricate any tank to meet your brewery's space and height restrictions.
15BBL fermentation tanks
fermenter details(Tri-clamp, sample valve, mechanical regulation valve, Carbonation stone)
