DGET-1500L
DGET
8438400000
1.Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach CE, PED, export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.
tanks welding
All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing.
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar.
Closed grant system improves runoff performance.
Variable speed drives on pumps, motors and agitators.
Stainless steel work platform for integrity, no rusting and long life.
Combination:
2-vessel:mash/lauter tun+boiling/whirlpool tun
3-vessel:mash/lauter tun+boiling tun+whirlpool tun
mash tun+lauter tun+boiling/whirlpool tun
mash/boiling tun+lauter tun+whirlpool tun
4-vessel:mash tun+lauter tun+boiling tun+whirlpool tun
Optional:hot water tank
All tank customers can combine freely according to their needs.
it can be steam heating,electric heating and firect fire heating.
The three heating methods characteristics:
Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
Electric: Use electric heaters in jacket to heat the medium in the jacket;
Direct fire: Use gas burner at bottom to heat tank directly.
If you choose steam heating,you need a boiler. There are gas/diesel/electric boiler. Customers can choose according to their needs.
For 1500L mash system of brewery equipment,we recommend mash/lauter tun+boiling/whirlpool tun+hot water tank.
Mash/lauter tun:
Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring, anti-rinser
With side grain out door
Tank light assemblies
Mash hydration assembly
Rotary CIP spray balls
Level sight tube
Boiling/whirlpool tun:
Steam vent with condensate ring for kettle stack
Tank light assemblies
Rotary CIP spray balls
Tangential whirlpool entry
Level sight tube
Hot water tank:
Steam Jacket heating/direct gas fired heating/electric heating
Sight gauge for water level
Mash system accessories:
Wort pump:
Sanitary wort pumps with variable speed control
Plate heat exchanger:
SUS304/316 two plate, with wort aeration system
Operation platform:
stainless steel 304 compliant platforms with safety railings & stairs, Cellar package with brewers hoses, valves and fittings.
plate heat exchanger&wort pump
stainless steel operation plateform
the mash system is working&raker with motor

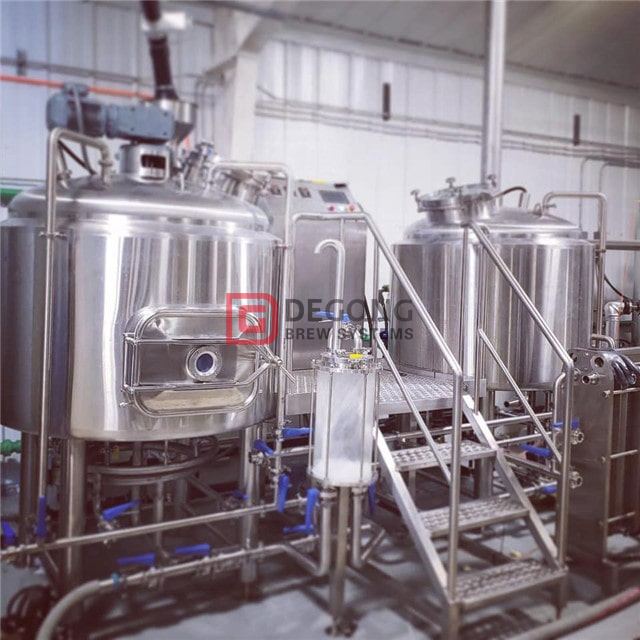

mash system details
If you are interested in DEGONG brewery equipment, please feel free contact to me.
