DEGT-1500L
DEGT
8438400000
The fermentation system includes fermentation tanks(FV), Bright beer tank(BBT) and some accessories. Beer fermentation is a complex material transformation process. The main metabolites and fermentation byproducts of yeast:-ethanol and carbon dioxide-alcohols and other substances. These fermentation products determine the physical and chemical properties of beer, such as flavor, foam, color and stability, and give beer with typical characteristics. Because of the different yeasts used, beer fermentation can be divided into two types: top fermentation and bottom fermentation. The top fermentation type beer uses top yeast and a higher fermentation temperature of 16-22°C; The bottom fermented beer uses the bottom yeast and a lower fermentation temperature of 7-12°C.

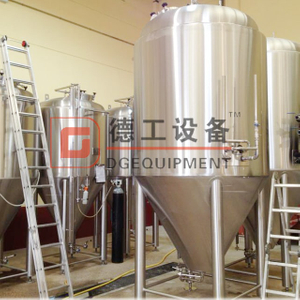

Fermentation system
Double wall stainless steel tank, Grosse capacity: 1250L; Useful capacity : 1000L
Inner(SUS304) TH=3.0mm, Outer(SUS304) TH=2.0mm, External-Jacket(SUS304) TH=1.5mm
Equipment with: cone 60° resist compression design, dripping
100％ TIG welding with pure argon gas shield
Interior full polished to 0.6μm without dead corner
Insolution with high desity Polyurethane foam 100mm
Glycol jacket: Dimpled plate on cone and side
Accessories: butterfly valves, sample valve, spray cleaning ball, raking arm, breather valve, pressure gauge, thermometer gauge etc.

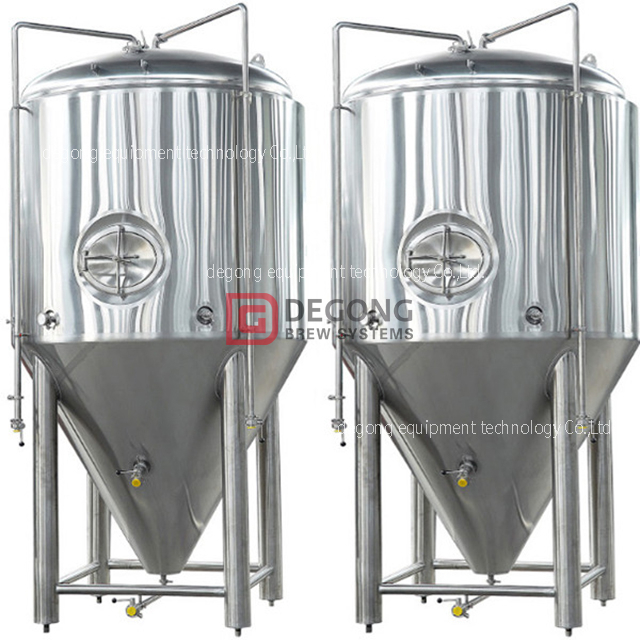

1000L Fermentation tank details
Useful capacity: 30L. Adopts SUS 304 fine polished process, outsider SS polishing, have three connection mouths. Adding yeast sight glasses, aseptic air mouth, and wort pipe connection mouth.
Material Inner (SUS304)TH= 3.0mm; Outer(SUS304)TH= 2.0mm；External-Jacket(SUS304) TH=1.5mm;
Oval head cone bottom TH=3.0mm.
Surface: Finish 2B – cold-rolled, annealed
Inner surface treatment: welds grinded to Ra 0.6μm (attached 360 degree Omni cleaning ball).
Mirror surface finish inside.
Insulation: Polyurethane-thickness:100 mm.
Equipment with : cone 150°resist compression design，
Vessel Pressure:1.5 bar / 3.0 bar
Glycol Jacket: Dimpled plate on cone and side
Accessories: butterfly valves, top manhole, temperature probe, CIP pipe, sample valve, legs and adjustable foots.
Bright beer tank details
control system
If you want to build a brewery, please contact me freely.
