DGET-5BBL
DGET
8438400000
| 500L microbrewery equipment |
Microbrewery is more and more popular around the world. Many beer fans want to start home brewery, enjoy their life sharing own beer with family and friends, some home brewer plan to expand to commercial brewery of a brewpub or mini plant after years of experience, and some experienced brewer want to start own business after years' working in the big brewery company, and for the microbrewery have plan to expand the production for thes popular of their tasty beer, anyway, we are your good choice to work together for your micro brewery dream.
Brewhouse system with wort grant tank
Brewhuse system standard Features:
7BBL/10BBL/15BBL/20BBL/30BBL or customized
Mash Lauter Tun with grist hydrator
Kettle Whirlpool Tank with heating jacketed
Wort Grant Tank
Stainless steel Platform
Plate Heat Exchanger(single or two-stage)
Sanitary Wort Pump x2;
Wort Oxygenator;
Semi-Auto Control Panel;
Interior surface to finish pickled and passivated
Exterior surface to brushed, #4 finish
Interior surface to polished to Ra≤0.22μm
Heating Source:
• Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
• Electric: Use electric heaters to heat the tanks;
• Direct fired: Use gas burner at bottom to heat tank directly;

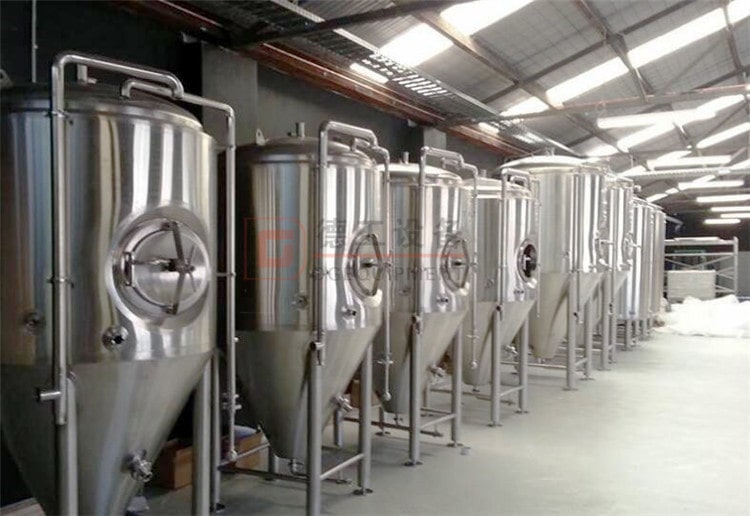

A row of beer brewery fermentation tanks/unitanks
| Outside surface | Red copper or stainless steel ,THK:2mm |
| Inner surface | S.S.304,THK:2mm-4mm |
| Top shape | Seal head or conical head |
| Heating method | Electricity/direct fire/steam heating |
| Insulation layer | Protected by polyurethane ,THK:100 mm |
| Polishing precision | ≤0.4µm |
| Manhole | Side or upside |
| Spral ball | In the center of the inside tank.Rotate |
| Agitator | Raking system conneted into a top reducer |
| Chimney | On the top of the tank |
| Processing | Argon-arc welding |
Our engineers can make a reasonable layout for your project according to your actual floor space. The whole equipment generally includes the following parts: water treatment (if the beer quality requirements are very strict, it needs to be equipped), crushing system (pulverizer, malt elevator, storage tank), brewhouse (mash, lauter, boiling, whirlpool),Plate heat exchanger(cooling wort),Fermenting(Primary fermentation)+Maturing(Second fermentation,and mature)，Filling system:keg washer&filler;bottle,cans
The beer brewing process
PRODUCT FEATURES:
1)Desiging tanks and heating system according to craft, mash tank warming≥10ºC/min
2)Energy saving stir structure : large cross-section impeller, 15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4)Wort boiling heat way includes steam jacket, interior heating and exterior heating.
5)Material includes stainless steel 304, 316 and red copper
| Contact information |
Ready to Get Started Building Your Dream brewery?
Contact Alice Today!
