DGET-500L
DGET
8438400000

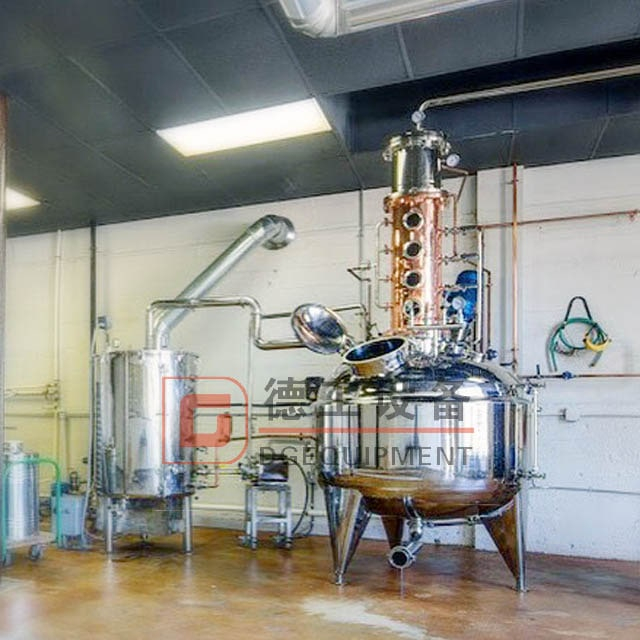

This still equipment is to make whisky. The pot inner body is copper, wall thickness is 3mm; Made by sandwich water bath electric heating, with 3*10KW electric heating rods;Equipped with explosion-proof stirring motor; The pot outer body is outsourced to make fish scale board.
1.Pot body: The inner tank is copper, wall thickness is 3mm; Made by sandwich water bath electric heating, with electric heating rods;Equipped with explosion-proof stirring motor; The pot outer body is outsourced to make fish scale board.
2.Copper whiskey cone head; wall thickness 3mm;
3.Material: Red Copper/SUS304 For Choose
4.Heating Method: By Steam/Electrical Heating Elements
5.Motor Voltage:110/208/220/240/380/400/415/460V 3phase 50/60HZ For Choose
6.With a column of 10 inches and 4 layers of copper towers, (5 mirrors), with a copper dephlegmator;
7.With stainless steel GIN basket;
8.With stainless steel condenser;
9.With CIP cycle cleaning device;
10.With support (Fish scales)
11.With manual electric control box
We Can Produce All Kinds Of The Stills For The Different Spirits according To Customer'S Request
500L distillation equipment details
Top of pot With Whole Glass Manway,Inlet,Safety Valve, Thermometer,Pressure Gauge And Liquid Return Back Hole. Top with agitator can be used to distill any wash,even washes full of fruit pulp or grain mash can heated in this configuration of boiler without any risk of burning on bottom of pot.Also,By constantly agitating the wash throughout the distillation run,the distillery can save 20% On the heating required to perform the distillation.
It can also be used as distiller for grape fermented mash, hydropericarp residue, potato (vodka, sugar cane (rum wine), liquor fermented mash, etc. High purity copper plate or stainless steel plate . it can be operated by steam direct or indirect heating distillation.
still pot
1.Stainless steel/Red Copper insulated steam kettle.
2.Copper dome and helmet for optimal vapor contact.
3.High pressure clean-in-place system throughout.
4.Agitator and drain.
5.All Copper Column/Stainless Steel Column
6.Fully adjustable bubble plates.
7.Sight Glass, CIP and Themometer at every plate.
8.Stainless Product Condense
distillation equipment details
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
4.Transportation mode: ocean, railway or air transportation.
If you are interested in DEGONG equipment, get in touch with me freely.
