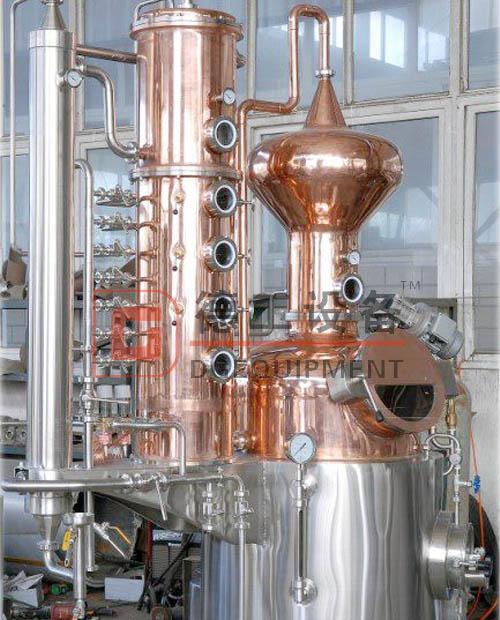

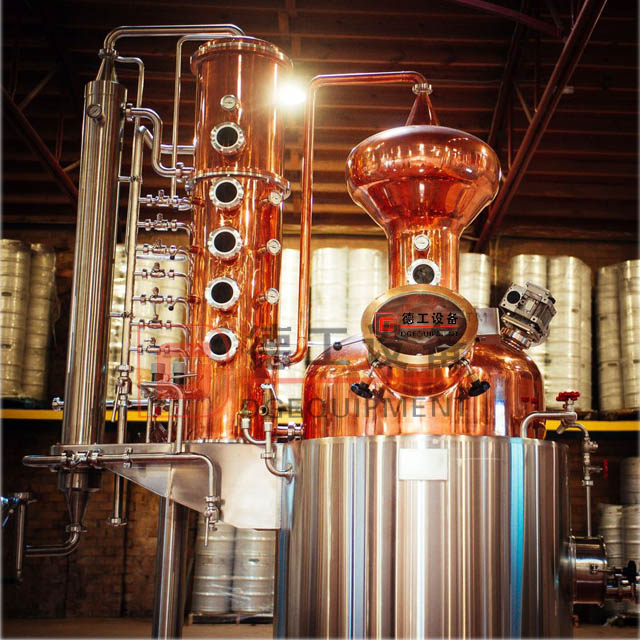

DEGT-1000L
DEGT
8438400000

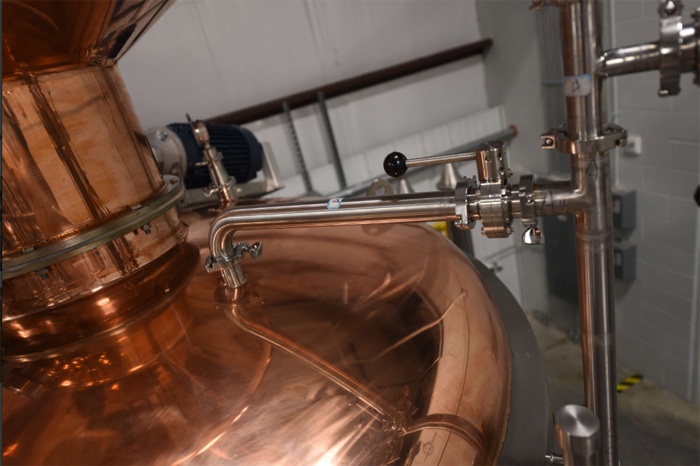

Pot
Material: Stainless Steel 304, Red Copper T2
Type: 1. single layer ; 2. with heating jacket only; 3. with heating jacket & PU insulation.
Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc.
Agitator
Material: Stainless Steel 304, Union Connection, easy to installtion.
Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request,
Motor is CE/ UL / CSA approved, with Explosion proof.
Goose Neck / Vapor Chamber
Material: Stainless Steel / Red Copper
Have different shape for opition.
Gin Basket/ Botanical Basket
Enhance flavor and extended the range of your system.
For making Gin, Schnapps, etc.
Material: Stainless Steel/ Red Copper
Inside with removable filter basket, have different shape for opition.

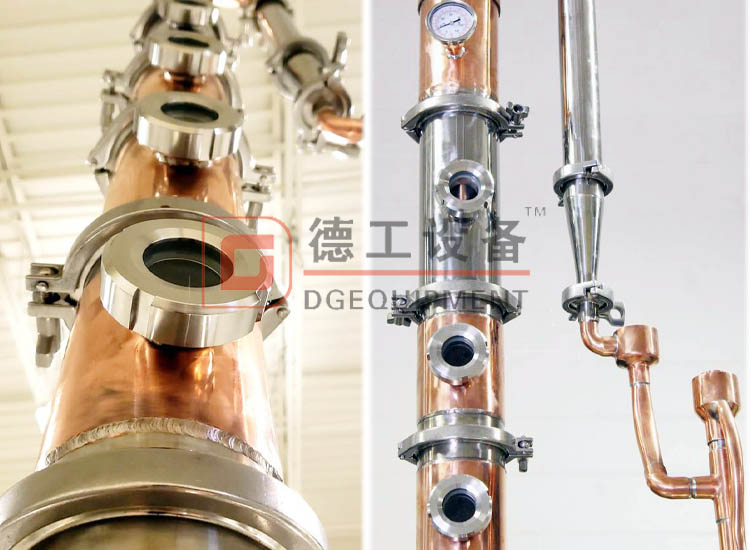

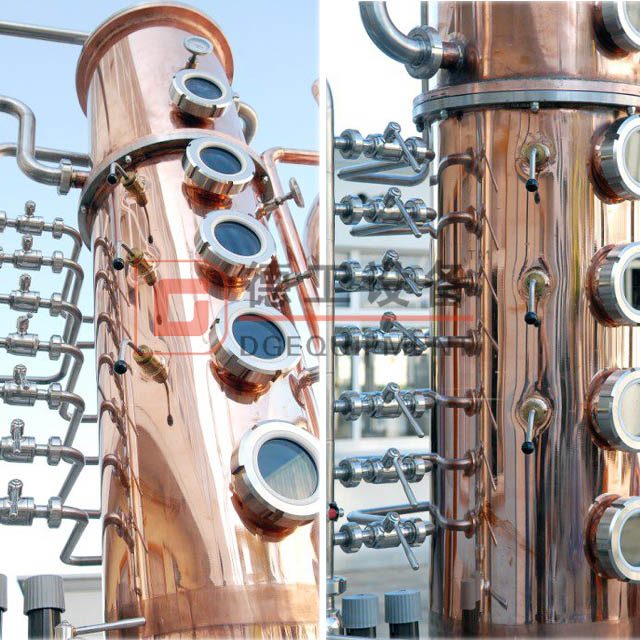

Distillation Column
We can tailor the height and plate number for your specific application.
The max height of column can reach 2000mm, up to 10 plates within a pair of flange.
For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates
Bubble Tray / Bubble Cap
The bubble tray intergrated within a tightly embedded inner shell, to avoid welding scar around the column.
Bubble caps and screw are made of red copper, the screw with a no dead corner design, can 100% meet sanitary stand.
The bubble cap have 6 size: DN26/ DN38/ DN45/ DN52/ DN65/ DN76
Dephlegmator
A chilling apparatus (condenser) at the top of the reflux column.
It's comprised of a bank of tubes with cold water running through them. This increase reflux, and the purity o f the distillate.
Material: Red Copper / Stainless Steel 304L
Structual tube type heat exchanger, with cooling water inlet and outlet
with a sight glass (optional) and thermometer in the top.
Condenser
A heat exchanger in which hot vapors are cooled and condensed into liquid.
Material: Red Copper / Stainless Steel 304
Structural tube type heat exchanger; with cooling water inlet and outlet.
With a thermometer.
for stainless steel condenser, the surface can finished as scaled.
Parrot Outlet
Material: Stainless Steel 304/ Glass/ Red Copper
Can supply different shape of spirit safety according to customer's request.
CIP Pump & Pipe Fitting
All stainless steel 304 pipe fitting with a Ex-proof centrifugal pump (UL/ CSA/ CE )
Have Hand Valve and Automatic Valve for opition.
Support leg
All support are made of stainless steel 304
Can shaped as customers request.
Alcohol Collecting Tank
Used for storage spirit of head, heart and tails.
Can do as different shape.
Structure: Single layer
Distillation Gin
If you have interest, please contact with me any time.
