| Insulation: | |
|---|---|
| output: | |
| Cooling Jacket: | |
| Quantity: | |
DEGONG 500L
DEGONG
8438400000
| Brewhouse configuration: |
Various combination of brewhouse
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc.
2 Vessel Brewhouse
Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3 Vessel Brewhouses
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun
4 Vessel Brewhouses
Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool
| Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
| Laser cutting V-wire False Bottom | ||
| Easy clean and detachable sparging spray ring | ||
| Steam Jacket heating | ||
| Boil /whirlpool tun | Steam Jacket on bottom | |
| Steam vent with condensate ring for kettle stack | ||
| Hot liquor tank | Steam Jacket heating |

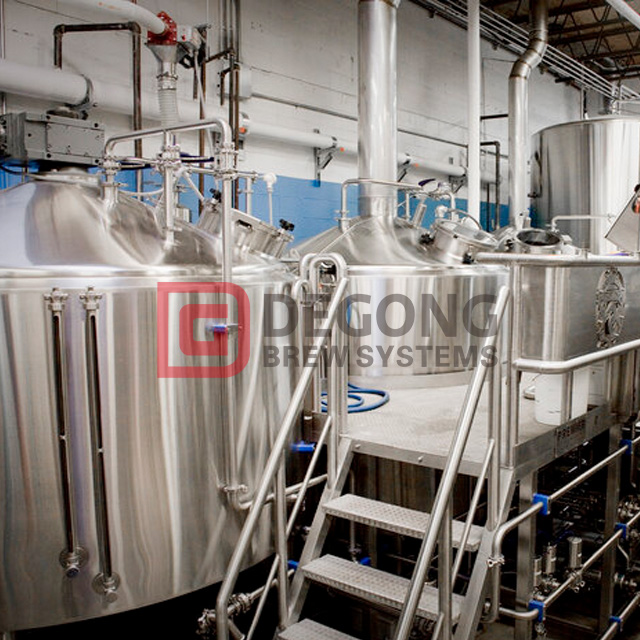

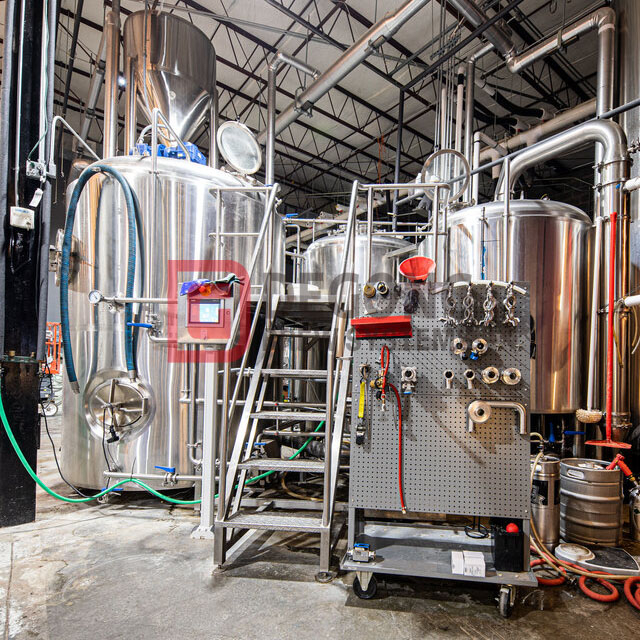

Mash tun brewhouse with hopper stainless steel material
| Fermenters for craft beer brewing equipment: |
Function: Use for keep wort fermentation or maturation.
Component: It is consisted of Shadowless manhole, spunding valve, Aseptic valve, Pressure gauge, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
Capacity: effective volume is 100L-500HL, 1BBL-500BBL
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water or alcohol water.
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).

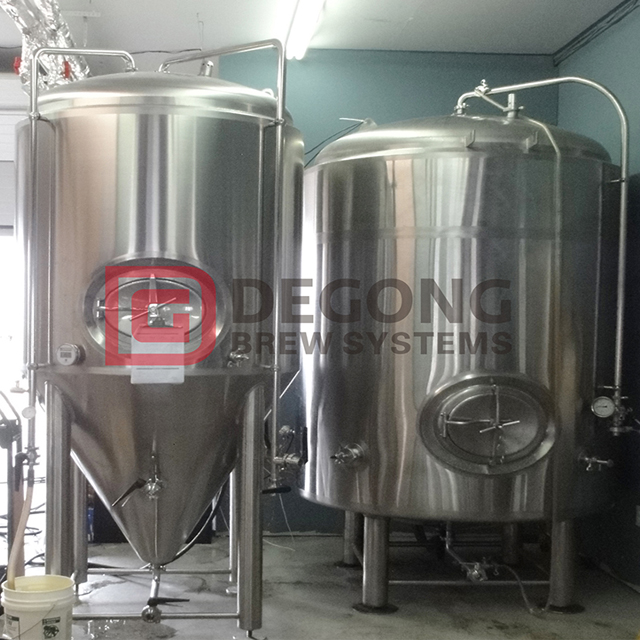

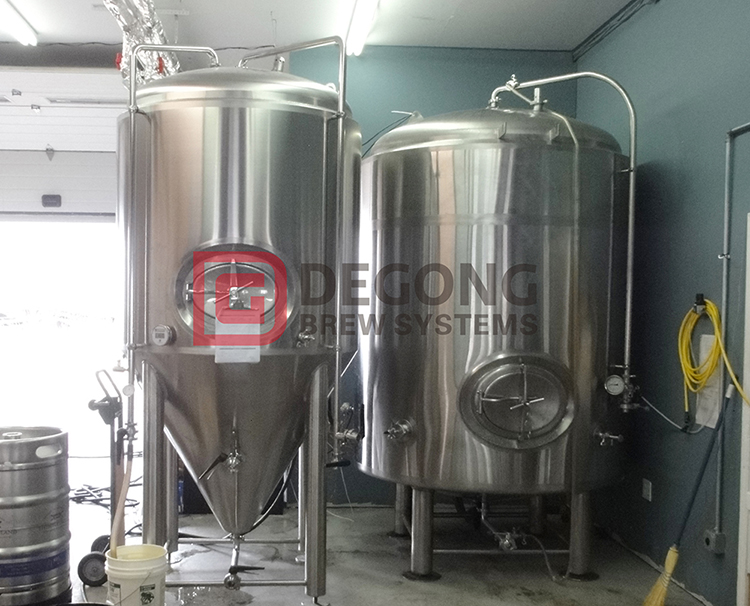

Beer fermenting vessel and bright beer tank
| BBT for craft brewery beer maturation and storage: |
Function: After fermenting, beer will be stored in BBT for carbonation and serving.
Component: It is consisted of Shadowless manhole, Mechnical relief valve, Aseptic valve, Pressure gauge, spunding valve, Butterfly valve, Solenoid valve, carbonation stone and etc.
Capacity: effective volume is 100L-500HL, 1BBL-500BBL
Cooling method: dimple plate or glycol cooling jacket around tank.
Cooling media: glycol water or alcohol water.
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized).

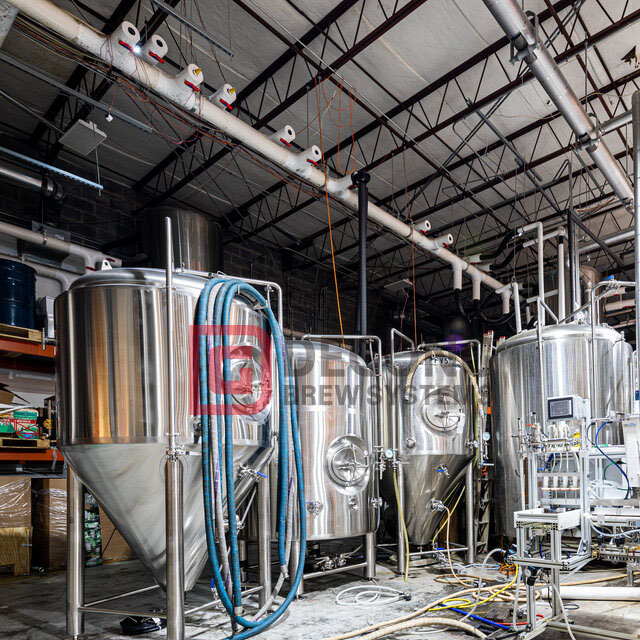

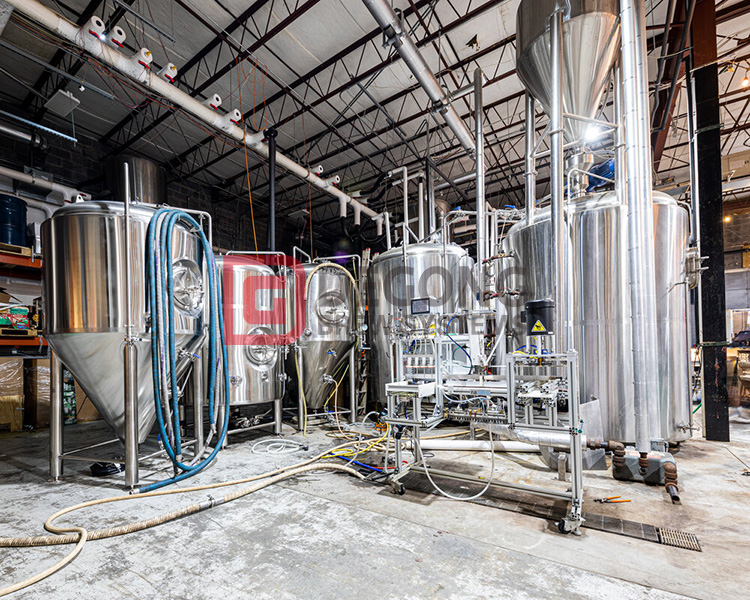

Brewery fermenters and brewing systems
| Transport & Service |
Packing & Shipping of beer brewery equipment:
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
4.Transportation mode: ocean, railway or air transportation.
Service & Guarantee
1. Free charge for consultation service before, during, and after sales.
2. Our professional engineers and technicians can customize the equipment, and we can provide beer production technology and brewing formula, equipment design, installation and debugging, and personnel training service;
3. Provide 5years complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxuliaries facilities are guaranteed for one year.
