| Thickness of material (mm): | |
|---|---|
| Size: | |
| heating method: | |
| Quantity: | |
500L
DEGONG
8438400000
500L Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such beer breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery (mini brewery) with the productivity of 500L (5hl) to 3500L (35hl) per brew.
The service includes: complete set of microbrewery equipment, turn key installation, recipes, free training. The performance of your Microbrewery (Brewery and mini brewery), can be also expanded in the future.
Craft beer is more and more popular with people because it has yeast left and is good for digest. So many microbreweries are set up. Want to set up your own brewery and design your own beer equipment? Please follow us.
500L Hotel Craft Beer Brewing Equipment Specification
| Output/Brew | 500L |
| Brew/Week | 2~6 |
| Output/Week | 10HL~30HL |
| Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz Single Phase/ 220(110, 240…)v/50(60)Hz |
| Heating Source | Steam/electric |
| Area Request | >50M2 |
| Brewmaster | 1 |

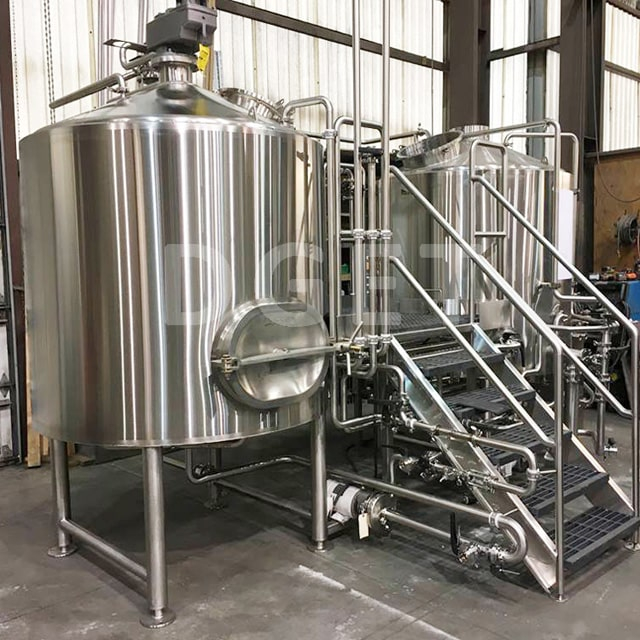

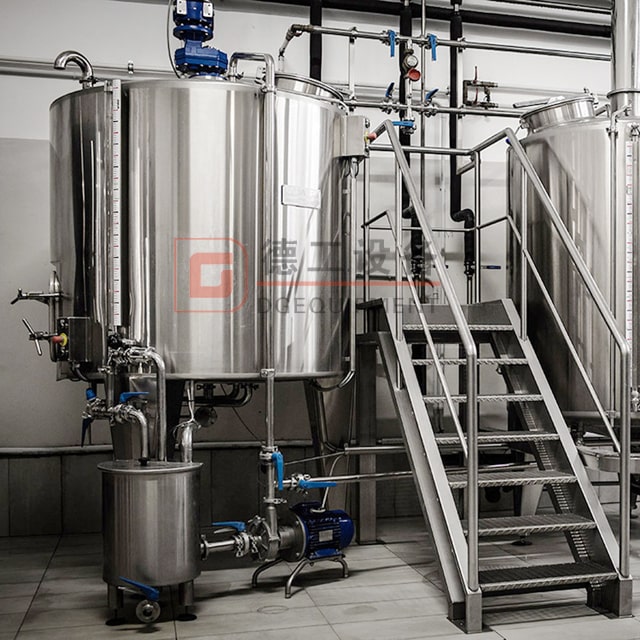

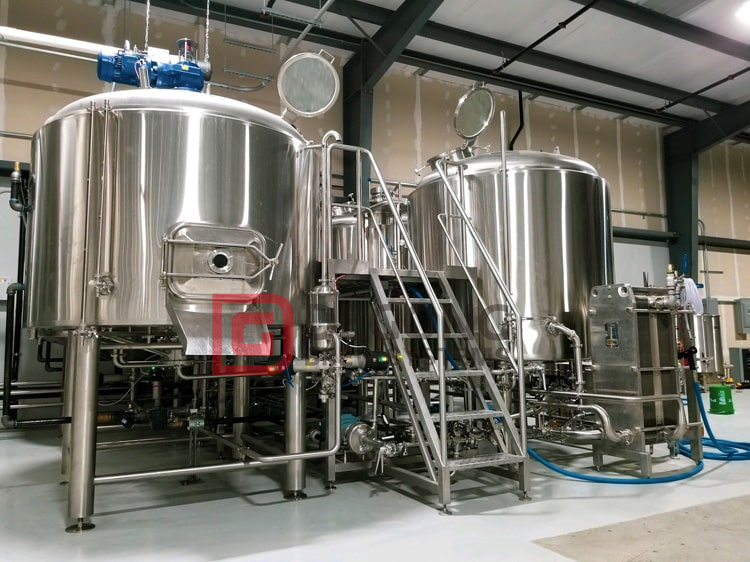

2 Vessel beer brewing equipment 500L
500L Hotel Craft Beer Brewing Equipment Configuration:
| General specification for 500L brewery equipment | ||||
| No. | Name | Components | Capacity | Specification |
| 1 | Grain Milling Unit | Rolling Miller | 300~500kg/hr | Double roller |
| Power:1.5Kw | ||||
| Noise:45±3db | ||||
| 2 | Brewhouse Unit | Mash/Lauter & Whirlpool tun | 500L (total 650L) | Side mounted grain outdoor with grain chute |
| Tangential whirlpool inlet | ||||
| Laser cutting V-wire False Bottom | ||||
| Kettle Tun | 500L (total 650L) | Steam heating | ||
| Sanitary leveling sight glass | ||||
| Yeast feeder | 30L | Tri clamp aeration port with ball valve | ||
| Heat exchanger | 6M2(Effective area) | Completely 304 SS Corrugated plates | ||
| wort pump | 3t/h | ABB, Sanitary SUS304, VFD control | ||
| Pipe and fittings | As design | completely SS304, Work Platform is included | ||
| 3 | Fermentation unit | Fermenter | 1000L(total 1300L) | Dimple cooling jacket on cone and bottom |
| Side manway | ||||
| 60 degree cone bottom | ||||
| Tri clamp CIP ball | ||||
| Perlick style full sanitary sampling valve | ||||
| Carbonation port and level tube for special request | ||||
| 4 | Filtration unit(optional) | Plate-frame Filter | Max Flow: 1.5T/h | Power: 1.1kw |
| Cloth type, 10 layer | ||||
| Different material will be different for the flow | ||||
| 5 | Bright beer tank | Bright beer tank | 1000L(total 1300L) | Dimple cooling jacket on cone and bottom |
| Level tube for checking | ||||
| Tri clamp CIP ball | ||||
| Top manway | ||||
| Perlick style full sanitary sampling valve | ||||
| Carbonation port with tri clmap carbonation stone | ||||
| 6 | Glycol Chilling Unit | Glycol Water Tank | 1500L(total 1650L) | Insulated conical top and sloped bottom |
| Chiller | 8HPx1PC | Cooling Capacity: 15400Kcal/8HP | ||
| Installed Power:7.6kw | ||||
| Refrigerant: Freon R404A ,R410A | ||||
| Noise:70-80db | ||||
| Coperland compressor | ||||
| PVC pipe | As designed | Solenoid valves for glycol inlet to tanks are included | ||
| Glycol water pump | 3t/h | Sanitary SUS304, VFD control | ||
| 7 | Control unit | Brewing and fermetation process Controlling | Floor type | PLC control with touch screen for special |
| PC or mobile remote control for special request | ||||
| 8 | CIP | Caustic Tank | 100L | electric heating element inside, With bimetal thermometer |
| Sterilization Tank | 100L | H2O2 | ||
| Pump | 3t/h | VFD control | ||
| 9 | Keg cleaning | 2 head | 20-30kegs/hr | Heating: Electric, Power: 15kw |
| 10 | Keg filling | A coupler | Manual | Coupler for filling beer |
| 11 | Bottling line | 4 head | 160-180 bottles/hr | Manual |
| 12 | Others | Option | Can be Customized | Auger System |
| Grain Case | ||||
| Grist Hydrator | ||||
| Piping flow panel for Brewhouse | ||||
| Brewhouse Separate PLC Controller | ||||

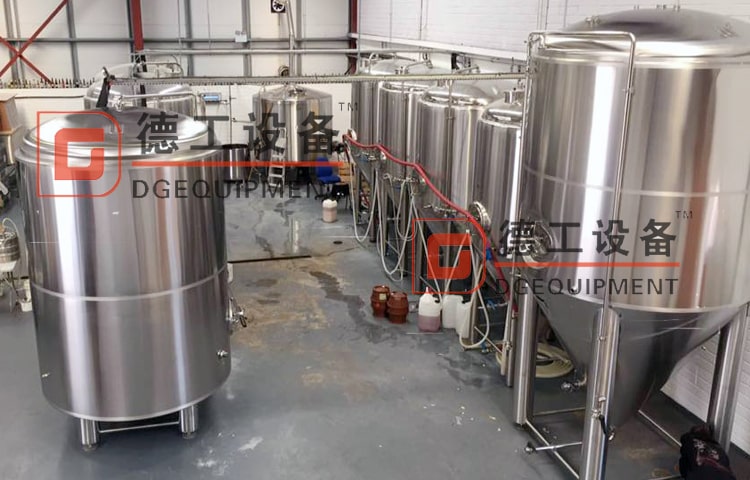

Fermenting vessel beer brewing equipment
Fermentation tanks lifting lugs
Thermometer and bunging valve
