3BBL Stainless Steel Micro Brewery Equipment Small Scale Home Beer Brew Tanks for Sale is popular for small scale brewery or hotel/restaurant.All of the details can be customized according to customer's requirement.All of the electric element will choose famous brand......
Beer brewing equipment can be designed according to the requirements of different brewers.The whole set commercial used beer brewing equipment includes miller, mash system, fermentation system, cooling system, control system, cleaning system, filtration system, sterilizer, filling line (bottle, barrel, can), packaging.
The two most important steps in beer production are beer mashing and fermentation.So let's focus on the equipment needed for these two parts.

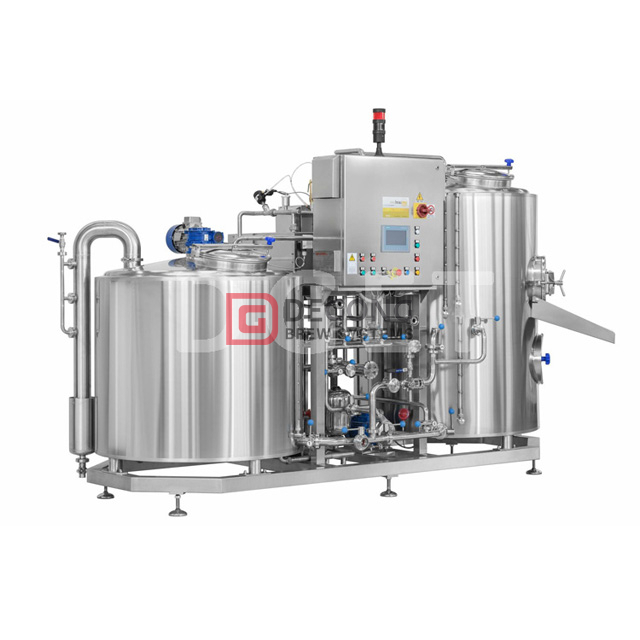

|Specifications of beer brewhouse|
Milling: 2-roller or simplified 4-roller
Mash &Lautertun: Brewing &sparging water blending port, VFD rake, with wort grant, mash hydrator, etc
Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
Hot Liquor Tank: Steam heating, direct burning or immersion electric heating.
Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc
Cellars: Singe, double or multi-time brew size fermenters and BBT
Cellar Control: Automatic Temp. control with solenoid valves
Portable CIP cart: with 1 electric immersion Heating caustic tank, automatic Temp. control and 1 pump, etc
1.A brewhouse consists of all the components, or vessels, a craft brewery needs for the initial brewing stage. It typically includes a mash tun, lauter tun, boil kettle, whirlpool, hot liquor tank.
2.A two-vessel brewhouse is often made up of combinations of a mash/lauter tun and boil kettle/whirlpool tun, while a larger, more advanced three,four five-vessel system separates these components.
Mash/Lauter Tun+ Boil Kettle/Whirlpool Tun+ Hot Liquor Tank
Mash/Lauter Tun/Whirlpool Tank Combine Vessel+ Kettle Tun
Mash/Lauter Tun/Hot Liquor Tank Combine Vessel+ Boil Kettle/Whirlpool Tun
SUS304,SUS316 or Red Copper
SUS,Mirror SUS, Luxury Red Copper
Polyurethane or Rock Wool
CE,UL and ISO
Temperature, Pressure Auto Control/ PLC, HMI or Touch Panel
3Phase/380(220, 415,440…)v/50 (60)Hz

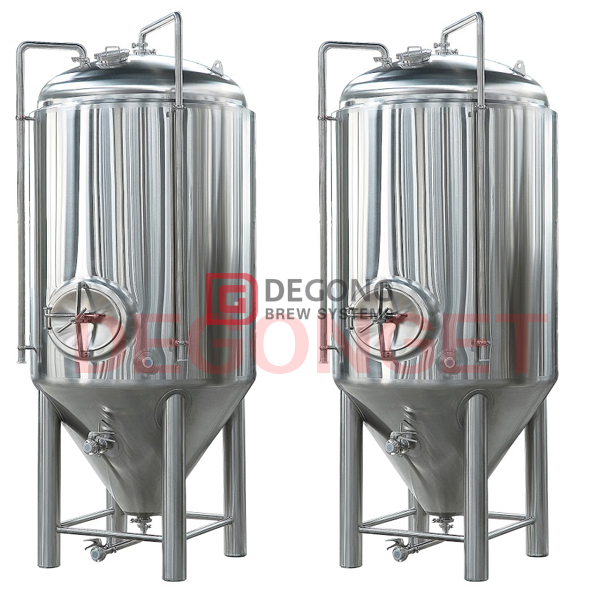

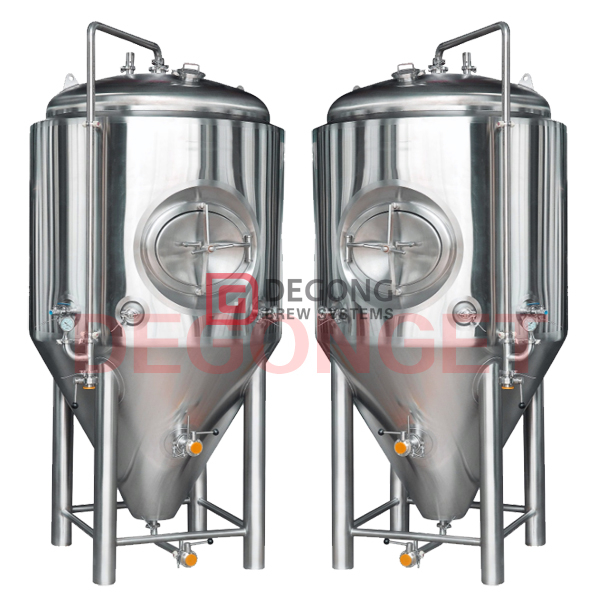

|Specifications of fermentation tank|
- Certified Stainless Steel material
- Sanitary construction seams with sanitary interior polish
- Inspected and pressure tested to 2 times operating pressure
- Insulated with high efficiency polyurethane foam
- Name-brand, high-quality valves and fittings included with every tank
- Quality TIG welding: For piping, quality TIG welding with sanitary interior shapes
- 130% overhead space, heat insulated; separate glycol jackets on body and cone; 60° cone bottom, dished top head; Side man-way: 450mmx350mm;
All hygienic parts:
- Hop port on top
- PVRV and pressure relief valve
- Perlick style Sample valve
- Rotating spraying ball
- Qualified butterfly valves
- Racking arm
- Pressure gauge
- Height adjusting foot pads
- Separate CIP arm and blow off arm
|Our equipment shows in customer's brewery|
1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.
2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.
3.How to see if your company is trust?
We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.
4.How should we do if we don’t know how to brew beer and install equipment?
We will dispatch engineer to install equipment and teach you how to brew beer freely.
If you have interest,please get in touch with me freely.
