DGET-300L
DGET
8438400000
The distillery equipment included: the well-designed head, which is perfect for aroma distillation, with the screwed on swan neck, a spacer, and a generously sized condenser with cool water intake and drain. The newly designed still provides a well-formed head which allows the vapor to circulate better, an improved refining lentil with an effective integrated copper coil and an additional water drain.
Type | Component |
Whisky Distillery Equipment | Still pot,Swan neck,Condenser,CIP,Pipe System |
Vodka Distillery Equipment | Still pot,Onion head,Column,Dephlegmater,Condenser, Pipe System |
Brandy Distillery Equipment | Still pot,Onion head,Column,Dephlegmater,Condenser, Pipe System |
Rum Distillery Equipment | Still pot,Column,Condenser,CIP, Pipe System |
Gin Distillery Equipment | Still pot,Column,Gin Basket,Condenser,CIP, Pipe System |
Multi-Spirits Distillery Equipment | Still pot,Column,Onion head,Dephlegmater,Gin Basket, Condenser,CIP, Pipe System,Collecting Tank |

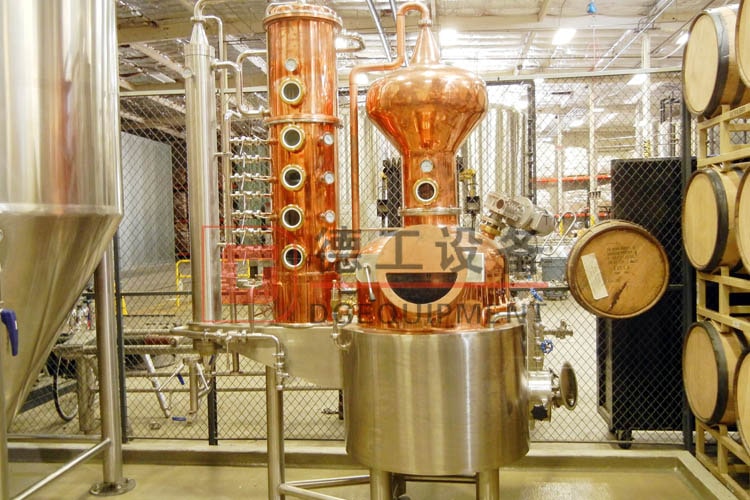

red copper distillation equipment
Still Pot
Useful Capacity: 300L
Stainless steel/Red Copper insulated steam kettle.
Copper dome and helmet for optimal vapor contact.
High pressure clean-in-place system throughout.
Agitator and drain.
All Copper Column/Stainless Steel Column
Fully adjustable bubble plates.
Sight Glass, CIP and thermometer at every plate.
Stainless Product Condense
Accessories: CIP cleaning ball, thermometer,PRV, material inlet,pressure gauge, agitator motor
still pot
Spirits head
Material: red copper
Thickness: 3.0mm
Spirits basket
Material: Stainless Steel 304
Thickness: 3.0mm
Dephlegmator
Tank materials: Stainless Steel 304
Thickness:3mm
Shell and tube type
Column
Material: red copper
Thickness: 3mm
Red copper tubes,bubble caps, CIP cleaning balls, sightglass, clean valve, etc

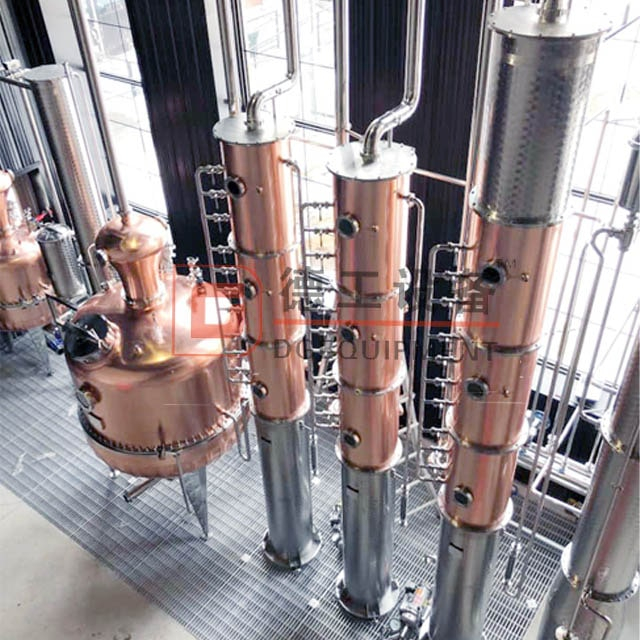

12plates sus bubble column for vodka
Together with:
Condenser
Collecting tank
Electric control cabinet
CIP system
stainless steel distiller details
red copper distiller details
If you are interested in DEGONG distillation equipment, get in touch with me freely.
