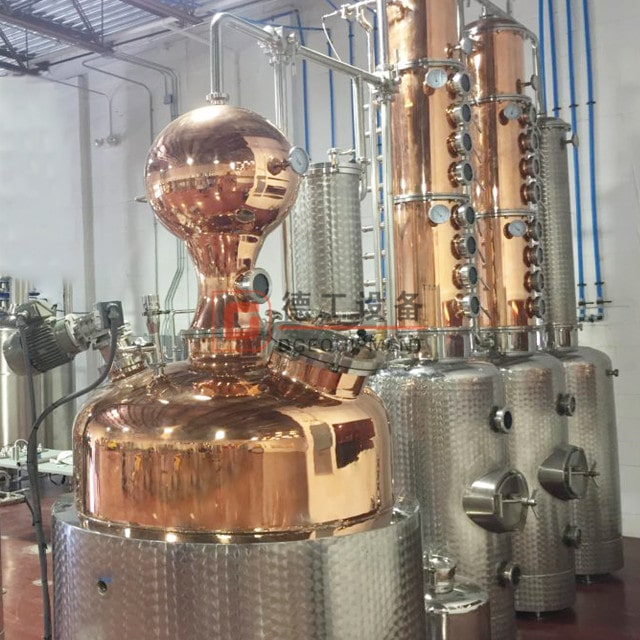

500l jacketed, steam heated vodka still stainless support and copper column

This still will produce great Whiskey, Vodka and everything in between. This Still comes with one Copper Column and one Stainless Column. The individual Plate Drain Valves in the 4 Plate Copper Whiskey Column can be opened or closed allowing for better control of flavor profiles and proof. The Dephlegmator at the top of the Whiskey Column is used to Control Proof. The Stainless Steel Vodka Column has 12 bubble plates and a Dephlegmator in the top. This Still will produce 190 proof Vodka in two Runs. The 4 plate Whiskey Column will produce up to 160 proof in one run. For the Vodka run, you must distill the product from the first run through both columns. This Still can be heated by a Low Pressure Steam Boiler, self contained, jacketed, heating system.

This 500L Still is 3.5 tall. The width of the Still including the condenser is 1.6m. This Still is great for producing: Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket) and Vodka.

Pot still and head/tail tank/storage tank

This 500L Vodka Still comes Standard with:

500L Operating Capacity 304SS Stainless Steel Boiler

2hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator:

Clamp Down Manway

Sight Glass in the Manway

Pressure Relief Valve on the Inner Boiler

Vacuum Relief Valve on the Inner Boiler

ASME Pressure Relief Valve On the Jacket

Steam Jacket

Insulation Jacket

Tri Clamp Butterfly Valve on the Drain

Whiskey Column with 4 Bubble Plates on the Still

Tube & Shell Dephlegmator on the 4 Plate Whiskey Column

(4) 4" Sight Glasses in the Whiskey Column

4 CIP Spray Balls in the Whiskey Column (1 above each plate)

4 Plate Drain Valves

Check Valve in the Drain Return Line

Stainless Vodka Column with 12 Bubble Plates

Diameter Tube & Shell Dephlegmator on the 12 Plate Offset Vodka Column

(12) Sight Glasses in the Stainless Vodka Column

12 CIP Spray Balls in the Vodka Column (1 above each plate)

12 Plate Drain Valves

Drain Return from the 12 Plate Vodka Column to the Still Boiler

Check Valve in the Drain Return Line

2 CIP Spray Balls in the Boiler

Thermometer above the Dephlegmator in the Whiskey Column

Thermometer below the Dephlegmator in the Whiskey Column

Thermometer above the Dephlegmator in the Vodka Column

Thermometer below the Dephlegmator in the Vodka Column

0°F to 250°F Thermometer on the inner Boiler

 Tube and Shell Condenser

Stainless Parrot's Beak

Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.

Mirror Polish on Copper and Stainless

Inner Boiler Has a Mirror Polish

The distillery can produce various types spirits

Options:

Heating System With Controller

Upgrade to an Manway

Extra Thermowell in The Columns for a Temperature Probes

Extra Thermowell Above the Dephlegmators for a Temperature Probe

CIP System With Plumbing and Pump

Gin Basket Just Before The Primary Condenser

Agitator and motor on the pot still

Glass column or copper column

Payment Terms:

40% Payment due when ordering equipment.

60% Payment plus shipping due when equipment is ready to ship.

Fix it with an iron frame, package and transport in a wooden box

DEGONG provides distilling equipment and complete distillery systems: everything you need to start your own distillery, including small to large product-specific stills, tanks for mashing, fermenting, and mixing, and equipment for heating and cooling. We can outfit you with a complete system and teach you how to use it.
