DGET-300L
DGET
8438400000
300L brewery equipment configuration
If you just want to investigate the market or plan to open a small brewery, you can check the configuration of this set of 300L beer equipment, which is very suitable to start from here.

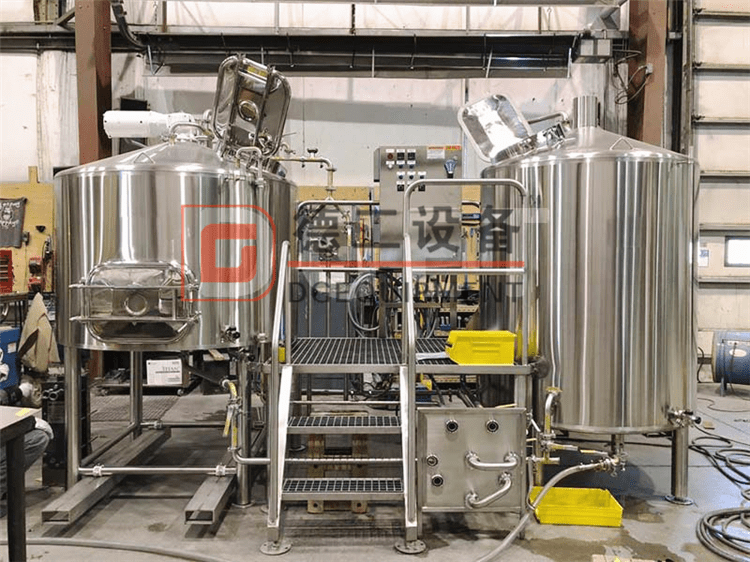

300L mini brewing equipment with working platform
| A. Milling system | Miller | 1. Production capacity: 100Kg/h; 2. Power supply: 380V, 50HZ. |
| B. Brewhouse system: | 01 mash/Boiling Tank | 1. Volume: effective volume 300L; 2. Material thickness: SUS304 stainless steel plate, thickness 3mm; stainless steel outside, thickness 2mm; 3.Dished head stainless steel, thickness 3mm; 4. Insulation: polyurethane insulation; 5. Stirring: mechanical stirring; 6. Cleaning: CIP cleaning device; 7. Heating method: steam heating; 8. Exhaust steam method: indoor exhaust Steam setup or outdoor exhaust. |
02 Lauter/whirlpool tank
| 1. Volume: effective volume 300L; 2. Material thickness: inner tank is made of SUS304 stainless steel plate, thickness 3mm; outer stainless steel, thickness 2mm; 3.Dished head stainless steel, thickness 3mm;4. Insulation: Polyurethane insulation layer; 5. Stirring: Stirring with mechanical cultivator; 6. Cleaning: CIP cleaning device; 7. Filtration: Sieve plate, natural filtration or suction filtration. | |
| Others | Operating platform, electric steam generator, plate heat exchanger, wort pump, oxygenation device, measuring cylinder, rake,mashing pipeline valve, etc. | |
| C. Fermentation system | 6 fermentation tanks | 1. Volume: effective volume 300L or 600L; 2. Material thickness: inner tank is made of SUS304 stainless steel, thickness 3mm; outside stainless steel, thickness 2mm; 3.Dished stainless steel head, thickness 3mm; 4. Insulation: Polyurethane insulation layer; 5. Cone design: 60° lower cone compression design; 6. Cooling method: stainless steel dimple jacket cooling; 7. Cleaning: Equipped with washing L pipe, CIP set cleaning device; 8. Manhole: top manhole/side manhole |
| Auxiliary equipment: sampling valve, cleaning ball, cleaning valve, drain valve, mechanical pressure regulating valve, pressure gauge, solenoid valve . Yeast tanks, beer hoses, fermentation pipeline valves, etc. | ||
D. Refrigeration system | Glycol tank | 1. Volume: effective volume 1000L; 2. Material thickness: the inner tank is made of SUS304 stainless steel plate with a thickness of 3mm; the outer layer is stainless steel with a thickness of 2mm; 3. Insulation: Polyurethane insulation layer. 4. Supporting: refrigerator, recycle pumps, refrigerant pipeline, cooling pipeline, pipe fittings and valves, etc. |
| E. CIP cleaning system: | Disinfection tank | 1. Effective volume: 50L; 2. Thickness of cylinder: 2mm; thickness of inner tank: 1.5mm; 3. Material: SUS304 stainless steel. |
| Alkali tank | 1. Effective volume 50L; 2. Thickness of cylinder: 2mm; Thickness of inner tank 1.5mm; 3. Material: SUS304 stainless steel; Supporting cleaning vehicles, pumps, pipeline valves, etc. | |
| F. Control system: | Digital display control cabinet | Function range: brewhouse control: mixing, raker, wort pump control; temperature display of each tank in the mashing; Fermentation control: automatic temperature control of the fermentation tank; Refrigeration control: automatic temperature control of glycol tank; control of refrigeration unit and circulating pump; Cleaning control: washing pump control; |

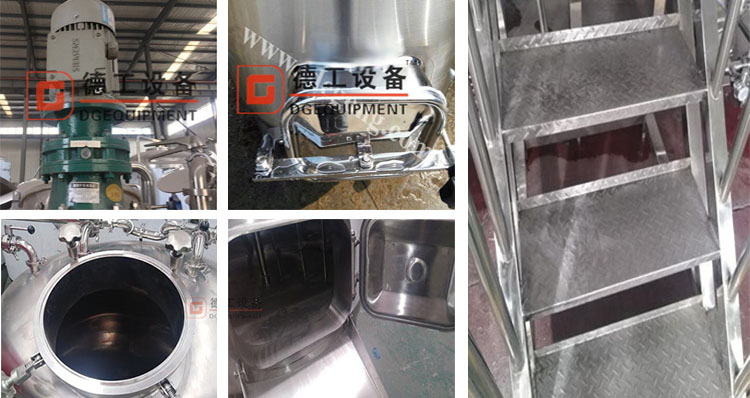

Details picture of brewery equipment
Top/side manhole fermenters can be available
Most installation in restaurants, bars and hotels used microbrewery with a capacity from 300L to 1000 L. The turnkey equipment are installing at the customer's factory. The minimum performance of our equipment is 300L.
