DGET-300L
DGET
8438400000
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
| Brewhouse equipment: |
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,sparging water, brews in certain time, brewing method etc. Our company accepts special design for these variations.
Stainless steel brewhouse system
Mash Brew Kettle/Lauter tank
Use – mashing, mixing and wort boiling.
Appearance - Cylindrical, top domed with conical inner bottom.
Insulation- polyurethane 70 mm
Complete pre-piped, pre-wired and test run prior to shipment.
Lauter tank equipped with plow knife (raker knife), ABB motor, 2.2KW, with motor cover and polished
Side mounted grain outdoor with grain chute
Easy clean and detachable sparging spray ring
Laser cutting T-wires false bottom (filter), plate gap: 0.7; Material is Stainless steel 304.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-Top domed lighted sight glass.
-Quick installed termo sensor PT100 connected to multi segments programmable controller
-Quick installed modular steam outlet condensator assembled with 0.5kw centrifugal water recycling pump for energy and water saving.
-Top domed cylindric hops grant for online hops insertion, adopted with wort circulation for effective mixing.
- Sanitary centrifugal 2.2 kw mash pump with VDF controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP ball.
- Outlet/darainage connections
- Inlet connections
Boiling/whirlpool tank
Heating method: steam heating
Tangential whirlpool inleta
360° coverage CIP spraying ball
Temperature measurement way: PT100
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with levelling pad
2 vessel brewhouse drawing
Our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric,direct fire or steam heat. Semi-automatic control and easy to operate.
| Fermentation Tank （with top manhole） |
Dimple jacket fermentation tank with top manhole
Net capacity: 300L, Gross capacity: 370L;
Material: Stainless steel 304
Inner thickness:3mm
Extenal cylinder – 2 mm; Jacket:1.5mm
H = 1850mm, d = 840mm, Thermal insulation (polyurethane foam) – 70 mm;
Configuration:
Glycol jacket: dimpled plate on cone and side
Cooling media: glycol water or alcohol water
60° degree cone bottom
CIP arm with 360°coverage CIP spraying ball
Dry hops port on the top of tanks with solid end cap
Full sanitary sample valve
Mechanical relief valve 2bar on CIP arm
Shockproof pressure gauge on CIP am
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
PT100 Temperature sensor for high accuracy temperature control
Design pressure 0.3MPa
Working pressure 0.15Mpa
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with levelling pad and legs support
Complete valves, fittings and all parts

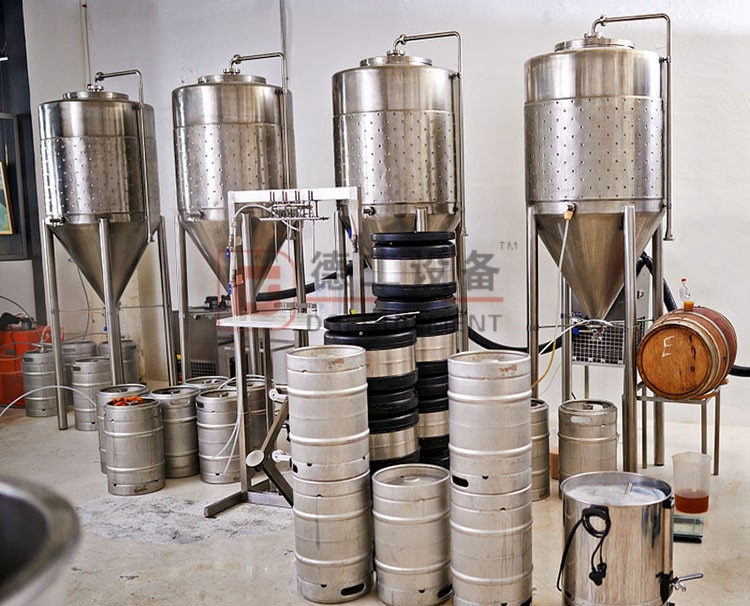

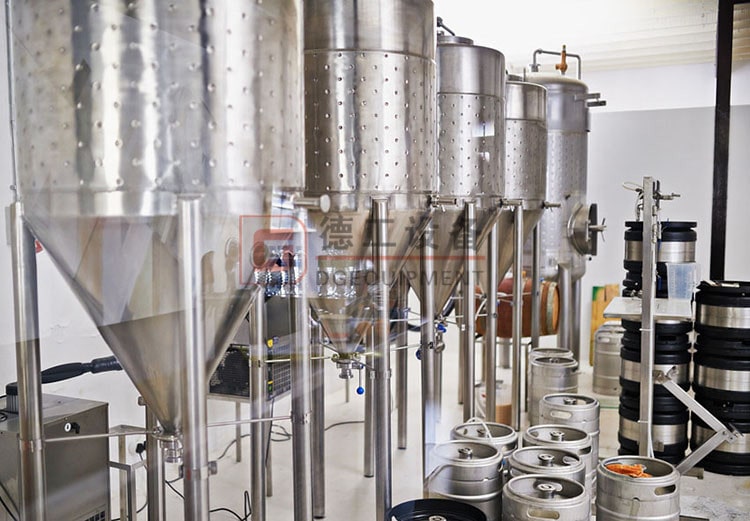

Fermenter and beer keg
| DGET information |
Workshop
Compared to other peers, we have the following advantages (but not limited to this)
1. TurnKey brewery Project with high level technology.
2. Custom made for any size.
3. International standard stainless steel 304,316 and red copper material.
4. Seamless Welding&8 times Inner polishing.
5. Advanced produce equipment.
6. Leading manufacturer of craft brewing equipment in China.
Welcome to contact me if you have any questions about our beer brewery equipment.
