1000L Stainless Steel Dimple Jacket Conical Fermenter Restaurant Microbrewery Equipment brewing system China
Home » Brewery Equipment » Fermentation Vessels » 1000L Stainless Steel Dimple Jacket Conical Fermenter Restaurant Microbrewery Equipment brewing system China

Product Detail

Share to:

1000L Stainless Steel Dimple Jacket Conical Fermenter Restaurant Microbrewery Equipment brewing system China

Beer fermentation tank is also called CCT, fermenters are made of SUS 304, for fermentation and maturation of beer. We design, manufacture all variety fermenters from 500L to 30000L . With all the necessary valves, connections, microbrewery fermenters are the CE certification.

Type:
Material:
Jacket:
Insulation:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000

Execute your brewing process with confidence for years using our fermentation tanks! Made from 304 or 316L stainless steel coming with either dual or multi-zoned glycol jackets, our fermentation tanks are the ultimate choice in fermenting wort into beer.


QQ截图20191203160209_副本

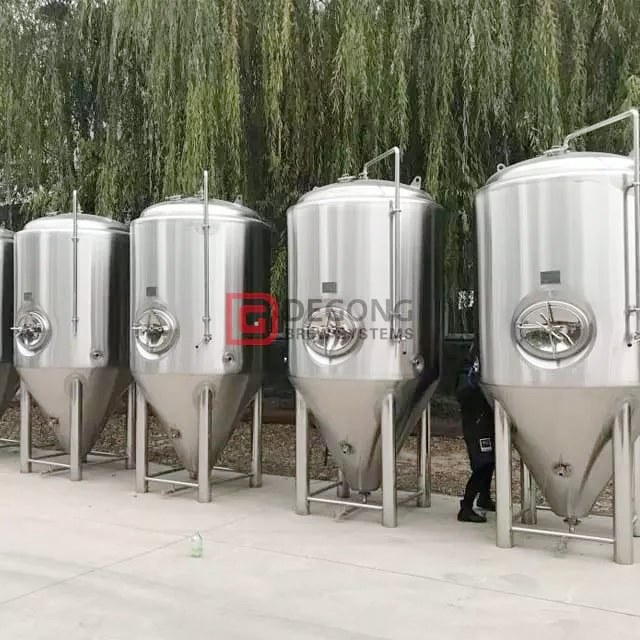

1000L conical fermenter for sale


Standard Fermenter Main Features:

• 304SS with Dual Glycol Jacket and insulated with a minimum of 80mm Chloride free PU insulation.

•  Top manways offer superior sanitation and ease to add fining and hops to the vessel.

• Glycol Jackets offer optimal media transfer. The interior of the shell is coated with a Chloride resistant coating to resist corrosion from the interior.

• Racking Arm allows for easy racking arm rotation, without the need to loosen any clamps. Simply turn the handle and the racking arm rotates.

• Adjustable Levelers to provide a level tank regardless of floor slope.

• Entirely 304ss Butterfly Valves, 2” Bottom port to facilitate yeast removal.

• Entire body a sanitary 2B or #4 finish.

• Respective PSI Pressure Vacuum Relief Valve, 2″ Tri-Clamp Connection.

• CIP Tank Spray Ball has spinner spray head assembly and exterior CIP arm.

• Dedicated 1.5” Blow Off Arm helps keeps CIP and PAM assembly clear of primary

• Conical bottom standard at 60 degree; other options are available

• Fixed stainless steel legs and bases with adjustable legs

• Large diameter legs;

• Preformed dimple cooling jackets within cladding

• Shadowless manway standard

• Stainless steel pressure/vacuum relief valve

• Sample valve

•Shell and cone insulated and clad


发酵细节_副本

Pressure gauge and raking arm details


淋球_副本

360 degree Spray ball

Optional Features (Add-Ons):

•Spunding Valve and Pressure Arm Manifold allowing for accurate pressure monitoring and precision tank venting.

• Temperature Thermowell with included RTD Sensor.

• Upgraded 2nd Generation Sample Valve with 1.5″ Tri-Clamp, all stainless steel.

• Upgraded Sanitary Pressure Gauge , 3A Certified True Sanitary design.


未标题-1002_副本

Side manhole fermentation tank with pressure gauge



The outer and inner tank is constructed using high quality sus304 stainless steel and features a glycol cooling jacket which acts to boost glycol cooling performance, and to maintain lower lagering temperatures.

The insulated interior features polished and passivated TIG welds , which allow for a fully aseptic process, as well as, easy and effective cleaning, which is offered by means of a 360° stainless steel spray ball.

The interior surfaces can be either acid passivated or polished to a mirror finish depending on your unique requirements.

Other intelligent features include a sampling value, a convenient port designed for the purpose of adding hops, a racking arm and a bunging device.


DGET brief introduction


公司简介


工作间_副本


FAQ

1. How long is your delivery lead time?

A: After 30-45 working days when we receiving your payment.


2. Could you calculate the shipping for me?

A: Yes, please kindly let us know which port is nearest your place.


3. What is your term of payment?

A: Our payment terms are both TT and L/C. 30% for advance payment after signing the contract and before manufacturing, 70% as balance payment after manufacturing all equipments and before delivery.


4. This is the first time I use this kind of machine, is it easy to operate?

A: There are English manual or guide video for showing how to use the machine;

If you still have any questions, we can contact by phone or email, etc;



Cooperator


客户_副本


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment
