DGET-600L
DGET
8438400000
The fermentation tank can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve, CIP arm, sanitary sample calve, manway, etc, The design of fermenters is based on our vast beer knowledge and especially the micro beer fermentation tanks bottom and the fact that we combine fermentation and maturation in the same vessel is very important.
craft beer brewery equipment
The main material of craft beer fermentation tank is stainless steel
An upper stainless steeel dished head, the lower conical or dished bottom head to facilitated the discharge of yeast, 100% TIG welding, clean and polish;
inner wall thickness 3mm, heating preservation polyurethane foam, insulation thickness of 60-100mm, the thickness of the outer foreskin 2mm;
Cleaning the inner surfaces of the craft beer fermentation tank, polished to 0.4μm;
Configuration the appropriate standard models sanitary clamp type connector according to the specifications of the tank;
Configuration the vacuum valve / pressure relief, pressure gauge, thermometer, sampling valves, lifting ear, side or top of the manhole, a full range of cleaning equipment CIP nozzle 360° fo the beer fermentation tank;
Double glycol cooling takeover import and export, the refrigerant jacket is welded honeycomb Maitreya plate;
With liquor outlet valve shaft
Standard clamp-type hops added port;
Electronic thermometer sensor interfaces.
side manhole fermentation tank
Design pressure:3bar, working pressure:1.5bar
Interior and exterior finish bright polish 0.6-0.8 hygiene sueface ;
4 304 stainless steel legs with leveling footpads;
60° degree cone bottom. other angles can be specified during the design process;
20% headspace, unless a differient volume is required;
Top many wanway or side manway door;
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet;
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom;
Non welding CIP arm and rotating 360 degree reach spray ball;
Solenoid relief valve, pressure relief valve (safe valve) are standard;
Pressure guage, themperature probe
Sanitary sample vale and port;
All clamps and gaskets to attach all accessories;
Tank complete with pipingm fittings, sanitar valves and all parts;
Carbonation port is available for special request (stone not included);
Ladder hooks is available for special request;
Dry hop pots and hop bag hooks in any fermenter of any size for special request;
If you have something specific in mind, let us know. We are easy to get ahold of and would be more than happ to discuss options.

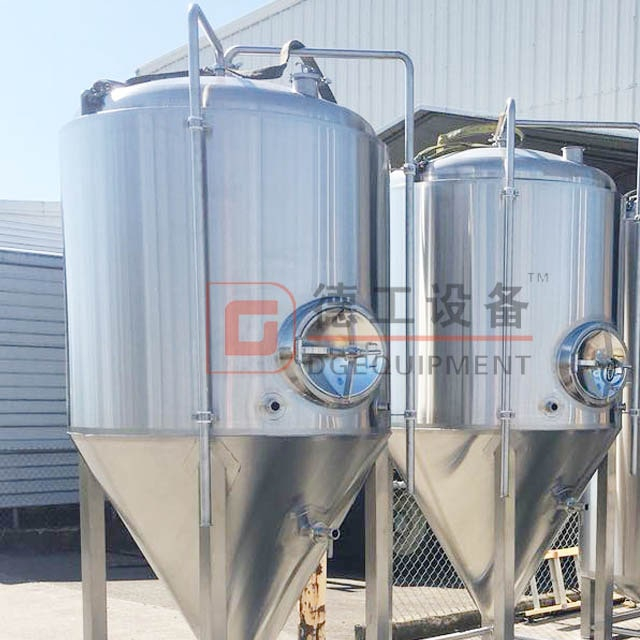

conical fermentation tank details
mechanical regulator valve & pressure valve
side manhole & sight glass
drain outlet fermenter with wheel
If you are interested in DEGONG fermentation tank, get in touch with me freely.
