DGET-2000L
DGET
8438400000
| 2000 liters medium scale brewery |
Heating Methods
Steam Heating: dimple plate jacket with inlet/outlet fittings for steam heat transfer;
Electrical Heating: use electrical heaters to heat
Gas fired Heating: use gas burner at bottom to heat tank directly
For 2000L brewhouse,mash system includes mash/lauter tank,boiling/whirlpool tank and hot water tank.The heating method can be electric heating,steam heating and direct fire heating.In particular, steam is heated more evenly and more quickly.
Customized ss brewhouse system
Copper brewhouse unit
Features of brewhouse
Effective volume:2000L: Total volume:2600L
Inner thickness:3mm: Outer thickness:2mm
Material:stainless steel: Design pressure:0.3Mpa
Insulation:polyurethane 100mm: Working pressure:0.12-0.15Mpa
The precision of polishing can up to Ra 0.6 µm Interior: mirror polish
CIP 360 degree omni bearing cleaning: Temperature way:double metal thermometer
We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use.Our experienced team of engineers work to design every brewhouse.
Spent grain hatch with chute
Lauter tun false bottom,rakes
Brewhouses' configuration:
2-Vessel 2000l brewhouse
Mash/Launter Tun + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank
3-Vessel 2000l brewhouse
Mash/Lauter Tun + Boil Kettle + Whirlpool Tun
Mash kettle Tun + Lauter Tun + Whirlpool Tun
4-Vessel 2000l brewhouse
MashTun + Lauter Tun + Boil Kettle + Whirlpool Tun
Brewery beer fermenters

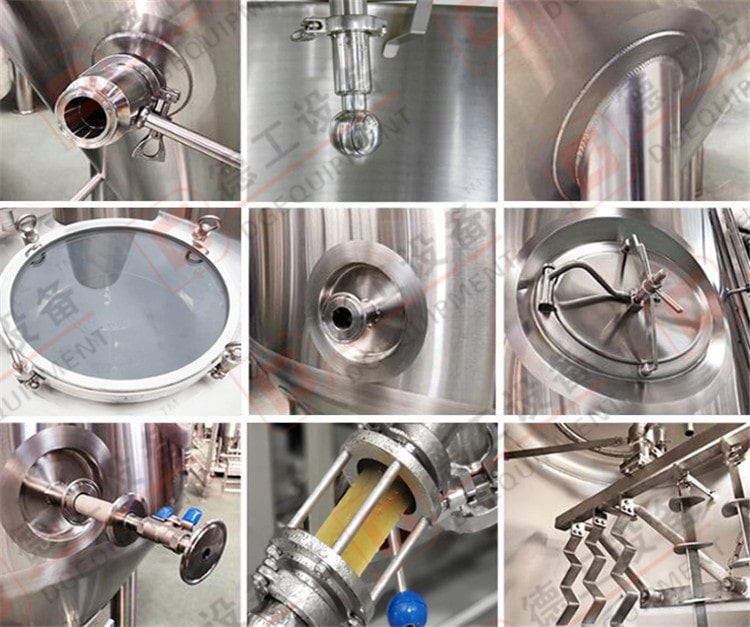

Brewery components:spray ball;top manhole;legs welding;side manhole;
Fermentation tank
Material:SUS 304
1.Inner thickness:3.0mm;outer thickness:2.0mm
2.Jacket thickness:1.5mm
3.Inner surface treatment:welds grinded to Ra 0.6um
4.Mirror surface finish inside.
5.Insulation: Polyurethane-thickness 100mm
6.cone 60 degree resist compression design,dripping
7.Heat exchange area: 5.1 m2
8.Vessel pressure:1.5 bar/3.0 bar
Yeast adding tank
Adopts sus 304 stainless steel fine polished process,outer stainless polishing.
Adding yeast sight glasses,aseptic air mouth,and wort pipe connection mouth.
Clients visited our factory before purchase this set of brewery equipment
What a wonderful thing it is to have an enthusiastic colleague meet an enthusiastic client.This exhibition is also very successful, and we will participate in more such activities in the future to provide better equipment and services for customers from all over the world.
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
