15BBL Industrial Commercial Professional Beer Brewing Equipment For sale

The set of 15BBL brewery equipment is definitely the best choice for your brewpub or restaurant. Stainless steel 304 or red copper as the second option. Built with the state of the art technologies and world renowned componnents including ABB, Siemens, Omron or Schneider. The set of brewery equipment can meet your needs pretty well because it is built strictly according to the customer's specific requirements. If you are looking for one, then why don't you give it a go?

Availability:

Quantity:



Inquire Add to Basket

Model:
DGET-15BBL
Brand:
DEGONGET
Code:
8438400000

Product Description

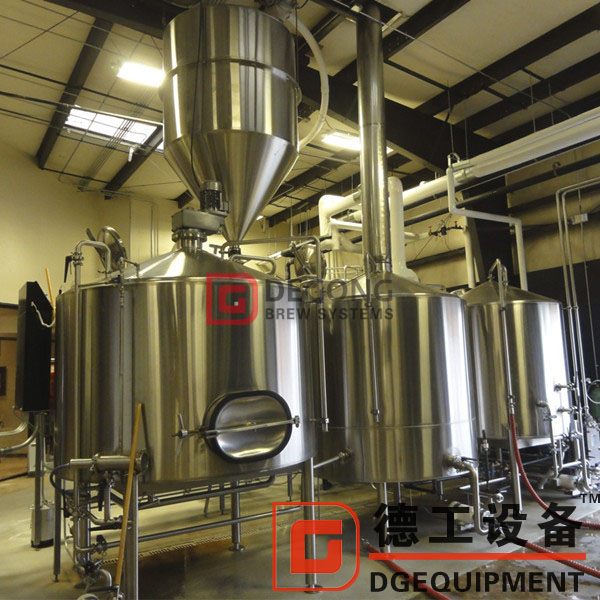

15BBL customized beer brewhouse

The brewery 3-vessel brewhouse is designed for brew any varieties of malt wort by the infusion method of mashing, and also the decoction method if there is an additional mash tun. The total volume of the vats of the brewing order is 1900 liters, allowing you to brew a high density wort, either get up to 1700 l. low-density beer wort.

The craft brewing equipment in the basic configuration consists of three units: the mash/lauter tun; kettle/whirlpool tank; hot water tank. The brewhouse can be steam heated, gas heated or electric heating which depends on the cost of each energy and local environmental policies.

15BBL 2-vessel beer brewhouse includes:

Mash/lauter tun of 1900 liters;
Kettle/whirlpool tank of 1900 liters;
Pipelines;
Pump for transferring water, mash and wort;
Remote control.
Working platform with stairs

1000L 2-vessel commercial beer brewhouse

15BBL 3-vessel beer brewhouseincludes:

Mash/Lauter tun of 1900 liters;
Kettle/Whirlpool tank of 1900 liters;

Hot water tank of 1900 liters;
Pipelines;
Pump for transferring water and mash;
Pump for transferring water and wort;
Remote control.
Working platform with stairs

1000L 3*vessel beer brewhouse

Descriptaion and pictures of each tank

Mash/Lauter tun:

The mash/Lauter tun is made of high-quality food grade AISI-304 stainless steel with a high degree of polishing (to a mirror finish). The welds are polished to a sufficient degree. The mash tun has a mash/wort heating jacket over the entire diameter and cone of the vessel. The heating shirt is thermally insulated with polyurethane foam and covered with an outer sheath of food grade stainless steel.

The mash/lauter tun is equipped with a gear motor with a raker, a steam removal pipe or a flow-through steam condenser, an inspection hatch, lighting inside, a control panel for temperature pauses, two rotating washing balls with connection to a CIP-station.

The mash tun is designed for mashing malt infusion method and boiling the wort with hops. If there is an additional kettle, mashing is also possible by the decoction mashing techniques. The kettle can also heat or boil water to wash all the equipment of the brewery.

What are equipped:

– Mash mixer with gearmotor;

– Interior lighting;

– Two rotary washing heads;

– Inspection hatch;

– Ventilation piping with gate.

– Thermal insulation (polyurethane foam)

– Pneumatic valve

Pictures:

15BBL Beer fermenter

The fermentation area consists of a specific (at the customer’s choice) number of beer fermentation tank, also known as CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.

Beer fermentation tank has a cooling jacket over the entire height of the cylindrical part. CCTs from 1000 liters also have a separate cone cooling jacket. ССTs are insulated by polyurethane foam with 100mm thickness. The external covering of CCT is made of food mirror stainless steel.

The CCT is designed for internal pressure and can be used both for the primary fermentation and for the maturation (carbonation) of beer and the supply beer for filtering or bottling. The working pressure inside the CCT is up to 3 bar (can be adjusted by pressure bunging device).

1000L beer fermentation tank row
