1500L Beer Brewery Equipment DEGONG 2020 Hot-sale Product Professional Manufacturer Commercial Mash System Stainless Steel Fermenter for Sale

The 1500L beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and SUS 304,and the system also have high automatic control capacity.
Simple operation ,PLC automatic control system ,PLC semi-automatic control system.
Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.

Insulation:
Manhole:
Fermentation tank coolinig:
Type of Control:
Packing:
Quantity:
  • DGET-1500L
  • DGET
  • 8438400000

1500L beer brewery equipment brief introduce

1-The 1500 beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and SUS 304,and the system also have high automatic control capacity.

2-Simple operation ,PLC automatic control system ,PLC semi-automatic control system.

3-Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.


1500L brewhouse system

Material: SUS304/316 or red copper

Combination:

2-vessel:mash/lauter tun+boiling/whirlpool tun

3-Vessel:mash/lauter tun+boiling tun+whirpool tun

       Mash tun+lauter tun+boiling/whirlpool tun

4-Vessel:mash tun+lauter tun+boiling tun+whirlpool tun

Attention:hot water/liquor tank is optional.

Heating method can be steam/electric/direct fire heating.

Steam heating:

It requires a boiler.It heat evenly and fast, also easy to control temperature, not scorch the pot.

Electric heating:

The electric heating behaves well for the volumeunder 500L, saving the investment on the boiler/burner, if there is no condition to use the boiler/burner or it is more economical by using electricity.

Direct fire heating:

The burner and agitator are equipped with kettle.If you adopt decoction mashing way, the wort is easier to scorch. If so, the steam heating is more suitable.

With ABB VFD motor, raker, false bottom, sight glass,bimetallic thermometer(temperature probe PT100),spent grains hatch, sparage ring and so on.


BREWHOUSE1

3-vessel brewhouse system


About 1500L Fermentation tank details

Material:stainless304/316

Racking Arm and discharge port with butterfly valve and fittings;

dimple plate cooling jacket.

Insulation thickness: 100mm;

Inner tank thickness: 3.0mm; outer thickness:2.0mm

CIP arm and rotary spray ball

Release and breath valves

sample valve, mechanical pressure regulation valve

Pressure gauge & Thermometer & Sample valve

Dimple plate cooling jacket with glycol inlet and outlet

Four legs with brace and adjustable bolt

Interior of tank is mechanical polished, inner body polishing ratio 0.4μm.

Outer plate surface protection welding line Belt Sander Polished,welding: 100% Argon Arc welding.


750FV 套图 正面-min2


mechanical valve, pressure-min

mechanical regulation valve&pressure valve

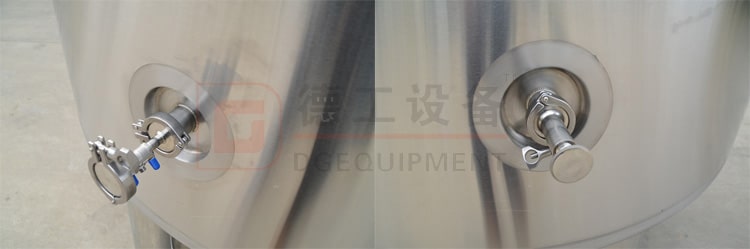

FT-Carbonation stone&sample valve-min

carbonation stone


cleaning ball and thermometer-min

cleaning ball&thermometer


Cooling system

Function: Used for cooling wort in heat exchanger when it finished the mashing in brewhouse, and cooling wort in fermentation tank in the fermenting period.

Component: Ice water tank, solenoid valve, glycol water ump, stainless pipeline and etc.

Cooling method: Two stage cooling (Glycol water and tap water work cooling).

Control method: Automatically by PLC controller cabinet.

In addition to glycol water, the cooling system also includes refrigeration units, circulating pumps, etc.


cooling1

glycol water tank&chiller


If you have interest, please feel free to contact me, my pleasure.
