DGET-10HL
DGET
8438400000
| Premium brewery equipment supplied by DEGONG |
Our brewery equipment allows brewing beer of all styles. According to your wishes 1000L equipment may be produced in two variants – restaurant type or industrial type.
Premium brewery equipment
| No. | System | Equipment components | Specification | Quantity |
| 1 | Mill system | Miller | 300 kg/h | 1pc |
| 2 | Brewhouse system | Mash/lauter tank | 1000L | 1pc |
| Kettle/whirlpool tank | 1000L | 1pc | ||
| Hot liquid tank | 1000L OR 2000L | optional | ||
| Mash pump | 3T/H | 2pcs | ||
| Plate heat exchanger | 10m2 | 1pc | ||
| Work platform | Stainless steel | 1set | ||
| Pipeline & valve | 1 set | |||
| 3 | Fermenting system | Fermenter | 1000L OR 2000L | 6pcs |
| Yeast feed tank | 30L | 1pc | ||
| 4 | Cooling system | Glycol tank | 2000L | 1pc |
| Chiller | 10HP | 1pc | ||
| Pump | 3T/H | 1pc | ||
| 5 | Control system | Control cabinet | Automatic | 1 set |
| 6 | Movable CIP system | Alkali tank | 1pc | |
| Sterilization tank | 1pc | |||
| CIP pump | 1pc | |||
| 7 | Accessories | 1 set |
2 vessel construction

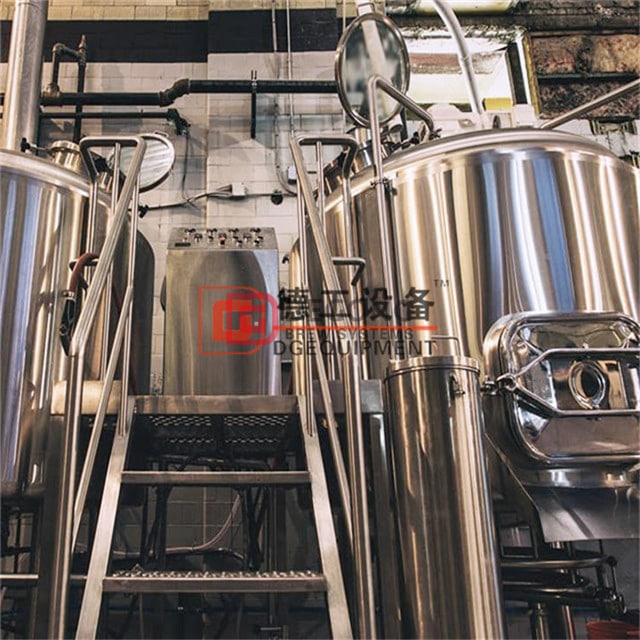

Brewhouse system:
2 vessels construction(Mash/lauter tank,boiling/whirlpool tank add HWT)
Brewhouse system mainly includes mash tun,lauter tank,brew kettle,whirlpool tank,pipeline,pumps and platform.There are various brewhouse combinations for different brewers and brewing tecnologies from different countries.
Main equipment: Mash tun,Lauter tank,Brew kettle,Whirlpool tank
Optional: Hot water tank;Boiler(if steam heating is required)
Materials: SUS304 Stainless steel, Red copper
Capacity: 1000L per batch
Heating way: Direct fire,Electric,Steam boiler
Insulation: 100mm Polyurethane
Interior finish: 0.4 um without dead corner
Function: Making grain ingredient convert to pure wort
Fermenting system:
The material of the fermentation tank are adopted 304 stainless steel. we can do red copper or stainless steel tank according to your request. Use polyurethane to keep warm.
1. Racking arm
After accepting many Customer's advice, we improve to the following kind of Rotating Racking Arm.
It can rotate to drain out the beer and reduce the yeast stuck.
2. Manhole
We Equip embedded shadowless manhole with fermenter, which makes them have a good insulation.
3. Mechanical pressure relief valve
We use Mechanical pressure relief valve, it will be auto control pressure in fermenter to protect the tanks.
4. Cooling jacket
Same with steam jacket, use dimple jacket, it will expand cooling ares and makes better cooling effect.
Cylinder tanks
Breather valve;sample valve;side manhole;drain outlet;legs
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
