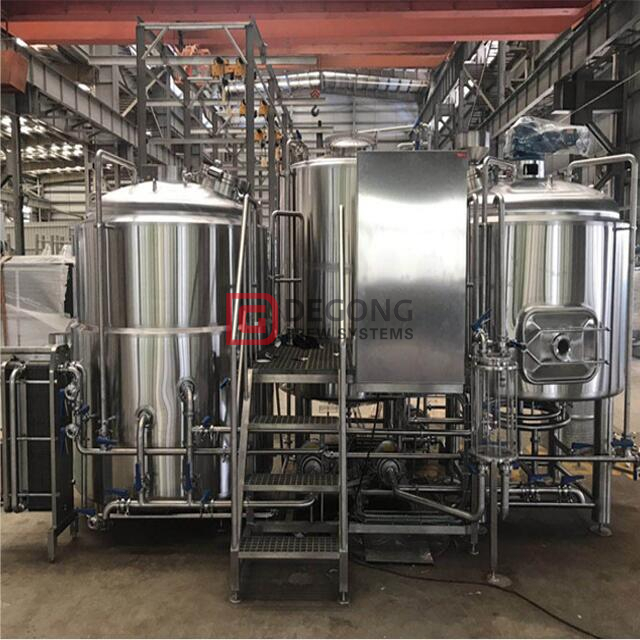

10BBL commercial beer brewhouse system brewery manufacturer for brewing high quality craft beer

Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.

Thickness of material (mm):
Insulation:
Material:
Quantity:
  • DGET-10BBL
  • DGET
  • 8438400000

We design and produce a line of complete microbreweries to your specifications. Alternative brewhouse configurations are of 2-vessel, 3-vessel styles and customized. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry.


enntqpftnxtrtbz_副本_副本

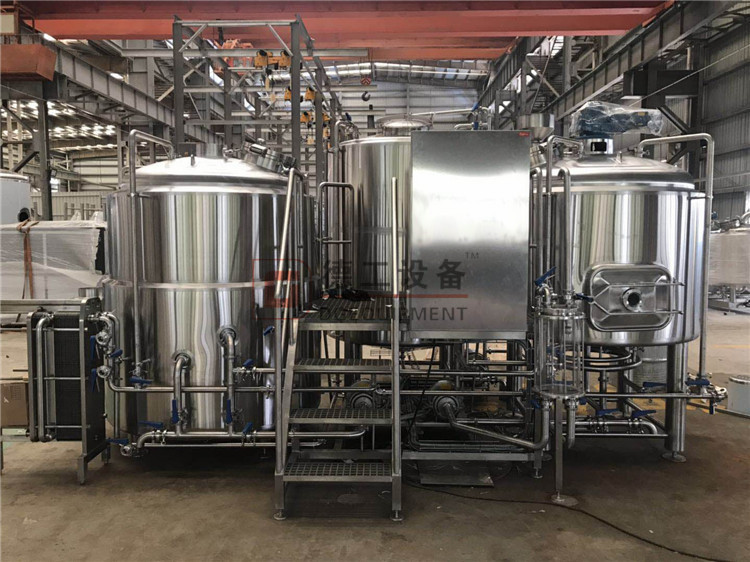

2 vessel brewhouse system with heat exchanger


Features of Microbrewery brewhosue system:

Pub brewery, 2-vessel mash/lauter + kettle/whirlpool, 500L, 1000L.

Microbrewery, 2 vessel mash/lauter + kettle/whirlpool, 1000L, 1500L, 2000L.

Microbrewery, 3, 4, 5 vessel brewhouse, 3000L, 4000L, 5000L

Small kegging systems: keg washer and keg filler machines.

Hot water tank and cold water tank for optional in special combinations.

Stainless steel are popular because of easy maintenance and clean, copper cladding for optional.

Two stages heat exchanger for wort cooling.

Completely stainless steel integrated work platform.

Sanitary and efficiency wort pump.

All pipings and fittings.


021_副本_副本

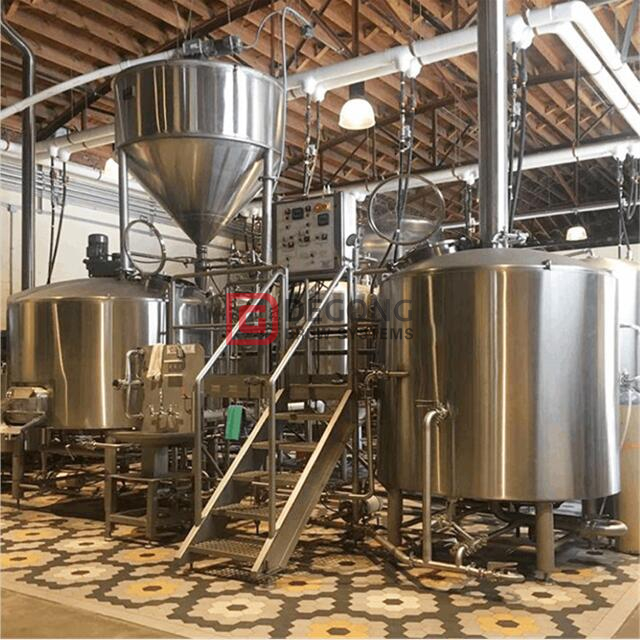

Commercial brewery equipment with hopper

Malt machine(brewery equipment)

Material: SUS304 - 2 roller, - Capacity: 300-500kg, - Power: 3kw - with motor & belt

Screw auger(brewery equipment)

Capcity 500kg/H - Connected malt mill and hopper


QQ截图20200114143301_副本_副本

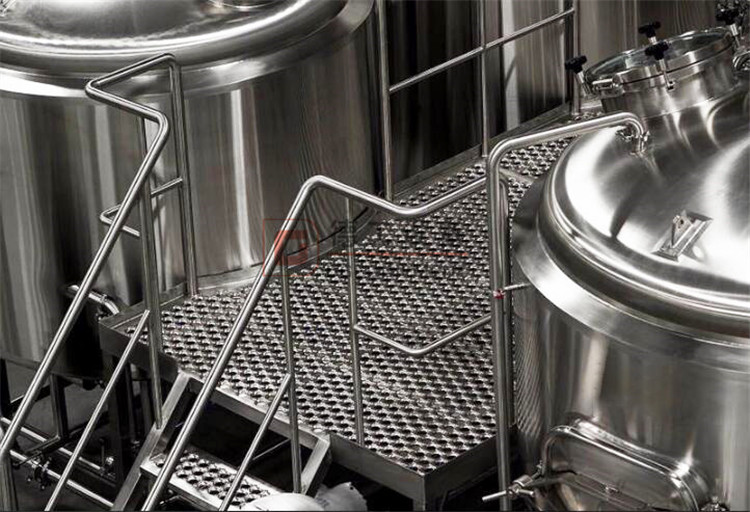

Stainless steel working platform


hqjumytpdphrtcq_副本_副本

Brewery equipment in cellar


From the Engineering, to the precision manufacturing processes, you won’t find a better match of price, performance and quality. Specifically designed for compact brewing spaces, our fully equipped brewhouses include virtually everything you need to get up and running fast! Perfect for taprooms & small breweries! Single phase and 3-phase options available.



Mash Tun Included:

Effective volume:10BBL

350mm manway.

Bottom drain fitting with butterfly valve, elbow, and cover.

Tri-clamp ferrule on lid.

CIP spray ball included.

304 brushed stainless steel construction.

Sturdy stainless steel stand.

Temperature sensor port.

Graduated level gauge.



Boil Kettle/whirlpool tank & Hot Liquor Tank

Effective volume:10BBL

Bottom drain fitting with butterfly valve, elbow, and cover.

Whirlpool fitting.

Tri-clamp ferrule on lid for CIP.

304 brushed stainless steel construction.

Sturdy stainless steel stand.

Temperature sensor port.

Fitting with tri-clamp ferrules for heating elements (2 per vessel).

Graduated level gauge.

Low level float switch.


糖化细节-min

Dished head and wort pump

Raker and filter board

Control Panel:

Wash down capable enclosure.

Individual heater breakers.

Temperature control.

Option of 208V 3 Phase - 68 amps. or 240V Single Phase - 100 amps.

Please confirm the local voltage before purchasing.




Control panel (mashing control and fermenting cntrol)

Included Accessories:

Chiller - stainless steel plate heat exchanger.

1000l/h Pumps with stands, handles & diaphragm valves.

Tri-clamp end sanitary hoses.

Tri-clamp fittings for all kettles and hose attachments.

Hose spray nozzle.

Sanitary sight glass.

Cellaring equipment.


Cylinder-conical fermentation tank features:

3-4_副本

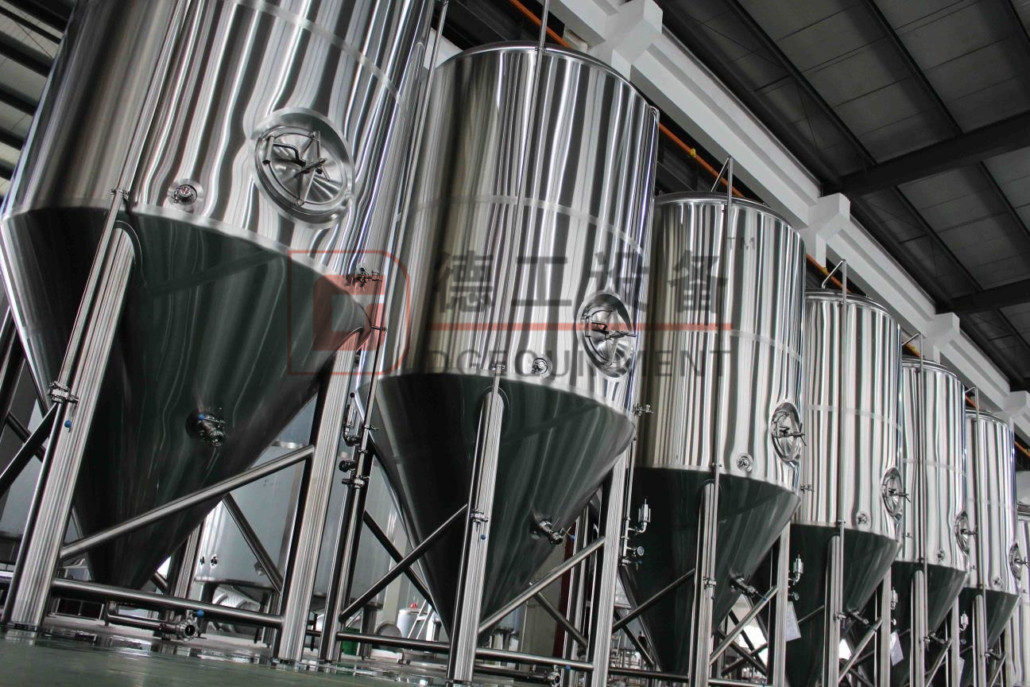

Craft beer equipment cylinder-conical fermenter in factory


发酵细节_副本

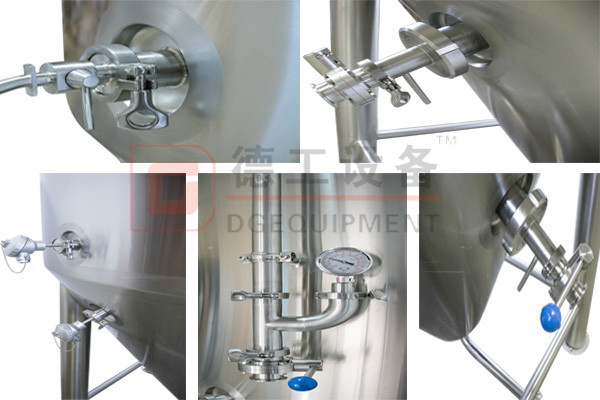

Fermentation tank components details

Basic features:

1.Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm

2.External-Jacket(SUS304) thickness: 1.5mm;

3.Oval head cone bottom, thickness: 3.0mm.

4.100% TIG welding with pure argon gas shield

5.Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

6.Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)

7.Interior full polished to 0.2~0.4 μm without dead corner

8.Insulated with high density Polyurethane foam 100mm

9.Glycol Jacket: Dimpled plate on cone and side

10.Sanitary side mounted manway with pressured door

11.Full sanitary metallic sealed sampling valve

12.Mechanical safe valve PVRV 2 bar on top

13.Rotating racking arm and port on cone with butterfly valve

14.Tri clamp discharge arm with butterfly valve

15.Thermowell for high accuracy temperature sensor

16.4pcs completely SUS304 legs


Our company brief introduction:

DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.

webp

Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment
