DGET-100L
DGET
8438400000
Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.
| Mini brewery equipment 100L |
Heating options of mash tun( brew kettle ):
1. (Standard option) – Electric heating (electric heater is placed in stainless steel cylinder)
2. Natural gas heating
3. Steam heating

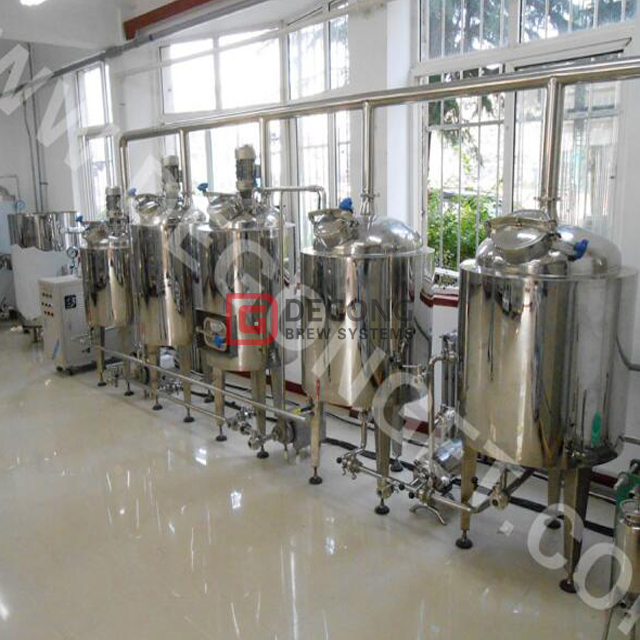

A small laboratory beer brewing equipment
| Name of equipment | amount |
| Malt mill | 1 |
| Mash tun | 1 |
| Lauter tun | 1 |
| Boiling tank | 1 |
| Whirlpool tank | 1 |
| Pipelines and isolation valve of brewing line(including hop seperator) | 1 set |
| Wort pump | 1 set |
| Plate heat exchanger | 1 |
| Control panel(brewing line) | 1 |
| CCT(Fermentation tank) | optional(2,4,6,...) |
| Control panel(CCT) | 1 |
| Refrigerating unit | 1 |
| Hoses of fermentation room | 1 set |
| Equipment for filling kegs | 1 |
| CIP(washing tank,sterilization tank and pump) | 1 |
| Other Accessories | 1 set |
Spent grains port（Rectangular side door）

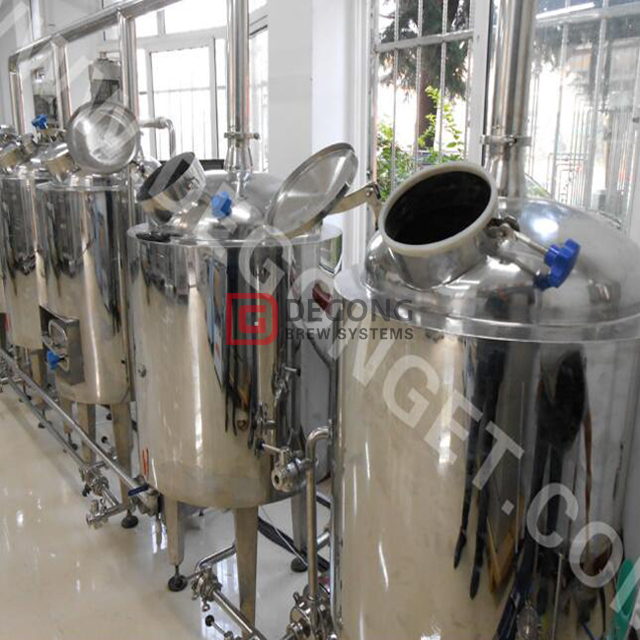

Mash & Lauter tun used for producing craft beer
Made of stainless steel 304.
Exterior walls completely welded with TIG welding, with 80mm of insulation in the bottom of the tank and in the walls.
Mirror polished interior.
Integrated jacketing system with laser at the bottom and on the walls of the tank.
Heating velocity: 1ºC/min.
Components:
Detachable rectangular side cover to remove the used grain.
Motor system (adjustable speed/inverter).
False bottom filter.
Sparging (lautering) in the upper part.
Rake and sealed access hatch
Boiling & whirlpool tank for craft beer
Vertical and cylindrical container made of stainless steel 304.
Exterior walls completely welded with TIG welding, with 80 mm of insulation in the inferior region and walls.
Mirror polished interior tank.
Jacketed at the bottom and on the walls, with heating capacity via electric heating/steam heating(Equipped with steam boilers: electric boilers, gas boilers and oil-fired boilers)/direct fire heating.
Components:
Tangential wort entry.

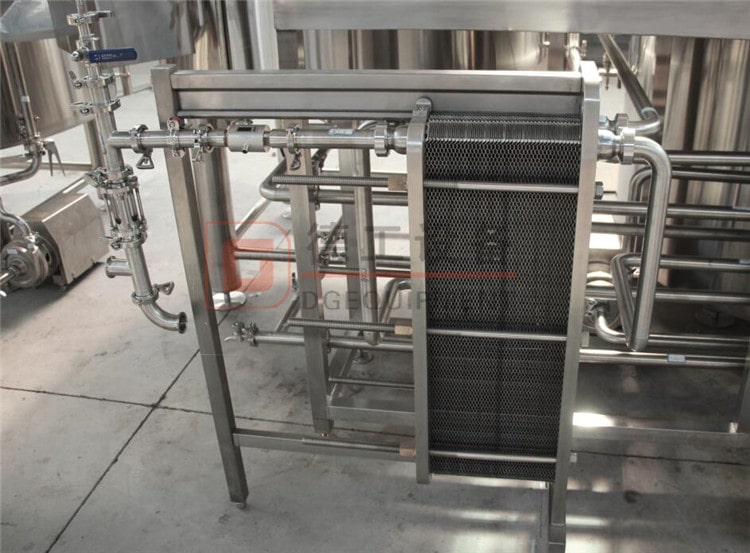

Plate heat exchanger (two-stage cooling)
Heat exchanger
Usage: wort fully cooled in one hour.
Temperature probe: PT1000.
Material: Stainless steel 316.
Wort cooling: from 100ºC to 18ºC.
Wort pump
Driven by a 0.75 kW motor.
Continuous speed control, with a frequency converter.
Pump and temperature controlled with PLC.
Material:stainless steel 304
Pump used for production and cleaning (CIP).

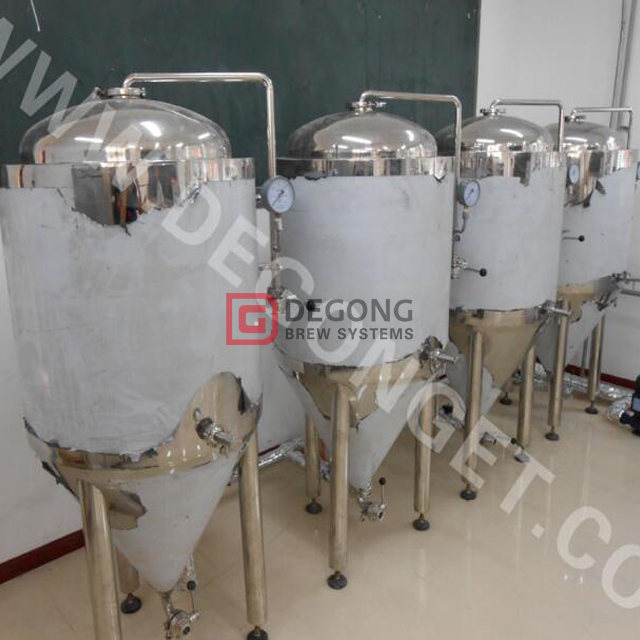

Micro beer fermenters
Technical Parameters of Fermentation tank:
SS 304 construction
Top dished head with pressure vacuum relief valve
Top manway or side manhole
Dry Hopping port with cap
Sanitary rotary spray ball
PU foam insulated
Cooling jacket on cylinder and cone bottom
Side CIP arm assembly with bung valve and pressure gauge
Sanitary thermowell
Sample Valves
Cone racking arm
60 degree cone bottom
Bottom discharge
Four legs adjustable feet
Internal shell: 3mm, External Shell :2mm
Control central bureau

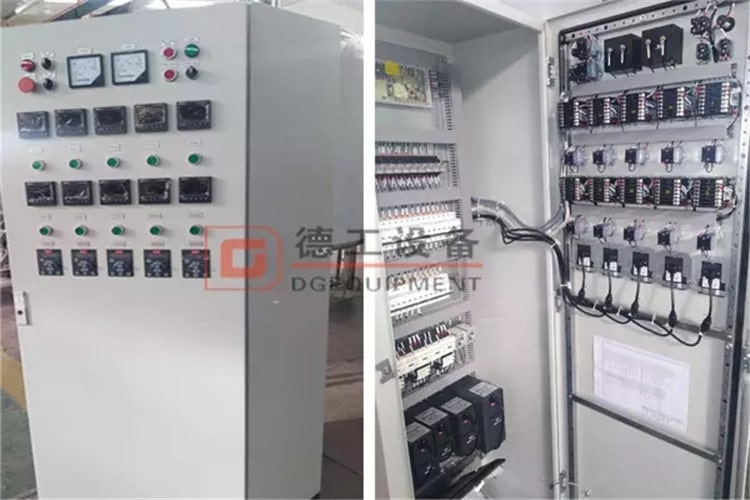

Control panel
The control box, made of stainless steel 304. The interface and monitoring system are easily managed in such a way that you yourself can control each and every one of the following functions:
The temperature of the mash and lauter tun.
The temperature of the boiler and whirlpool, separately for the bottom and the sides.
On and off switch for the pump, as well as its speed.
Water temperature display.
Wort output temperature display.
Heating fuel temperature display.
Phased mash program (time/temperature, recirculation of the wort and mix intensity).
BREWERY SHOW
| DGET brief introduction: |
DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.
Our certifications
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Loading cargo
| Contact information: |
DGET-brewing equipment for launching your own facility or private brewery for selling beer in selling points.
Warmly welcome your visit, please contact me quickly for more brewery equipment information.
