| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Fermentation tank coolinig: | |
| Quantity: | |
DGET-1000L
DGET
8438400000
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
| Brewery Specifications: |
Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.

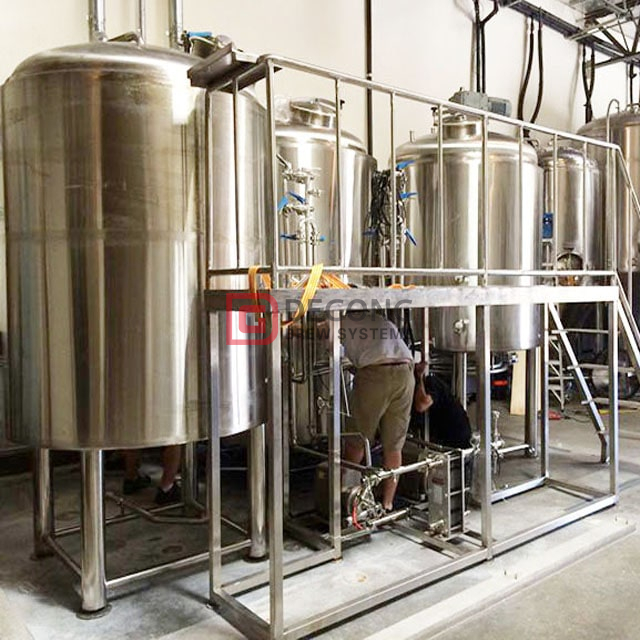

A set of brewery equipment

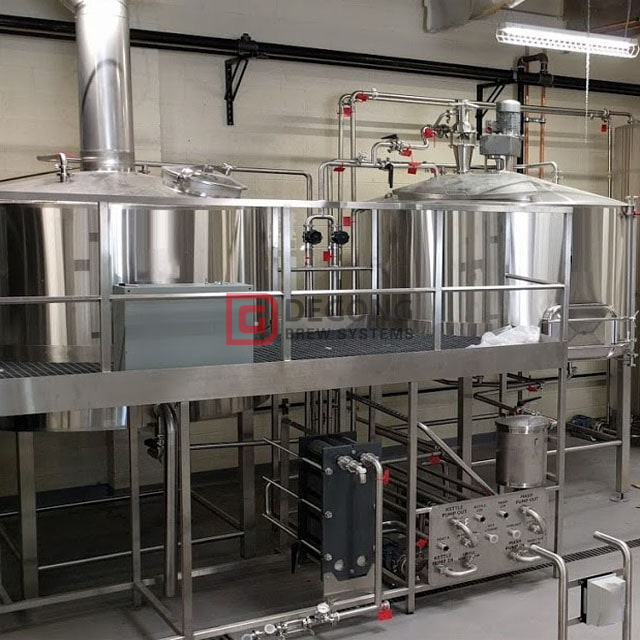

Mash /Lauter tun
Net capacity: 1000L, Gross capacity: 1400L
Stainless steel 304 thickness:
Inner = 3mm;External = 2.0mm
Dish heads on top (Stainless steel 304), mirror polished outside
TH=3.0mm (the head outside is mirror polish).
Н = 2500mm, Ø = 1400mm
Thermal insulation (polyurethane foam) – 100 mm;
Configuration:
Lauter tank equipped with plow knife (raker knife), ABB motor, 2.2KW, with motor cover and polished
Side mounted grain outdoor with grain chute, size is 430*330mm
With semi-automatic grains removing plate
Easy clean and detachable sparging spray ring
Laser cutting T-wires false bottom (filter), plate gap: 0.7; Material is Stainless steel 304.
Top manhole: Round glass manhole, print the customers logo(optional), Diameter: 350mm;
Heating method: steam heating
Filter method: Suction filtration by speed controlled filter pump.
360° coverage CIP spraying ball
Temperature measurement way: PT100
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with leveling pad
The two tanks height is same
Brew Kettle/ Whirlpool tank
Net capacity: 1000L, Gross capacity: 1400L
Stainless steel 304 thickness:
Inner = 3mm;External = 2.0mm
Dish heads on top (Stainless steel 304), mirror polished outside
TH=3.0mm (the head outside is mirror polish).
Н = 2500mm, Ø = 1400mm
Thermal insulation (polyurethane foam) – 100 mm;
Configuration:
Top manhole: Round glass manhole, print the customers logo(optional), Diameter: 350mm .
Heating method: steam heating
Tangential whirlpool inlet
360° coverage CIP spraying ball
Temperature measurement way: PT100
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with levelling pad

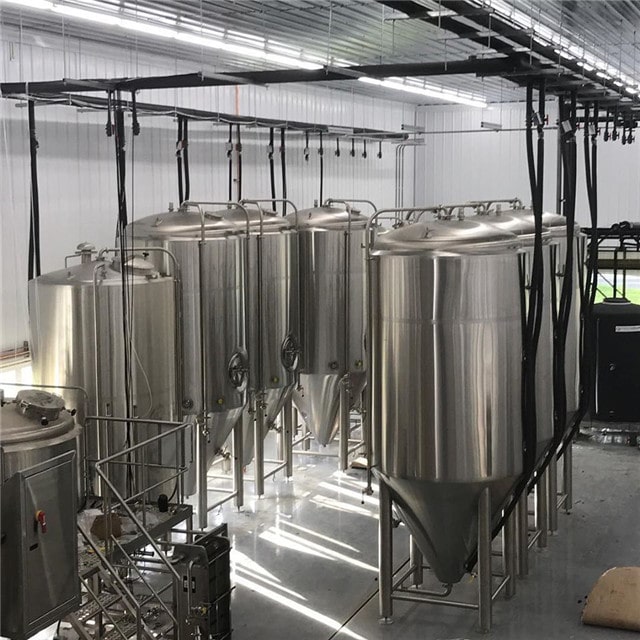

Beer fermentation tanks CCT
Net capacity: 1000L, Gross capacity: 1300L;Material: Stainless steel 304: Inner cone and head – 3 mm; Inner cylinder – 2 mm; H = 2550mm, d = 1300mm, Thermal insulation (polyurethane foam) – 100 mm;
Configuration:
Glycol jacket: dimpled plate on cone and side
Cooling media: glycol water or alcohol water
Stringent tank leakage test by water and pressured gas
Stringent jacket leakage test by water and pressured gas
60° degree cone bottom
CIP arm with 360°coverage CIP spraying ball
Side manway
Dry hops port on the top of tanks with solid end cap
Full sanitary sample valve
Mechanical relief valve 2bar on CIP arm
Shockproof pressure gauge on CIP am
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
PT100 Temperature sensor for high accuracy temperature control
Design pressure 0.3MPa
Working pressure 0.15Mpa
100% TIG welded joints;
4pcs completely Stainless steel 304 heavy duty legs with levelling pad and legs support
Complete valves, fittings and all parts
Refrigeration unit and cold water tank cool fermentation tanks
Suitable for restaurants, bars and taproom
| DGET brief introduction: |
DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.
TUV/CE Certification
Installation, Commissioning, Startup
DGET can be involved as much as needed in the installation process of the brewing equipment. A full crew can be on site to perform the full installation or a representative can be on site to oversee a local crew. After installation of the brewing system, DGET can be on site to provide start-up assistance of all the equipment and walk the brewers through the complete brewing process with a water boil. If needed, we would even be happy to assist with the initial batches of beer produced on your new system.
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Loading cargo
| Contact information: |
DGET-brewing equipment for launching your own facility or private brewery for selling beer in selling points.
Warmly welcome your visit, please contact me quickly for more brewery equipment information.
