Thickness of material (mm): | |
---|---|
Insulation: | |
Material: | |
Configuration: | |
Availability: | |
Quantity: | |
DGET-1000L
DGET
8438400000
By learning each brewer’s individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.
A set of brewhouse system
The main tanks or kettles of this system are all adopted 304 stainless steel that achieved the international standard. Adopted modern automated plasma, laser cutting line and pure argon gas welding and other advanced technology. The inner surface of the tanks or kettle is osculated with the mirror polished material. The outside are all polished. Ensure the equipment is with the high technology, high quality, reasonable price, luxury and beautiful.
Brewhouse system |
Standard Brewhouse configuration:
1. Mash / Lauter Tun with side grain out access
2. Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control
3. Semi-Automated Controls with PLC & Remote Access Support
4. 304 Sanitary Pumps with VFD Controls
5. 304 Stainless Steel Plate Heat Exchanger with integrated temperature controls
6. Manual Sanitary Butterfly Valves
7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
8. Semi-auto control cabinet
9. High accuracy temperature sensor, PT100
10. Heating: dimple steam jacket/ stainless steel electric heating elements
11. Usage:Pub/hotel/restaurant beer brewery equipment
Install the test tank
Stainless steel working platform and wort pump
Options:
· Integrated CIP On-Demand System
· Full-Automation PLC Control System
· Hot Liquor Tank –Designed and Sized for Double Brew efficiency
· Cold Liquor Tank –Fully insulated and integrated
· Mash / Lauter Tun Rakers
· Air Actuated Automatic Butterfly Valves
. All brewhouse pipelines are used automatic argon protect welding.
Brewhouse Details:
. 2,3,4 and 5 vessels can be avaiable
. All the tanks materials are made by 304 Stainless steel
. 304 stainless steel operate platform and stairs
. Glass manways
. 100L-20000L volume system can be available
. Grain mill and screw conveyer (optional)
. Plate heat exchanger
. Stainless steel 304 pump with ABB or Siemens motors
. Automatic and Semi-automatic control for choice,PLC or mobile control can be available
Fermenter technical parameters |
The task of brewer yeast in the primary fermentation stage is to convert part of the sugars in the wort into alcohol. At the set degree of fermentation the fermentation process is interrupted (not to be the full conversion of 100 % sugar).
This section includes all tanks designed to the primary fermentation of beer.
Cylindrical-Conical stainless steel fermentation tank
Item:Jacketed Pressure Conical Beer Fermentation tank
Interior thickness:3 mm;Exterior thickness:2 mm;jacket:1.5mm
Insulation: Polyurethane 80mm
Finishing: mirror polishing ≤ 0.6um

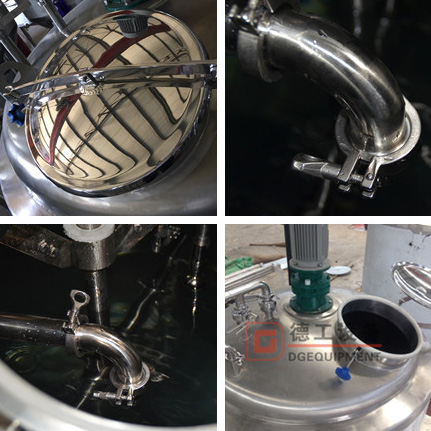

Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet
professional machine polish for inside and outside .
Capacity : from 500L -10,000L
Cone degree:60;
The position of manway door , on cylinder or dish head;
Cooling jacket can be dimple jacket;
Outter jacket finish can be mirror finish , brushed stainless steel finish
The type of the manway door can be flange type or the nor type .
The dish head can be signal or double
CCT(Cylindrical-conical fermentation tank) and components
Unitanks
Revolutionary tanks that combine both the functions of a fermenter and brite tank. The all-in-one vessel where you can ferment your wort and carbonate your beer all in one vessel.
Lagering tanks
Horizontal fermentation tanks designed to produce cleaner, brighter, and smoother beer.
Bright tanks
Storage vessels for all beers, wines, distillates. Includes carbonation stone to give that crisp taste to your drinks.
Our company: |
Exhibition
Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
