Certificate: | |
---|---|
Insulation: | |
Fermentation tank coolinig: | |
Packing: | |
Availability: | |
Quantity: | |
DGET-1000L
DGET
8438400000
Option A: 2-vessel(M/L+B/W+H), Its cost is relatively low, so it is suitable for customers with less budget.
Option B:3-vessel(M/L+B+W+H),this combination helps to improve the efficiency of mash.
Heating method: steam/electric/direct fire, for 1000L brewhouse, most of our customers choose steam heating, because it heats more evenly.
all grain brewing brewhouse
Inner wall stainless steel 304, 3.0mm;
surface wall stainless steel 304, 2.0mm
Dome top, conical bottom,
Top mounted manway
Insulation: polyurethane 100mm
Glycol cooling jackets on both cylinder and cone
With Inside 360 degree rotating CIP washing ball,CIP arm,Pressure gauge,relief&vacuum valve on top,dry hops port on top,sample valve,raking arm,thermometer(temperature PT100),carbonation stone (optional)
100% TIG welding with pure argon gas shield
Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
Testing pressure: 3 bar, working pressure: 1.5 bar

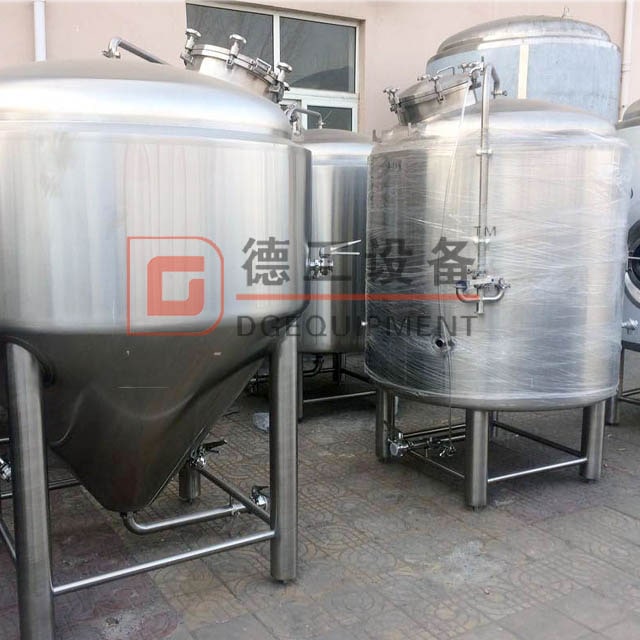

stacked conical fermentation tank
mechanical regulation valve&pressure valve
Bright beer tank/serving tank, jacketed or non-jacketed, 150 degree bottom cone,with carbonization device assort.
CIP cleaning, movable with wheel.
CIP cleaning
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.(one head or double head)
Beer kegs(20L,30L,50L...).
Steam boiler.(steam heating)
Auxiliary equipment | |
Plate heat exchanger | Effective cooling area One stage for cold liquor or two stage for city water and cold liquor Material:SUS304 or 316 Customize connection |
Hot water tank | For hot water storage Insulation:rock wool Insulation thickness:80mm Interior thickness:3mm Exterior thickness:2mm Heating:electric or steam heating Dished top,top mounted man way Sanitary liquid indicator CIP 360°rotary spray device Temperature sensor Completely SUS304 heavy duty legs with leveling pad |
Yeast adding tank | Inner tank polished, outside abrasive blasting Stainless Steel 304, brushed outer shell With valves and accessories |
Control cabinet | PLC Siemens or digital display Material: spraying plastic Electrical Parts: World wide brand Temperature Sensor assorted |
