1000L Automatic SS Craft Beer Equipment Turnkey Brewery Manufacturer in stock

The heart of any brewery is an efficient and consistent brewhouse.Utilizing state-of-the-art, PLC's and automation allows DGET to deliver semi-automatic or fully-automated brewhouses that deliver repeatable, efficient and high-yield brews at the right price.

We manufactures brewhouses ranging from 1bbl up to 100bbl. Brewhouses are available in 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 stainless steel.

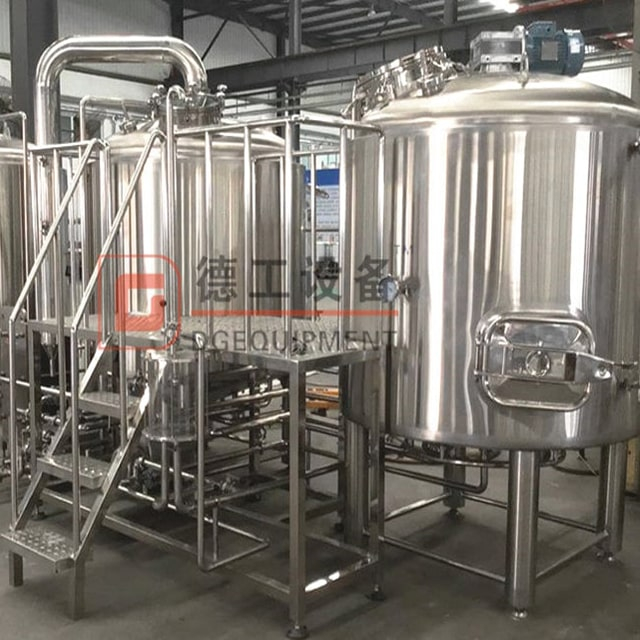

 Brewhouse unit (mash/lauter+boiling/whirlpool)

Brewhouse Unit:

• Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

• Hot water tank and cold water tank for optional

• Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

• Two stages or single stage heat exchanger for wort cooling

• Completely stainless steel integrated work platform

• Sanitary and efficiency wort pump

• All pipings and fittings

Top-manhole for feeding and checking

Heating method:

Steam heating(Optional):electric boiler;gas boiler;diesel boiler

Electric Heating(Optional)

Fermenting vessel in brewery

Fermenting Vessel details:

• Volume:1000L

• Design pressure: 0.3Mpa;Working pressure:0.12Mpa-0.15Mpa

• Polyurethane insulation, side and bottom insulated

• Dimple plate cooling jacket

• Cooling stage: cylinder and cone

• Interior surface: Polished, and welding joint acid cleaned

• Domed top,Stainless steel leg with adjustable leg bolt

• 304 stainless steel, TIG weld construction


• Reinforced stainless steel legs, leveling foot pads

• Shadowless side manway

• Multi-zone glycol dimpled cooling jackets

• Rotary spray-ball CIP 360° coverage

• Sanitary thermowell

• All butterfly valves included

• Side fittings: Glycol inlet/outlet, thermometer well, sample port, manway (side or top)

• Bottom fittings: Drain valve, beer outlet, carbonation unit (optional),Sample valve,pressure gauge, pressure regulating valve

• Dry hopping port on top(optional)

A set of fermenters

 Beer brewing equipment part

Such as lifting;Side manhole;Drain outlet...

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

Brewery equipment can be used in restaurants, bars and hotels etc.

After-sales service:

• After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.

• Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.

• For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.

Degong team and our clients

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you. Welcome!!!
