| capacity: | |
|---|---|
| Material: | |
| Thickness of material (mm): | |
| Quantity: | |
DGET-1000L
DGET
8438400000
Conical fermenters have a cone-shaped bottom with a valve at the point of the cone, instead of the flat bottom of a bucket or carboy. Solids collect in the cone and the valve makes for simple, sanitary removal of trub and yeast for disposal or repitching.
| Fermentation tank features: |
Regarding the quantity of fermentation tanks, configure according to customer requirements.
If you don't know how many you need, you can tell us your brewing plan, and we will recommend you a suitable solution.
Brewery equipment in cellar
Interior/Exterior Tig welded 304 SS
3mm Interior tank wall thickness
2mm Exterior shell wall thickness
100mm Polyurethane insulation on shell and cone
4N Exterior polish
Operating pressure 0.2Mpa (Tanks Tested 0.3Mpa)
Tri-clover sanitary fittings
Glycol Attachnets
Shadow less side man way door
0.2Mpa pressure/vacuum relief valve
Large dial pressure gauge
Ladder/hose hooks
Temp control thermowell
Large dial temp gauge with 12” probe
CIP arm with spray ball and 360deg of coverage
4 Butterfly valves (All Gaskets and valves included)
60 degree cone bottom with 25% head space
CE Certified

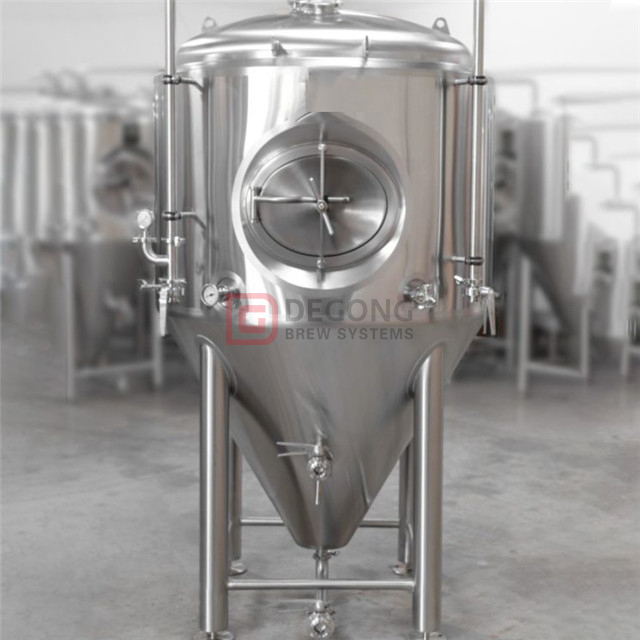

Beer fermentation tank details
Raking arm;drain outlet...
Cooling water inlet;Polished
Fermentation tanks is ready installed
| Our services: |
Quality control:
All stainless steel coils are purchased from high-quality steel supplier.All chemical composition and mechanics performances are controlled strictly.
All welders are qualified.
ISO9001 system assures all procedures done correctly.
All tanks are inspected completely before delivery
After-sales Service Provided:
2 years of tank and 6 months of accessories guarantee, lifelong maintenance at cost charge
7x24 hours per week email&phone available
Maintenance, return & exchanges services
Our Project display
| Contact information: |
If you want to know more about brewery equipment, please feel free to contact me. Visit our website
