| Thickness of material (mm): | |
|---|---|
| Heating source: | |
| Material: | |
| Quantity: | |
DGET-1000L
DGET
8438400000
| Brewery Equipment Main Configuration |
Before place a order,please let me know your details and requirements about your brewery project. There are so many factors to consider such as size, number of vessels, type of heat source, cooling the wort, as well as country of manufacturing and engineering origin.
Customized brewhouse according to your requirements
Brewhouse system
1000L mash lauter tun with steam heating
-2mm exterior shell and 3mm interior shell
-Glass manway
-Agitator with VFD controled motor and turbine reducer
-Grain rake with VFD controlled motor
-Wort lauter sight glass
-Laser cutting V-wire False Bottom/Filter
-Bottom mounted grain outdoor
1000L brew kettle./whirlpool with steam heating
-2mm exterior shell and 3mm interior shell
-Glass manway
-Agitator with VFD controlled motor
-Sanitary leveling sight glass
-Steam vent with condensate ring for kettle stack
-Tangential whirlpool inlet
Other auxiliary equipment
-2000L hot liquor tun with steam heating
-flexible auger/bucket elevator
-Hoppper and a malt hydrator
-Pneumatic valve
-Flow meter
-Hop back
-Working platform
-10m2 heat exchanger
-3T mash, wort and hot liquor pump
-50L Grant/buffer tank to guarantee lautering by gravity
-30L yeast feeder
-PLC control with touch screen
According to client's needs, various combinations of brewhouse can be offered as followings:
| 2 Vessel Brewhouses | Mash/Launter Tun + Boil Kettle/Whirlpool Tun Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank |
| 3 Vessel Brewhouses | Mash/Lauter Tun + Boil Kettle + Whirlpool Tun Mash (kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun |
| 4 Vessel Brewhouses | Mash (kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool Tun |
Raker&false bottom;Agitator;Spent grain hatch with slide;Sight glass
Tanks suitable for beer fermentation and storage.
They can be made to measure to suit every customer’s needs.
They guarantee the utmost hygiene, reliability, practicality in use, safety and durability.
The fermentation temperature is controlled in the cylinder of the tank through which a low-temperature glycol solution circulates.
Available in various models, these tanks are made entirely of AISI304 or SUS304/316 stainless steel.
Fermentation tanks can equip with top or side manway
| Model | 2000L |
| Working Area | 50-100m2 |
| Working voltage | 220V,230V,380V... |
| Working pressure | 0.15Mpa |
| Material | Interior (SUS304),thickness: 3.0mm; Exterior (SUS304),thickness: 3.0mm; Dimple jacket:1.5mm |
| Insulation | Polyurethane-thickness 100 mm |
| Temperature way | Double metal thermometer |
| Jacket Pressure | Design pressure 0.3 MPa, working pressure <0.2 MPa. |

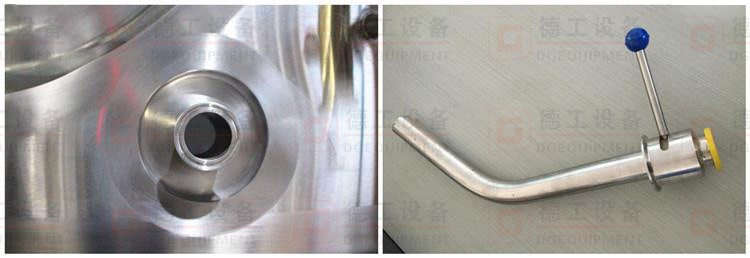

Spray ball;Temperature Sensor;Port; Racking arm
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
