DGET-1000L
DGET
8438400000
DEGONG's distillation equipment is researched and developed based on the research and development of brewers and engineers based on the global distillation market.
| Distillation Equipment： |
Our distilling equipment can make whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small-medium sized, centralized, automatic controlled, easy operating and beautiful outlook. Can be used small-medium sized plants, hotels etc.

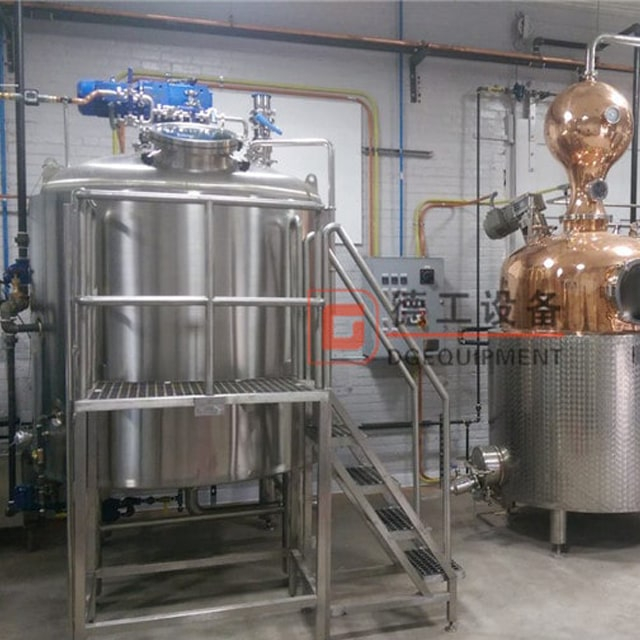

Mash tun and distillation equipment
Main Model components: still pot , gin basket, still columns, dephlegmators (condensers), purifier, coolant, CIP and connecting pipes.
Working capacity: 200L-6000L
Heating system: electricity or steam heating jacket（boiler can be available）
Materials: T2 red copper, SUS304,can be customized.
Trays: bubble caps & trays.
The still column and condenser
A water bath or steam heats mashes and fluids in a solid, specially constructed copper still. The still has a covering made of stainless steel which can be insulated if desired.
If necessary, an agitator can be installed in the upper part of the still. This is important for dry mashes and fruits. There is a uniform transfer of heat into the mash and all compounds are separated depending on their boiling point and boiling-characteristics. This is an important point for the separation of first runnings, middle distillate and tailing.
For efficient heating it is necessary for the firebox to have a special, solid construction, containing a large heating surface and this is realized by means of boiling tubes. These tubes cause a circulation of hot water directly from the heat source to the center of the still. Additionally, baffled water vessels and an exhaust gas heat exchanger increase the heating surface and efficiency.
The real heart of our distillation plants is called the "super aromator". This is a special distillation column, including a new construction of bubblecaps with increased copper surface and turbulent motion of the liquid. This causes a high quality of smooth and aromatic distillates and a reduction of higherboiling compounds. An intensive contact between fluid and vapour is guaranteed and realized by a variable filling level on the bubblecaps. On the caps there is an enrichment of lowerboiling compounds such as alcohol.
The "dephlegmator" is the last part of our distillation column and consists of a special cooling system. When the alcoholic vapor comes in contact with this cooling system, higher boiling compounds such as water are condensed and separated. There is a 3-way valve for drainage and closing and the possibility of an automatic cooling water control system. In addition to a CIP Cleaning System four inspection glasses are welded in position for the observation. For industrial use, stainless steel cladding of all parts is possible.Flanged joints are easy to clean because of invisible countersunk bolts.
A CIP System is the most comfortable. Hot cooling water is collected in a cooling water tank. After one batch a special high pressure pump presses hot water through internal cleaning nozzles into the still and aromator and a mechanical cleaning takes place. In addition to mechanical cleaning different detergents can be added.
Pack and ship in wooden boxes
Contact us to learn how you can make whiskey, rum, vodka, gin, and more with much of the equipment you already own. Whether you have a brewery or want a stand-alone distillery, we have everything you need.
DEGONG's distillation equipment is researched and developed based on the research and development of brewers and engineers based on the global distillation market.
| Distillation Equipment： |
Our distilling equipment can make whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small-medium sized, centralized, automatic controlled, easy operating and beautiful outlook. Can be used small-medium sized plants, hotels etc.
Mash tun and distillation equipment
Main Model components: still pot , gin basket, still columns, dephlegmators (condensers), purifier, coolant, CIP and connecting pipes.
Working capacity: 200L-6000L
Heating system: electricity or steam heating jacket（boiler can be available）
Materials: T2 red copper, SUS304,can be customized.
Trays: bubble caps & trays.
The still column and condenser
A water bath or steam heats mashes and fluids in a solid, specially constructed copper still. The still has a covering made of stainless steel which can be insulated if desired.
If necessary, an agitator can be installed in the upper part of the still. This is important for dry mashes and fruits. There is a uniform transfer of heat into the mash and all compounds are separated depending on their boiling point and boiling-characteristics. This is an important point for the separation of first runnings, middle distillate and tailing.
For efficient heating it is necessary for the firebox to have a special, solid construction, containing a large heating surface and this is realized by means of boiling tubes. These tubes cause a circulation of hot water directly from the heat source to the center of the still. Additionally, baffled water vessels and an exhaust gas heat exchanger increase the heating surface and efficiency.
The real heart of our distillation plants is called the "super aromator". This is a special distillation column, including a new construction of bubblecaps with increased copper surface and turbulent motion of the liquid. This causes a high quality of smooth and aromatic distillates and a reduction of higherboiling compounds. An intensive contact between fluid and vapour is guaranteed and realized by a variable filling level on the bubblecaps. On the caps there is an enrichment of lowerboiling compounds such as alcohol.
The "dephlegmator" is the last part of our distillation column and consists of a special cooling system. When the alcoholic vapor comes in contact with this cooling system, higher boiling compounds such as water are condensed and separated. There is a 3-way valve for drainage and closing and the possibility of an automatic cooling water control system. In addition to a CIP Cleaning System four inspection glasses are welded in position for the observation. For industrial use, stainless steel cladding of all parts is possible.Flanged joints are easy to clean because of invisible countersunk bolts.
A CIP System is the most comfortable. Hot cooling water is collected in a cooling water tank. After one batch a special high pressure pump presses hot water through internal cleaning nozzles into the still and aromator and a mechanical cleaning takes place. In addition to mechanical cleaning different detergents can be added.
Pack and ship in wooden boxes
Contact us to learn how you can make whiskey, rum, vodka, gin, and more with much of the equipment you already own. Whether you have a brewery or want a stand-alone distillery, we have everything you need.
