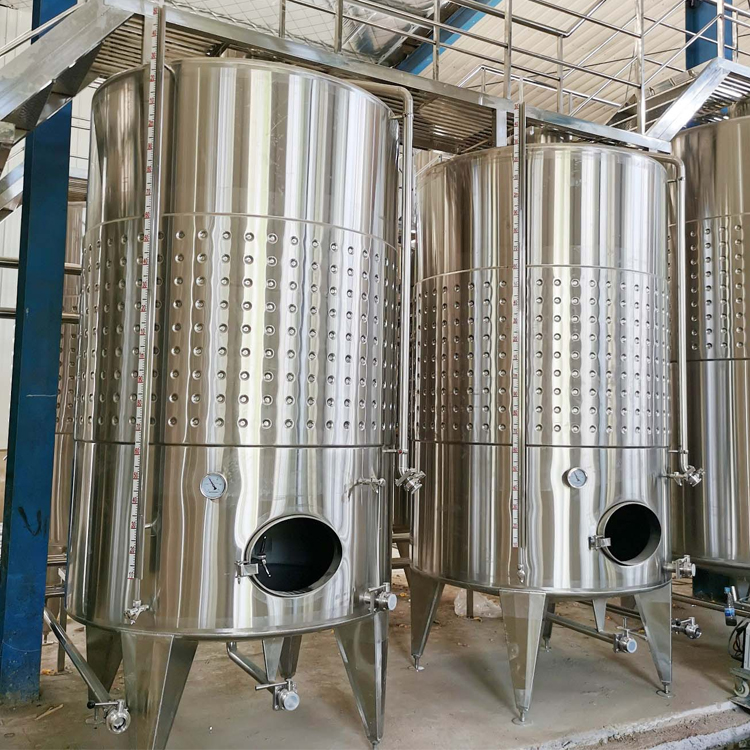

Application of Stainless Steel Fermentation Tanks in Winemaking

Technical Advantages of Stainless Steel Fermentation Tanks

Stainless steel fermentation tanks have become a crucial component of modern red winemaking processes. Their core advantages are reflected in multiple dimensions:

Material Properties:

• Made of food-grade 304 or 316L stainless steel, they offer excellent corrosion resistance.

• Surface roughness Ra ≤ 0.8μm effectively reduces the adhesion of tartaric acid crystals.

• Completely inert, they do not extract tannins, which can affect the wine's body, unlike oak barrels.

Process Control:

• Integrated temperature control jackets enable precise temperature control within ±0.5°C.

• Equipped with a CIP cleaning system, they ensure hygienic standards meet GMP requirements.

• The modular design facilitates capacity expansion to meet the needs of wineries of varying sizes.

Special Considerations for Red Wine Fermentation

Stainless steel fermenters require specialized optimization for the unique winemaking process of red wines:

Maceration Management:

• Equip with a pneumatic punch-down system or a rotary fermenter.

• Designed with a width-to-diameter ratio (H/D ≈ 1.5) to promote uniform extraction of pigments and tannins.

• Integrated sampling valves facilitate monitoring of maceration levels.

Oxygen Control:

• Install a micro-oxygenation system (MOX) to precisely control dissolved oxygen at 2-4 mg/L.

• Use a floating top cover to minimize headspace oxidation.

• Equip with a nitrogen shield to prevent wine oxidation.

Key Technical Points for Equipment Selection

Stirring System Selection:

• For special processes requiring hydrogen exposure (such as cold stabilization), a model with a built-in stirrer is recommended.

• The propeller stirrer speed is recommended to be controlled between 15-30 rpm.

• Consider using a variable-frequency motor for stepless speed regulation.

Mobility and Installation:

• Large fermentation tanks (>5000L) are recommended to be fixed-mounted and connected to a centralized cooling system.

• Small and medium-sized tanks (500-5000L) can use a mobile base with heavy-duty universal wheels.

• Micro-scale laboratory tanks (50-500L) are recommended to be equipped with a hydraulic lift platform.

Cutting-edge developments in process innovation

Smart Fermentation System:

• Integrated online monitoring of multiple parameters, including pH, DO, and specific gravity

• Predicts fermentation endpoint using AI algorithms

• Supports remote monitoring and parameter adjustment

Specialized Surface Treatment:

• Electropolishing improves surface finish

• Passivation enhances corrosion resistance

• Nanocoating inhibits microbial adhesion

• Economic Benefits of Practical Applications

Red wine production using stainless steel fermentation tanks can achieve significant cost improvements:

• Fermentation cycle shortened by 20-30%

• Wine loss reduced to <3%

• Energy savings of 15-20%

• Labor costs reduced by 40%
