DGET-5HL
DGET
8438400000
At DEGONG we have striven for the very latest and most modern brewery equipment, fabricated from high quality stainless steel tanks that gives beers such exceptional flavour.
Usage:Pub/hotel/restaurant beer brewery equipment
| Two important systems in the brewery |

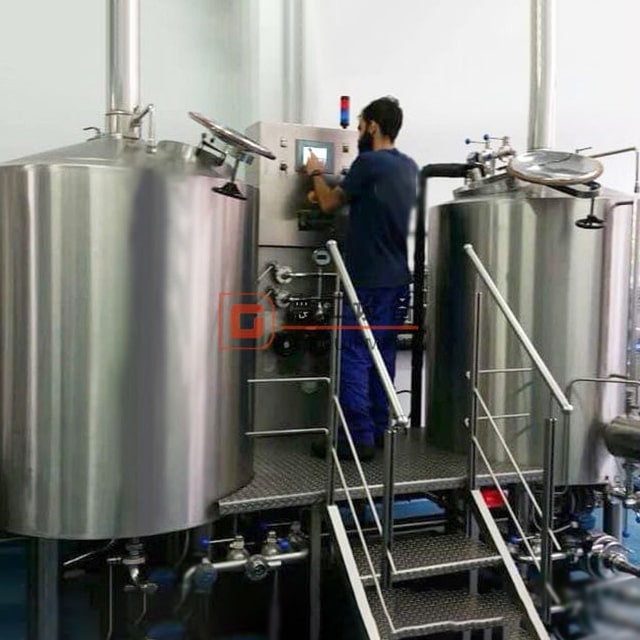

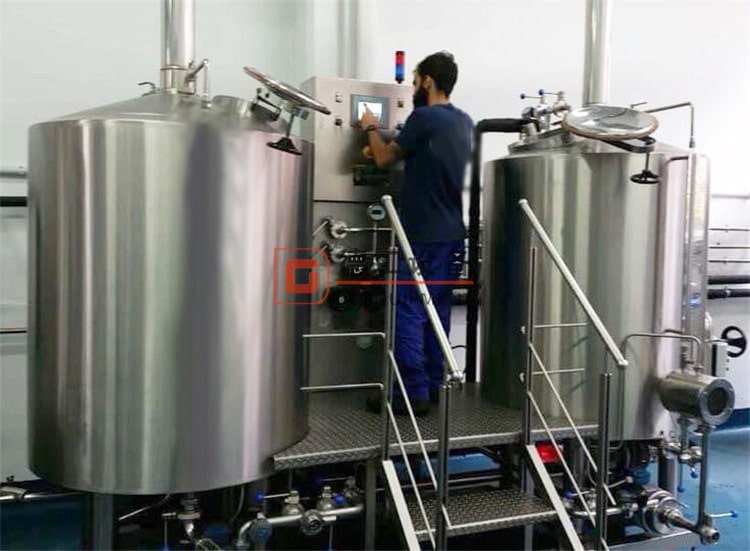

The 5HL brew equipment is easy to operate
Standard Brewhouse system configuration:
1. Mash / Lauter Tun with side grain out access/Rakers
2. Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control
3. Semi-Automated Controls with PLC & Remote Access Support
4. 304 Stainless Steel Sanitary Pumps with VFD Controls
5. 304 Stainless Steel Plate Heat Exchanger with integrated temperature controls
6. Manual Sanitary Butterfly Valves
7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
8. Semi-auto control cabinet
9. High accuracy temperature sensor, PT100
10. Heating: dimple steam jacket/ stainless steel electric heating elements
Options:
· Integrated CIP System
· Full-Automation PLC Control System
· Hot Liquor Tank –Designed and Sized for Double Brew efficiency
· Cold Liquor Tank –Fully insulated and integrated
· Air Actuated Automatic Butterfly Valves
. All brewhouse pipelines are used automatic argon protect welding.
Fermenting system
Beer fermenters and equipment for sale
We offers a wide array of fermenters and brite tanks that are designed accordingly to our customers’ specifications and their needs. All of our fermenters have an added bonus of functioning as both a fermenter and BBT tank.
Beer brewing kits for fermentation tanks
Safety valve – This special overpressure relief valve is designed to protect the tank against overpressure by a pressure higher than that for which it is certified and dimensioned. The overpressure relief valve is most often combined with a vacuum relief valve that protects the tank from collapse under vacuum (for example, when the tank contents are drained out using the pump).
Sample valve – it is used for sampling the product during its tasting and laboratory tests. The valve can be further equipped with a spiral attachment that eliminates the foaming of the beverage and speeds up the sampling process.
Dimple cooling jacket– Cooling the tank is done with liquid which flows in double jacket of the tanks (most commonly a glycol water is used). The coolant flows through the double jacket channels of the container and circulates between the jacket and water cooler. The temperature in the tank is then controlled by a control system that compares the measured temperature in the tank with the desired temperature.
Welcome to visit our website and contact me to get more useful information, Cheers!!!
