We provide you with only the best quality vessels that meet all of your requirements.
All of our vessels are made with the highest of standards and all pressure vessels are designed verified and certified in accordance with all of the latest Chinese High Level welding and pressure vessel standards.
We know quality tanks inside and outside, so can fabricate specialty tanks for all of your brewing requirements. Things we take into consideration are:
Beer types and volumes
Brewhouse type and heating method
Beer fermenter you needed
Room requirement
Local Industrial voltage
Temperature requirements
Future expansion allowances
Your brewing experience

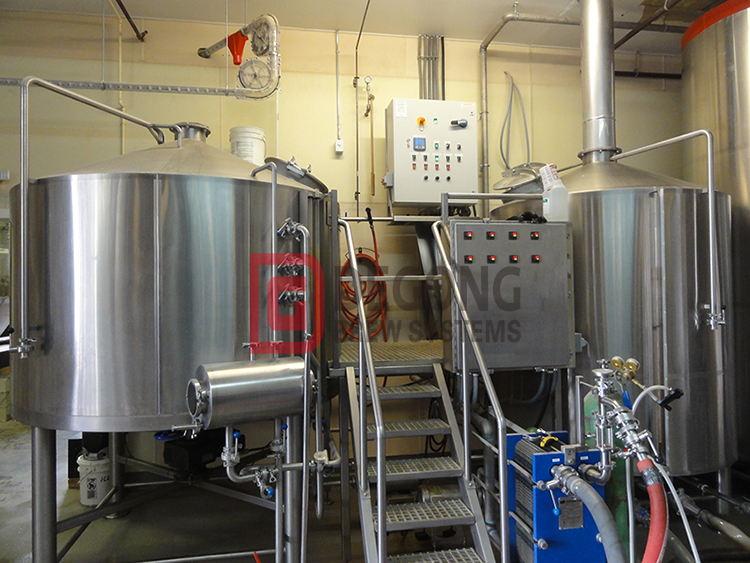

1000L 2vessel brewhouse system with PHE
Mash/lauter tank: Used for mashingin, lauter, recirculation, and sparging.
Stainless steel material 304/316
Exterior thickness: 2.0~3.0mm
Interior thickness:3.0mm~4.0mm
Flange&Dish head
Polyurethane 80~100mm
Rotary cleaning ball
Recirculation with sight glass
Coned bottom
Raker knife with variable speed drive
Falsed Bottom
Ring of sparging
Temperature senser
Separate mash tun, lauter tank available
Kettle/whirlpool tank: Used for boiling and whirlpool of the wort
Stainless steel material 304/316
Exterior thickness: 2.0~3.0mm
Interior thickness:3.0mm~4.0mm
Stainless steel heating jacket, on the bottom and around the side
Flange&dish head
Spray cleaning ball
Temperature senser
Equip with agitator
Condenser device
Separate kettle, whirlpool tank available
Working Platform
Optional:Other accessories
Wort plate heat exchanger
Yeast adding tank
Oxygen filling device
Hops back
Hot water tank
Screw conveyer
Grist case

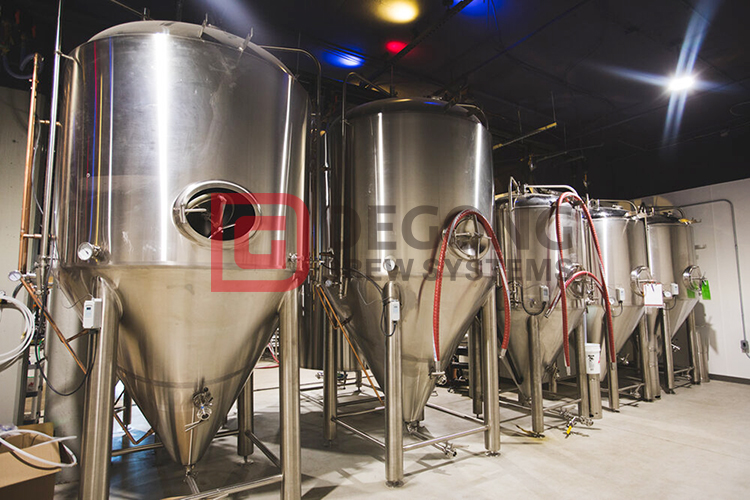

Conical bottom 60 degree fermenting vessel
FV Features:
Conical bottom, cylindrical top, stainless steel 304 double walled jacket tanks
Bottom cone 60degree, allow the yeast to flow towards the cone's apex
Compression resistance design, design pressure 0.3Mpa, working pressure 0.15Mpa
Dimple Plate Jacket for cooling, Stainless steel cooling belt or Miller board cover the body & Cone bottom to efficiency cooling all the parts
Both the tank and the jacket will have 48 hours pressure test&inspection
Stainless steel legs(3 or 4), with screw assembly to adjust leg height
Dry hops adding port, carbonization port,racking arms optional
Stainless steel ladders for large tanks
All relative valves: pressure regulating valve, safety valve, sampling valve, drainage valve food and sanitary grade stainless steel 304 material
PU(Polyurethane) or Rock wool Foam Insulation, Cover Body & Cone Bottom to Keep Thermal
Single tank, single control
Top or side manhole
Adjustable feet
