Copper Spirit Alcohol Vodka Distiller Gin Distilling Equipment 500L distilling system

A flexible modular system with free combined components.Our high-performance Rectification Columns for effective rectification and cleaning of the distillate easily realize alcohol concentrations of up to 96% vol at any desired purity level.
Heating method:
Availability:
Quantity:
  • DEGONG 500L
  • DEGONG

QQ截图20200717141224-min

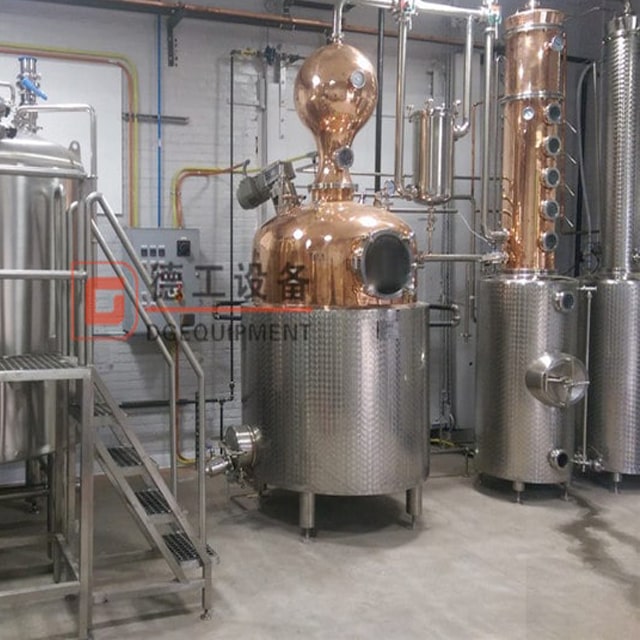

500L VODKA COPPER DISTILLERY SYSTEMS


Main Features:

1. A flexible modular system with free combined components.

2. Optimized fine Distillation Columns for premium Distillates

3. Our high-performance Rectification Columns for effective rectification and cleaning of the distillate easily realize alcohol concentrations of up to 96% vol at any desired purity level.

4. Effective cleaning of the entire distillation unit by means of integrated high-pressure rinsing system.

5. Copper Catalytic Converter technology guarantees a reduction of unwanted acid content as well as cyanide and ethyl carbamate levels.

6. The three-way ball valve can be used to make the distillation equipment multi-functional, and different spirits can be made according to customer needs.

7.Coordinated fine distillate bottoms with maximized copper contact surface.This continuously further developed design ensures that the desired flavors unfold and are separated from unwanted components

details-min

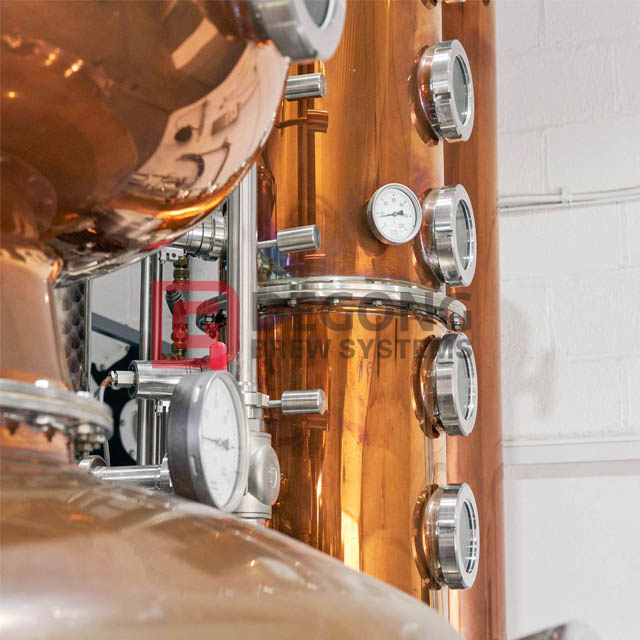

More details of distiller for spirits


Parameters:

Working capacity:

100-5000L

Total Volume:

working capacity*130%-150%

Voltage:

200V-240V/380-440V/600V

Weight:

500kg-5000kg

Material:

SUS304/SUS316/COPPER

Motor:

3-phase power,UL/CSA/CE/ATEX,or Customizable brand

Welding Technology:

High purity argon arc welding

Heating Method:

Steam/Electric

Distillation method:

Liquid distillation by default, custom solid distillation can be customized

Running time:

2-8h,Customizable continuous distillation

Shape:

Upper and lower heads/Customizable

Distilled products:

Gin/Whisky/Vodka/Brandy/Tequila/Rum/Bourbon

Optional module:

1.Cooling water recycling system
2.Light system
3.Alcohol storage tank system(Head/Heart/Tail)
