DEGT-7BBL
DEGT
8438400000
7 BBL Steam Fired Brewhouse Includes:
Mash Tun / Lauter Tank
Brew Kettle / Whirlpool
Hot water tank
Stainless Steel Work Platform with Handrails
Fully Welded Sanitary Process Piping System
Complete Electrical Package
7 BBL Steam Heated Brewhouse Specifications
Steam heating: The equipment is equipped with a steam jacket and a steam boiler is also provided. (Steam boiler: electric boiler, diesel boiler, gas boiler.)
Mash Tun/Lauter Tank configuration
Feature: grain mashing, lautering and sparging
inner diameter all stainless steel T-304 construction, dished top and bottom.
Fully welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Insolution: Polyurethane-thickness 100mm.
Inner surfacr treatment: welds grinded to Ra 0.6μm
Jacket pressure: design pressure 0.3MPa, working pressure ＜0.2MPa
CIP 360 degrees Omni bearing cleaning
Four stainless steel legs, with feet for leveling and height adjustment, base plate with two holes for fixing to the floor; with reinforcements between the legs.
Kettle/Whirlpool configuration
Feature: wort boiling, hopping and whirlpool
inner diameter all stainless steel T-304 construction, dished top and bottom.
Glass top mahole
Steam condensewr with spray nozzles
Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
4 pcs completely SUS304 heavy duty legs withy leveling
Hot water tank configuration
Feature: boiling water
TIG welding with pure argon gas shield
Glass top manhole
Temperature way： Double metal thermometer
Thermo well for high accuracy temeprature sensor
4 pcs completely SUS304 heavy duty legs withy leveling
Wort pump / hot watre pump
Capacity: 3000L/h, stainless steel 304 food deliver pump. Power: 0.75KW.
The use of advanced inverter control of motors, energy-saving mute. The motor speed can be controlle and adjusted by transducer.
Accessories of brewhouse

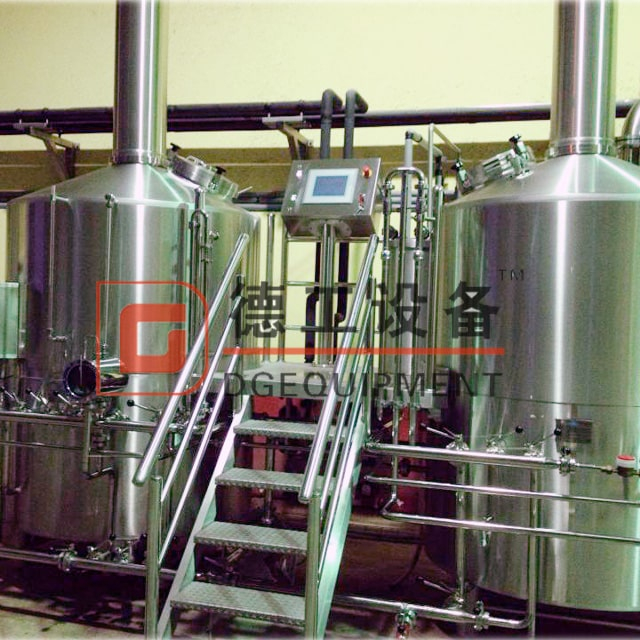

Details of brewhouse
Fermentation tank configuration
Oval head cone bottom, cone 60° resist compression design, dripping
TIG welding wit pure argon gas shield
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Full sanitary metallic sealed sampling valve
Hydraulic shock pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Pressure gauge, thermometer gauge, sample valve dry hop port

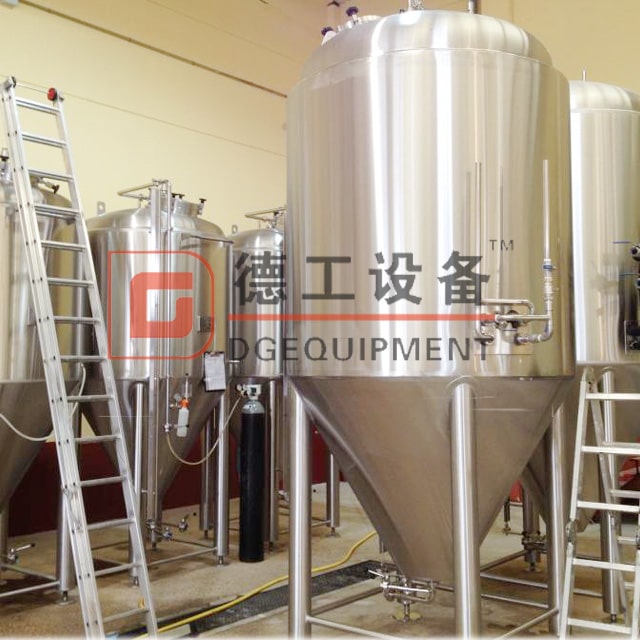

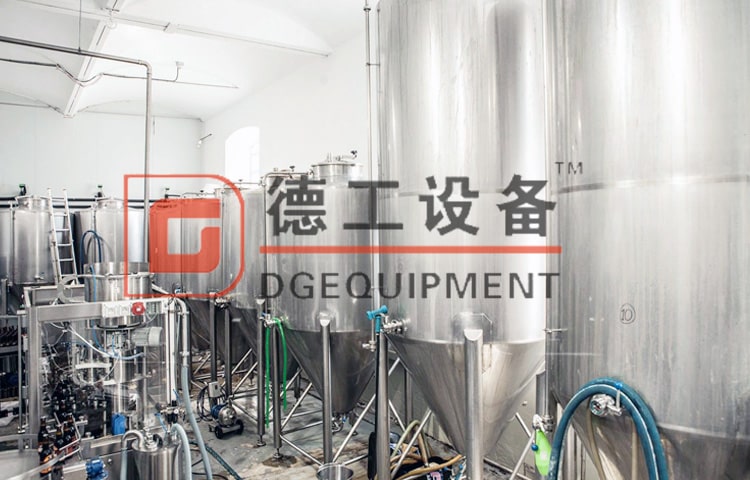

A row of fermentation tanks
Details of fermentation tank
Mill system: Malt crushing equipment used disc type mill or roller mill.The size of particle can be adjusted
Cooling system: Beer production cooling system generally use the liquid ammonia refrigeration compressor unit and the refrigerant tank for the temperature reducing.
If you want to order, please contact with me freely.
