DGET-7BBL
DGET
8438400000

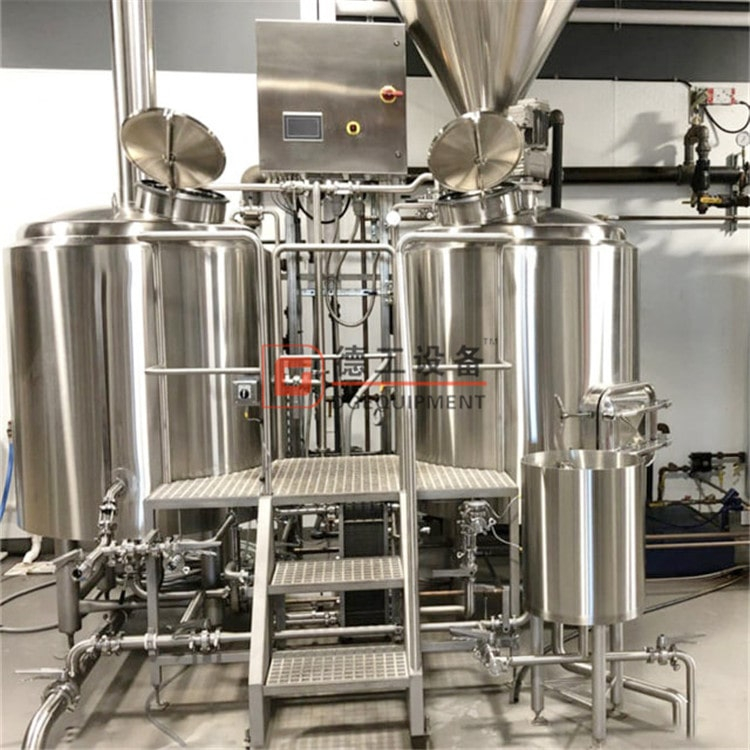

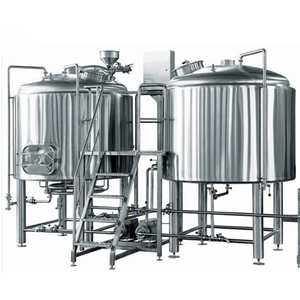

7BBL brewhouse system with platform
| Brewhouse system features: |
Mash Tuns:
heated for electric systems or steam jacketed
Insulated & non-insulated available
Available with a rake / plow on sizes larger than 5bbl
Grist hydrators available on the larger sizes
Circulation ports (double tri-clamps) are standard
CIP Port
Automated wort grant available

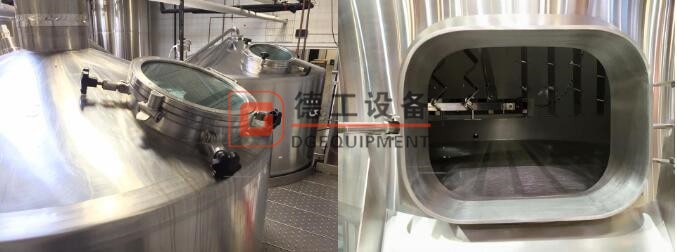

Top manhole for adding malt or hops;raker
Brew Kettles:
Insulated & non-insulated available
Tangential whirlpool port standard
Condensate stack adapter available
Condenser available
CIP Port
Raker;Top manhole;Spent grains port
Hot Liquor Tanks:
Electric element tri-clamp ports or steam jacketing
Insulated & non-insulated available
Tangential input is standard on our turnkey systems.
This is used to recirculate the water to be sure the temperatures are consistent throughout the tank.
CIP Port
Platforms:
100% Stainless steel
Sized to match the brewing tanks in your system
Basic configuration technical parameters:
Inner shell:3mm;Outer shell:2mm;Jacket:1.5mm;
Insulation:100mm polyurethane
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional.
Two stages heat exchanger for wort cooling.
Completely stainless steel integrated work platform.
Sanitary and efficiency wort pump.
All pipings and fittings.
Every Weld Blended and Finished to a Smooth Sanitary Finish
Stainless steel brewing platform & integrated stairs or ladder with adjustable foot pads for platform leveling
Stainless steel hard piping and brewhouse with butterfly valves, Sight glass and all required clamps and gaskets to hook tanks together
Stainless steel steam condensation stack.
Sanitary centrifugal pump for mash, wort or hot water transfer
Fixed speed or various speed agitator and rake for efficient lautering and spend grain removing
High Efficiency multi-pass plate type heat exchanger
Interior and exterior finish bright polish to 0.6um
The brewery process:
Milling-Mashing-Lautering-Boiling-Whirlpool-Cooling-Fermenting-Maturing-Filtering-Packing
The grains are mashed in the mash tun and then separates the wort from the grains through a plate heat exchanger and then to the fermenter.
| More information: |
Warranty period:
a. For main parts of the equipment such as brewhouse tank, fermentation tank, bright beer tank, hot water tank, glycol water tank, etc... the warranty period is 24 months.
b. For other components such as refrigeration unit, control components, etc... the warranty period is 12 months.
c. Our equipments have been approved by CE,TUV. Our equipments is accord with the German standard quality.
TUV/ISO/CE certification
Contact information
If you are interested in our beer brewing equipment,please feel free to contact me.
