500L Beer Brewhouse Free Combination Craft Brewing System for Sale

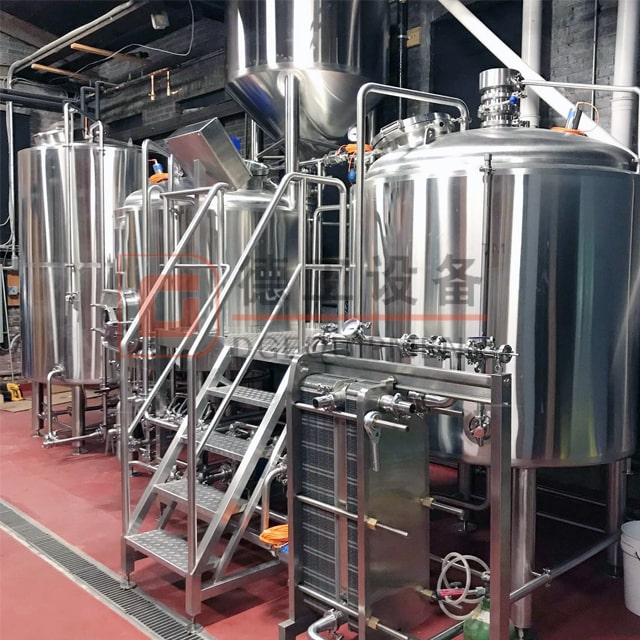

Complete 500L beer brewing equipment includes 2 tank 2 vessels and 1000L fermenter. The brewhouse based on 2 tank 2 vessel design: mash/lauter tun+boiling/whirlpool tun. You can add a hot liquor tank to improve mashing efficiency.
Material:
Insulation:
Heating method:
Quantity:
  • DGET-500L
  • DGET
  • 8438400000


500L Beer Brewhouse Free Combination Craft Brewing System


750BW-min


500L mash/lauter tun

Gross volume/total volume: 650L

Washing way:CIP washing device

Insulation material:polyurethane

Insulation thickness:80mm

Lauter way:Sucktion filtering by variable frequency filter pump/Balance tank gravity filtration

Glass balancing tank

Raking system:top placed,drain outlet device,power:0.55kw;revolving speed:0-60rpm frequency control

Filter sieve plate:milled,separation distance:0.7mm

Drain outlet way:dry outlet,drain outlet hole:DN300

Tank top:us dish seal,whole glass manhole φ400mm,Explosion-proof sight light(charged)

Malt and water mixer

Up seal head thickness:3mm,Barrel body inner plate thickness:3mm

Out barrel body plate thickness:2mm,hypocone seal thickness:4mm,hypocone out plate thickness:2mm

Inner plate acid pickled,out plate surface:brushed surface plate,welding seaming polished.

EXhaust way:inner door exhaust

Tank body procesing technic:Argon arc welding

Control mode: PLC automatic control (combined with some manual control)



500L boiling/whirlpool tun

Gross volume/total volume:500L/650L

Heating way:steam heating according to dimple plate and jacket

Steam jacket thickness:2mm,dimple palte thickness:1.5mm

Steam jacket pressure:0.3Mpa,subdivision control

Washing way:CIP washing device

Temperature measurement way:temperature probe PT100, Temperature transmission, temperature control screen display

Insulation material: polyurethane

Insulation thickness: 80mm

Temperature control; Pressure control; Security components

Tank processing technology: all argon welding

Control mode: PLC automatic control (combined with some manual control)

Tank top:us dish seal,whole glass manhole φ400mm,Explosion-proof sight light(charged)

Up seal head thickness:3mm,Barrel body inner plate thickness:3mm

Out barrel body plate thickness:2mm,hypocone seal thickness:4mm,hypocone out plate thickness:2mm

Inner plate acid pickled,out plate surface:brushed surface plate,welding seaming polished.

Exhaust mode: indoor exhaust



2-vessel 3D-min



Details of brewhouse system

The pipeline is concise and centralized, convenient to control

Craft valves: sanitary clasp butterfly valve, rubber pad, gear Angle adjustable handle

Craft pipeline: argon arc welding, single-side welding and double-side forming, seamless polishing inside and outside of the welding seam, rough buffing of non-woven wheel

Sampling device: adopt plug type sterile sampling valve

Pipe sight glass: clear tube sight glass is provided at filter outlet, filter reflux and whirlpool  inlet

Mashing water inlet:water inlet flowmeter, flow control valve, inlet water thermometer

Steam pipeline: flanged connection is adopted for safe connection without leakage; Pneumatic Angle seat valve control.

Operation platform: The countertop is made of water-free, non-slip large punching stencil


750BW 细节2-min

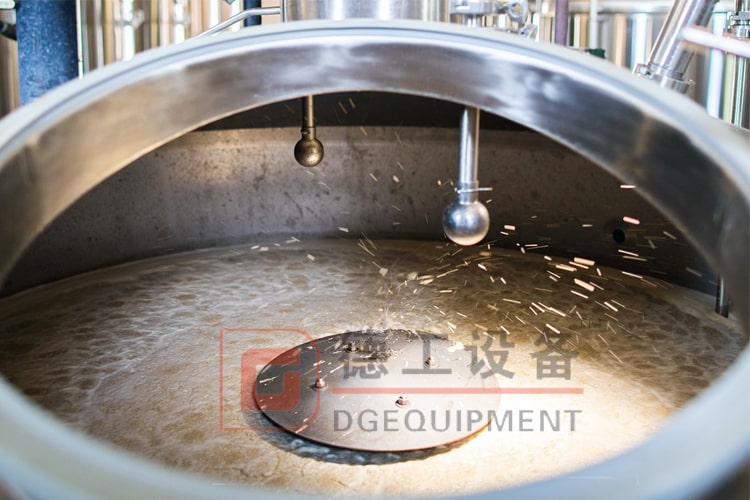

750 mash 细节-min


750 BW细节


If you are interested in beer brewhouse, please feel free to contact me directly.
