| 7BBL BEER BREW SYSTEM OVERVIEW |
Mash tun
The mashing tun/kettle is made out of stainless steel or copper. Mash tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation.
Lauter tank

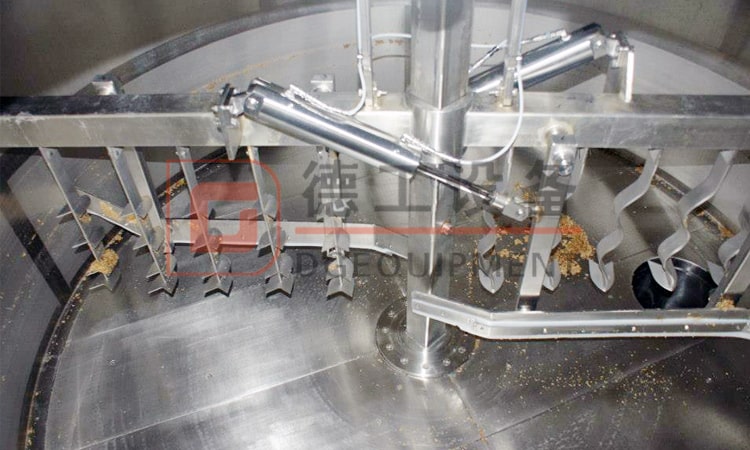

The lauter tun is used for filtering and clarifying the sugar liquid (called wort) out of the heated water-malt mixture (called mash) that comes from the mashing tun. It has a design with a false bottom in stainless steel v-wire and a raking gear that has the function of an agitator, a rake and a spent gain remover. This is a very unique and helpful tool because after filtering the spent grains will be removed from the lauter tun, saving a lot of time and energy of the brewmaster.
Boiling Kettle/Whirlpool tun
After lautering, the beer wort is boiled with hops (and other flavourings if used) in a tank known as a kettle/whirlpool tun. The boiling process is where chemical and technical reactions take place, including sterilization of the wort to remove unwanted bacteria, releasing of hop flavours, bitterness and aroma compounds through isomerization, stopping of enzymatic processes, precipitation of proteins, and concentration of the wort.
Vessel brewhouse configuration
Mash/lauter tun+boiling tun+whirlpool tun
Mash tun+lauter tun+boiling/whirlpool tun
Brewhouse details
Constructed of SUS 304; Brushed outer shell
20%~30% head space
Insulation: polyurethane
Thickness of insulating layer: 80mm
Interior thickness: 3mm, Exterior thickness: 2mm
Heating: Steam, Electric or Direct fire.
Mechanical agitation and raker system: frequency control
Top mounted manway, sight glass optional
Cleaning: 360°rotary spray cleaning ball
False bottom: V-Wire False Floor Included in Lauter Tun – virtually guarantees consistent wort flow
Liquid-level with scale connection pipe
Condensate outlet pipe at kettle
LED light fixture
Thermowell for temperature,PT100 Temperature Probe.
Dished top
Safety combination
sus304 operation platform
stainless steel raker
FV&BBT advantage
1-All the tanks use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2-Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3-All the tanks will do water and pressure test when finishing. Pressure test is 2-4bar;
conical FV & brite tank
Brite tank details
Tri-clamp butterfly valves, Sterile sample valve
Micromatic level gauge, PVRV
Clamps and gaskets, pressure gauge, carbonation stone
Stainless steel legs with stainless leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish polished to a sanitary finish
Interior finish pickled and passivated
Exterior brushed
Fully welded exterior shell
Dished top and bottom, with an average of 15%-20% head space
Carbonation port
Side or top manway door,
Dimple jacket cooling jackets
Polyurethane insulation
Level gauge connections
CIP arm and spray ball
Details of bright beer tank
If you are interested in beer brew system, please feel free to contact directly.
