DGET-500l
DGET
8438400000
Craft beer is becoming more and more popular, and many people have become loyal lovers of craft beer. When you go to a grill, restaurant or bar, beer is essential,and in these places, craft beer occupies a large market. Slowly, many restaurants/brewpub choose to have their own breweries. On the one hand, they can provide a variety of beers. On the other hand, the brewing equipment is very attractive to craft beer lovers, which can attract more customers. 500L/5HL brewery equipment is a good choice for restaurants

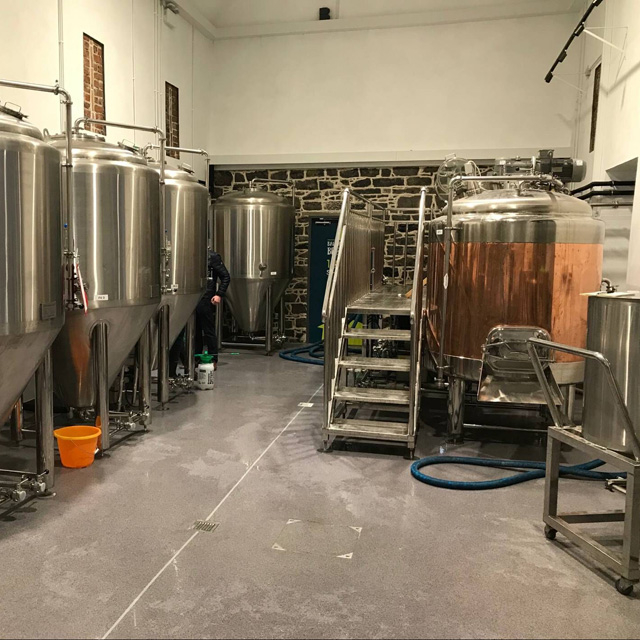

Pictures provided by DEGONG Customers
The 5HL brewing equipment belongs to a small brewing equipment with simple operation and easy installation. The floor space is small and the height required of the room will not be too high.At the beginning, you can choose to start with 2 or 3 fermentation tanks.After the brewing technology is mature and the market is stable, the production can be expanded by increasing the number of fermentation tanks. In short, 5HL brewing equipment is a good start
5HL brewery equipment description
System | Components | Capacity | Specification |
Milling System | Miller | 300-500 KG/H | Double Roller,Noise<60db |
Brewhouse System | Mash/Lauter tun | 500L | Mashing Process:Decoction.Infusion.Multi-step infusion Remarks: For smaller pub brewery equipment, we offer Combination 2-vessel brewhouse: Mash/Kettle + Lauter tun/Whirlpool Combined. |
Brew Kettle/ | 500L | ||
Hot Water Tank | 1000L | ||
Heat exchanger | 5 SQM | Stainless steel plate | |
Fermentation System | Fermentation Tank | 500L / 1000L | Top manway/Side manway All necessary accessories on tank’s body,including breathing valve,Cleaning ball,sample valve,temperature sensor,pressure gauge,mechanical regulation valve |
Yeast Adding Tank | 5L / 10L | SUS304 Stainless Steel | |
Cooling System | Glycol Water tank | According to quantity of fermentation tank | Equiped with PU level indicator |
Chiller | According to glycol water tank | UL/CE certified electric elements,Copeland compressor | |
Pump | 3T | ||
Cleaning System | Sterilization Tank | 50L | SUS304 full welded |
Alkali Tank | 50L | ||
Pump | 3T | ||
Control System | Control Cabinet | PID / PLC | Manual/Semi-automatic/Automatic |
DEGONG Brewing equipment professional manufacture team
1.Mirror Polishing
- Inside Polishing: Overall polishing to 0.4μm without dead corner .
- Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
- Purpose: Make sure the inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer tanks looks more like an artwork.
2.100% WIG Welding
- All welding is TIG welding.
- All welding is Full welding.
- All welding is double side welding.
- Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong.
DEGONG is a very professional beer brewing equipment manufacturer. Whether you need microbrewery equipment, brewpub brewing equipment or commercial brewery equipment, DEGONG can provide a complete set of brewing systems according to your needs.
If you have interest in DEGONG brewing equipment,welcome to contact me freely.
