DGET-4000L
DGET
8438400000
Cellar tanks :Fermenting vessels

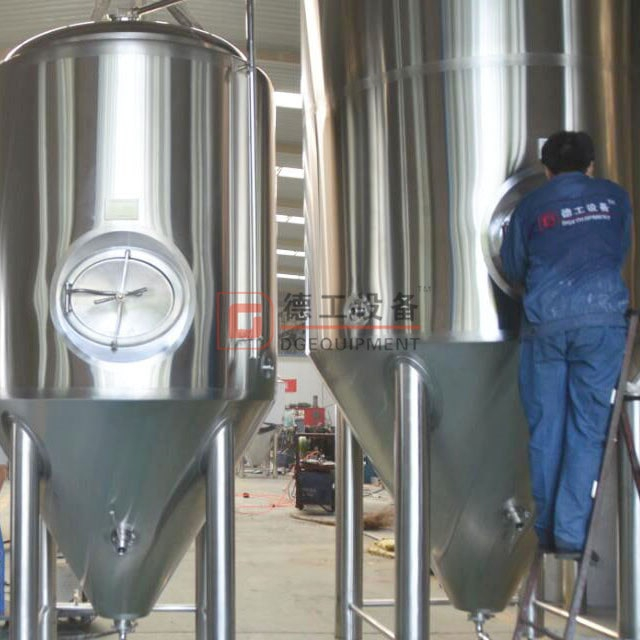

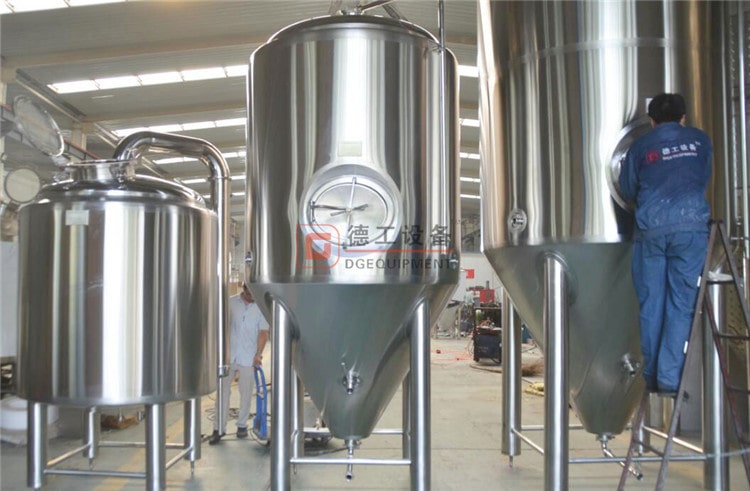

Cellar tanks 4000L fermenters in degong factory
Main Features:
Designed and manufactured according to client.
All material according to Euro standard.
Main construct is made 304 Stainless Steel
Inner Shell: 3mm;Outer Shell: 2mm;Cooling jacket:1.5mm
Design pressure (2bar), testing pressure 3bar, designed to suit all types of craft breweries.
25% headspace for fermenting process.
Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.6µm sanitary finish.Tank outside is 2B stainless steel plate(optional brushed stainless, #4 finish).
Shell and bottom cone cooling jacket for better temperature control.
Main Components:
Manhole on the top head (standard).
Level Indicator (standard) for inner tank.
Vacuum/Pressure combined valve.
Tank top fittings, pressure gauge.
Optional : Pressure keeping valve with sight glass for controlling and monitoring fermenting process.
Built in rotary spray ball within the inner tank for cleaning.
Optional : Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.
Manual ball valve for easy glycol changing over thus temperature control.
Other customization possible upon request.

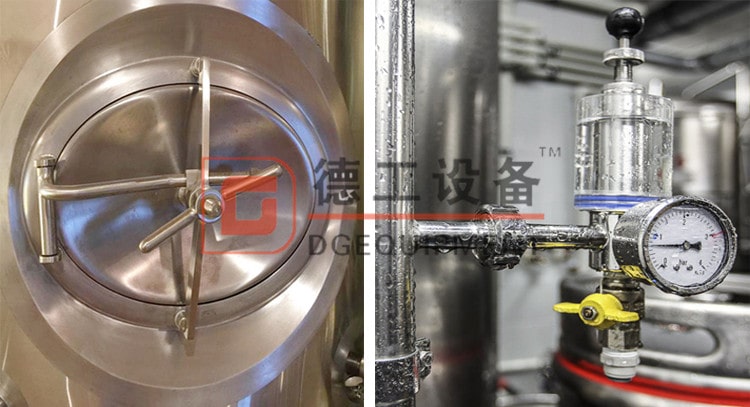

Side manhole;Mechanical control valve；spray ball; Temperature probe

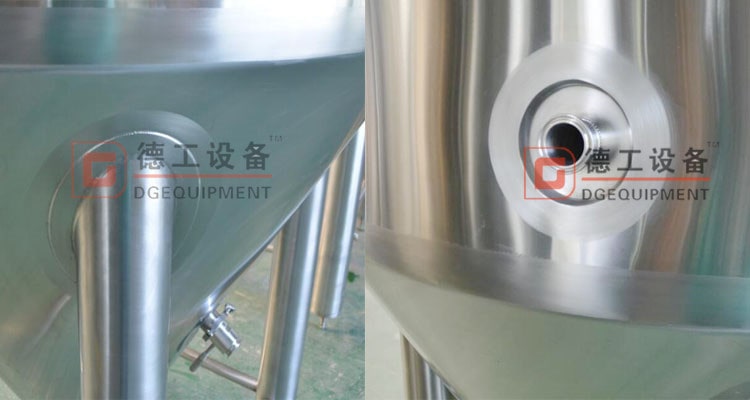

Fermenting vessel polish welding details
