Thickness of material (mm): | |
---|---|
Material: | |
Heating source: | |
Availability: | |
Quantity: | |
300L
DEGONG
This is a distillery/plant equipment, working capacity from 100liter to 10000liter for your choice.
Stainless steel SUS304 still pot or full copper material for your choice, or stainless steel inner tank and copper dish head for your economic choice.
The dephlegmator, condenser, parrot spout and gin basket option.
Distilling Column material: stainless steel SUS304, full red copper, glass for your choice. 4 column plate, 6 column plate, 8 column plate, 10 column plate for your option.
Full copper column tray, high quality, sanitary level.
The max alcohol concentration can reach 92%-95%.
Heating way: electric elements with oil/water jacket, also steam heating is ok if you need.

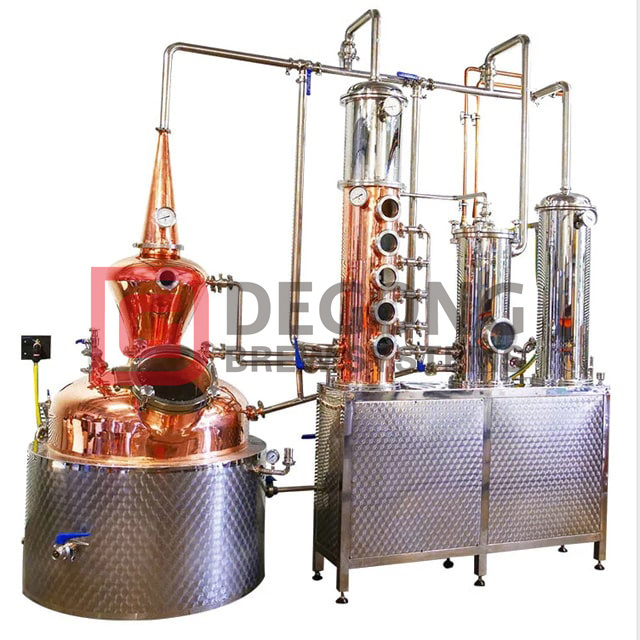

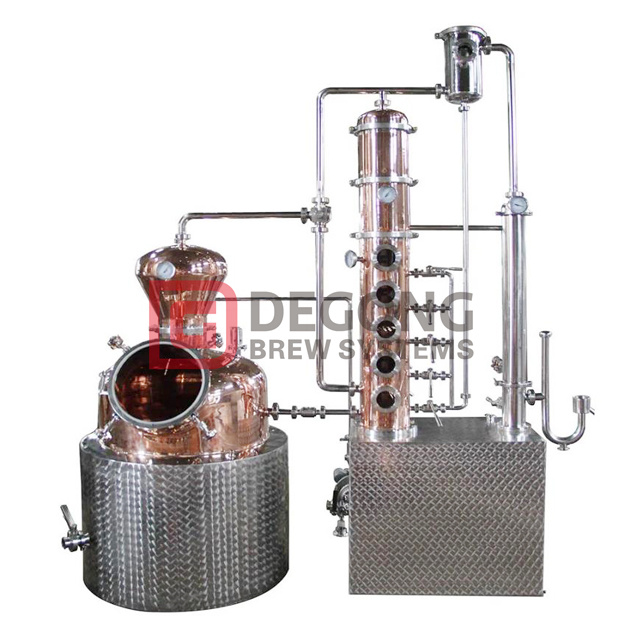

Copper & stainless steel combined 300L distilling systems
Boiler
We can supply apple shape and dish top and bottom shape
Goose neck
material: T2 red copper
We have different shape opition

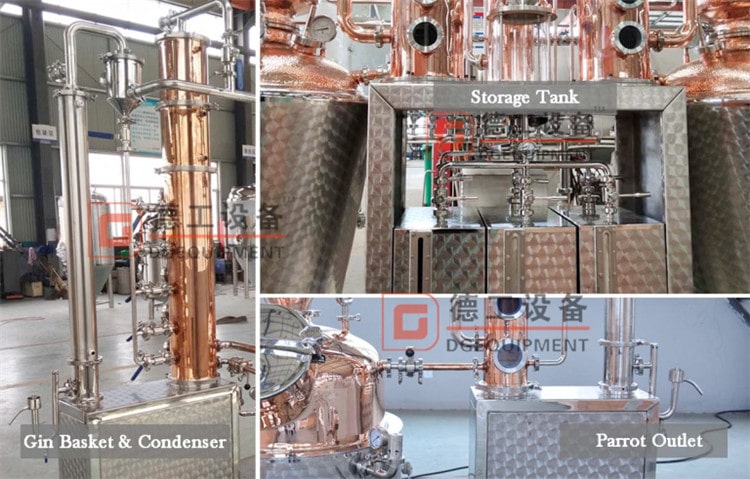

Gin basket
To improve flavor and extend the function of your system.

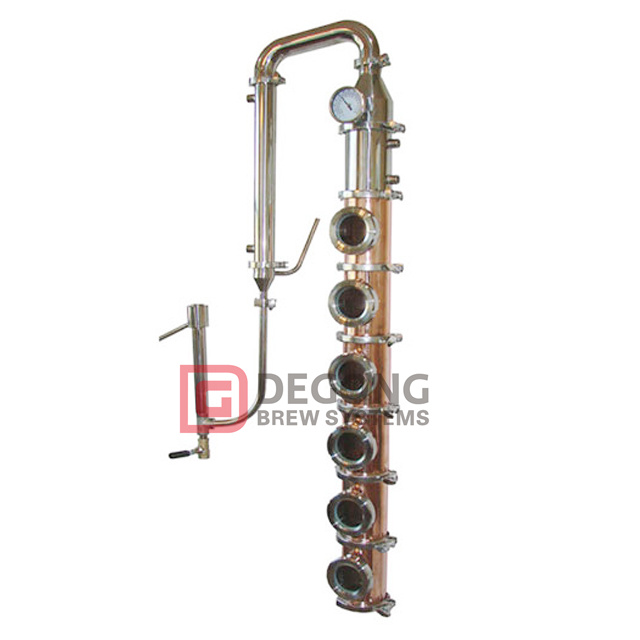

4-20 plates distillation column
it consists of red copper column, bubble cap, down comers, bubble plate, red copper screw. we can tailor the height and plate number for your need, the max height of column can reach 2000mm.

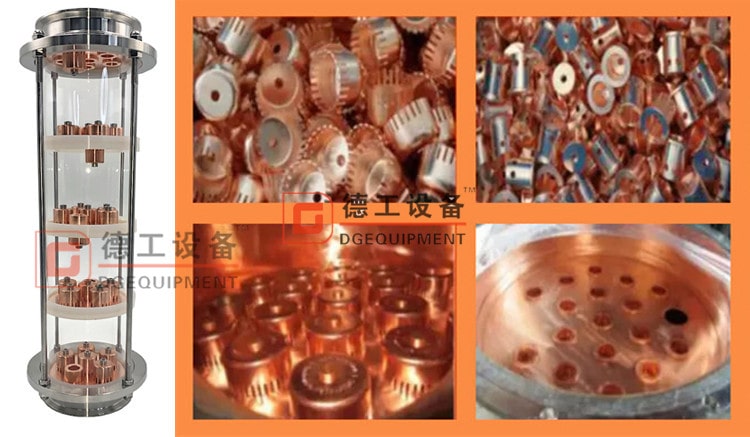

Bubble caps and trays
All the bubble caps and screws are made of T2 grade red copper and the screw designed by our company without no dead corner.
We have 6 sizes bubble caps: DN26/DN38/DN45/DN52/DN65/DN76
Dephlegmator
A reflux condenser at the top of the column that sends vapor back to the still pot. And the material is red copper or SUS 304 with flange connection.
Condenser
A heat exchanger in which hot vapors are cooled down and condensed into liquid. Structural tube type exchanger with cooling water inlet and outlet.
Parrot outlet
we can supply different shape of outlet to meet your request.
Column support
All support are made of stainless steel, we can do different shape according to your need.
CIP pump and pipe fittings
All SUS 304 pipe fittings with ex-proof centrifugal pump( UL, CSA, CE certificate). We supply hand valve and automatic valve option

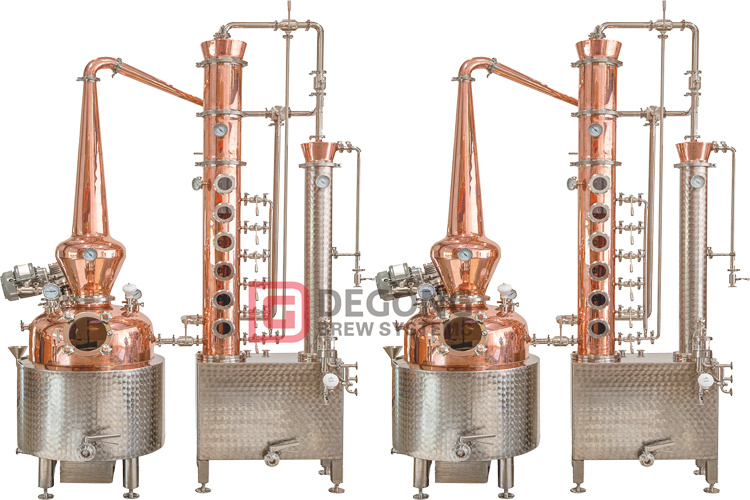

Craft distillery equipment
Agiatator & ex-proof motor on the boiler/potstill
Glass/stainless steel/copper column
Brand:DEGONG
Model:DEGONG 100L-3000L
Volts:380V/208V/405V/220V
Rating:5-72KW
Certificate:CE ISO
Quarantee:One Year
After-Service:24 Hours Free Consult
Application:Making Spritis like Vodka/Gin/Rum/Whisky/Brandy
Materal:SUS304、SUS316、T2 Red Copper
Volume:1000L-3000L
Heating Option:Electrical Heating、Steam Heating
Available Space:Craft Distillery,Farm,Pub
Leading Time:45-60days
If possible, please tell me your specific needs, I will manufacture a satisfactory plan for you!
This is a distillery/plant equipment, working capacity from 100liter to 10000liter for your choice.
Stainless steel SUS304 still pot or full copper material for your choice, or stainless steel inner tank and copper dish head for your economic choice.
The dephlegmator, condenser, parrot spout and gin basket option.
Distilling Column material: stainless steel SUS304, full red copper, glass for your choice. 4 column plate, 6 column plate, 8 column plate, 10 column plate for your option.
Full copper column tray, high quality, sanitary level.
The max alcohol concentration can reach 92%-95%.
Heating way: electric elements with oil/water jacket, also steam heating is ok if you need.
Copper & stainless steel combined 300L distilling systems
Boiler
We can supply apple shape and dish top and bottom shape
Goose neck
material: T2 red copper
We have different shape opition
Gin basket
To improve flavor and extend the function of your system.
4-20 plates distillation column
it consists of red copper column, bubble cap, down comers, bubble plate, red copper screw. we can tailor the height and plate number for your need, the max height of column can reach 2000mm.
Bubble caps and trays
All the bubble caps and screws are made of T2 grade red copper and the screw designed by our company without no dead corner.
We have 6 sizes bubble caps: DN26/DN38/DN45/DN52/DN65/DN76
Dephlegmator
A reflux condenser at the top of the column that sends vapor back to the still pot. And the material is red copper or SUS 304 with flange connection.
Condenser
A heat exchanger in which hot vapors are cooled down and condensed into liquid. Structural tube type exchanger with cooling water inlet and outlet.
Parrot outlet
we can supply different shape of outlet to meet your request.
Column support
All support are made of stainless steel, we can do different shape according to your need.
CIP pump and pipe fittings
All SUS 304 pipe fittings with ex-proof centrifugal pump( UL, CSA, CE certificate). We supply hand valve and automatic valve option
Craft distillery equipment
Agiatator & ex-proof motor on the boiler/potstill
Glass/stainless steel/copper column
Brand:DEGONG
Model:DEGONG 100L-3000L
Volts:380V/208V/405V/220V
Rating:5-72KW
Certificate:CE ISO
Quarantee:One Year
After-Service:24 Hours Free Consult
Application:Making Spritis like Vodka/Gin/Rum/Whisky/Brandy
Materal:SUS304、SUS316、T2 Red Copper
Volume:1000L-3000L
Heating Option:Electrical Heating、Steam Heating
Available Space:Craft Distillery,Farm,Pub
Leading Time:45-60days
If possible, please tell me your specific needs, I will manufacture a satisfactory plan for you!
