DGET-20BBL
DEGONG
8438400000
| Fermentation system |
Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on

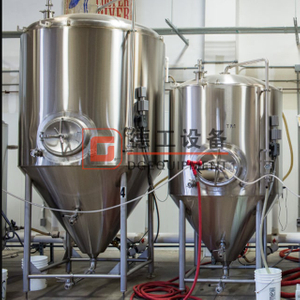

fermentation tank line
Configuration details
Material (SUS304) thickness | Inner thickness: 3.0mm; Outer thickness: 2.0mm;External-Jacket thickness: 1.5mm |
| Interior Finish | Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional) |
| Exterior Finish | Oil brushed finish (2B, 8K Mirror finish optional) |
| Inner treatment | Interior full polished to 0.2~0.4 μm without dead corner |
| Insulation | Insulated with high density Polyurethane foam 100mm |
| Cooling method | Glycol Jacket |
Vessel Pressure | practical pressure:1.5 bar;design pressure:3.0 bar |
| Equipment with | cone 60°resist compression design,dripping |
accessories of fermentation tank

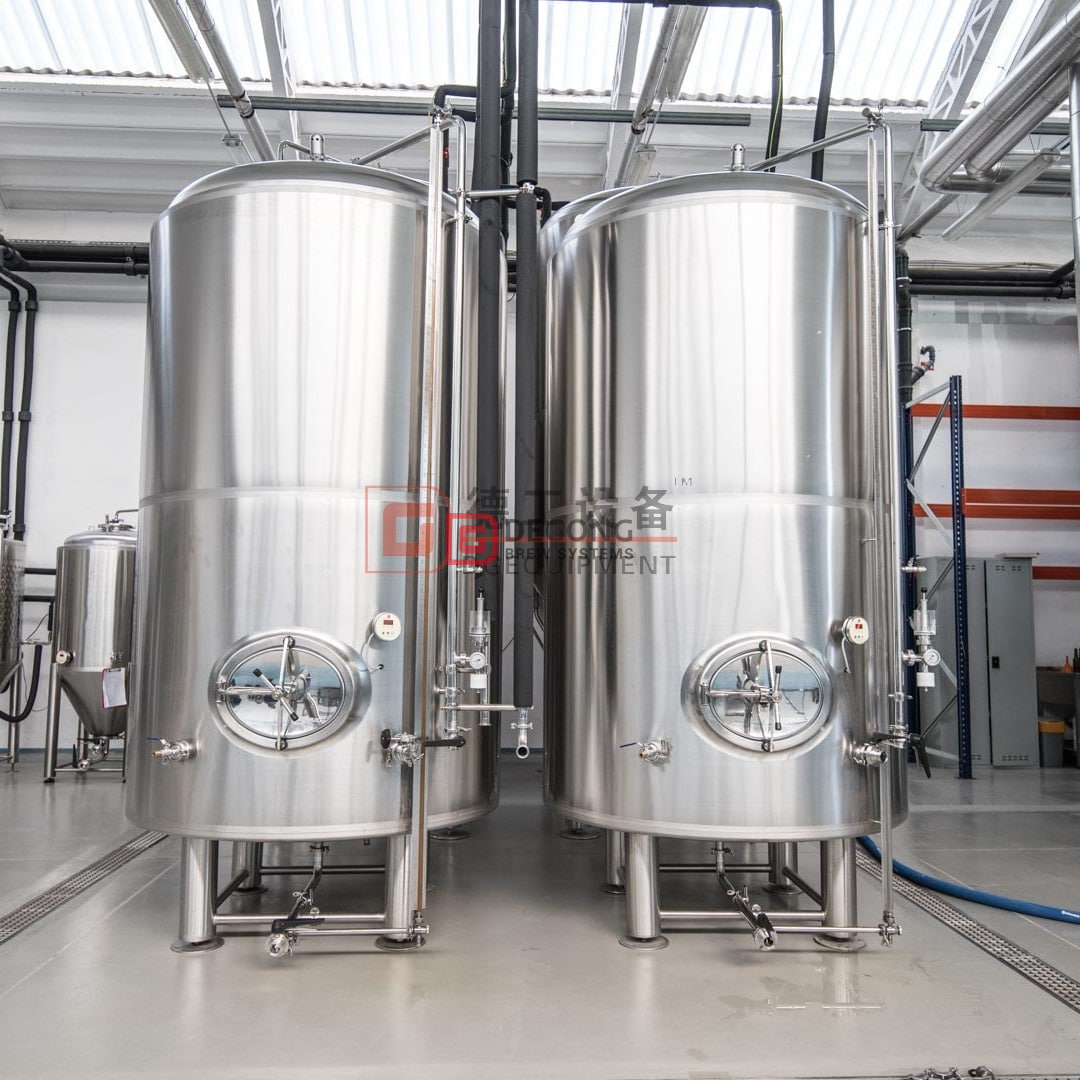

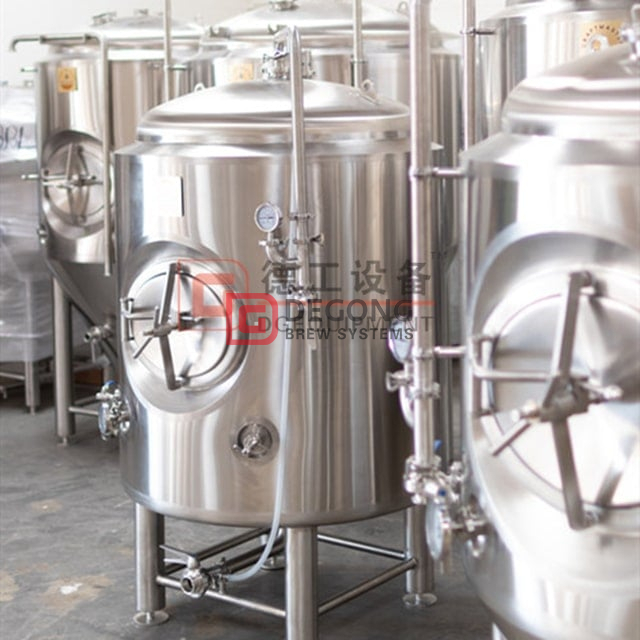

Brite beer tank
Micro-brite tank for placement in walk-in cooler, at economical price to meet budget of many start up brewery with guaranteed quality material and construction.The bright beer tanks made by Degong use top class stainless steel (SUS304), surface treatment can be 2B or precise polish or mirror polished. All fittings installed with tanks using top brands like ABB, Siemens, Omron, etc.

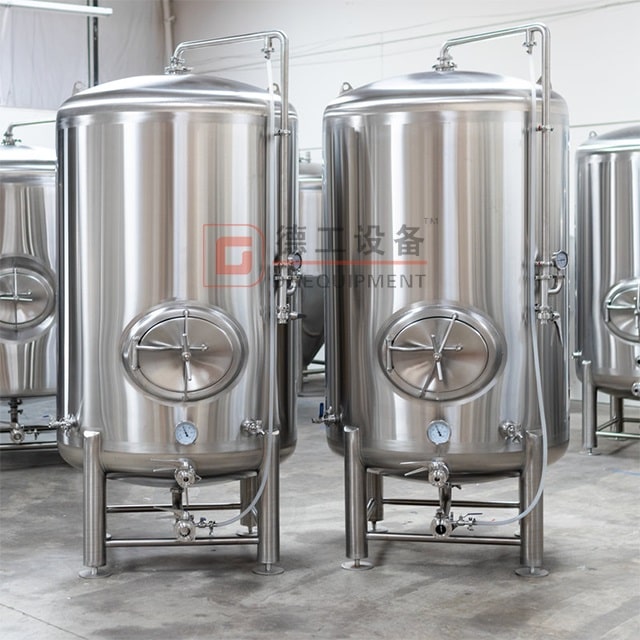

vertical brite beer tank
Configuration details
Stainless steel(304)sanitary construction
Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm
100% TIG welded and sanitary polished
Design pressure 0.3 MPa, working pressure <0.2 MPa
Interior Finish: Sanitary 2B finish, Pickled and Passivity
4 heavy duty stainless steel legs with adjustable height and leveling footpads
Insulation: Polyurethane-thickness 100 mm
CIP arm and spray ball 360o coverage. Easy clean slide over pipe connection with keeper pin
Pressure gauge
Thermometer gauge
Lifting lugs
Side man way door
Carbonation stone assembly
| Packing&delivery |
Standard packing:
Cord ,film membrane
Firm membrane, wood box for free fumigation
Punctual delivery time:
We put your order into our tight production schedule to ensure the punctual delivery time.
Production or inspection report before your order packed.
Shipping notice/ insurance to you as soon as your order is shipped.
| Our certificate |
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
| Contact us |
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
