DGET-20BBL
DGET
8438400000
| 20BBL BEER BREWERYT EQUIPMENT |
Malt crushing equipment used roller mill, distance adjustable. It is the most simple, a pair of drawing rollers, the two rollers during grinding relative rotation, the rotational speed of a roller is fixed, the other is adjustable.

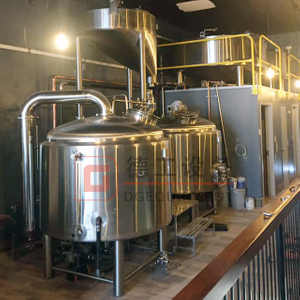

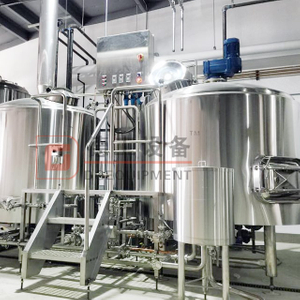

Brew house system consists of Mash Tun, Lauter Tun, Boiling Kettle, Whirlpool Kettle, Hop Dosing Equipment. The main equipment adopted international quality standards of sanitary 304 stainless steel, to deal with the tank by plasma cutting, pure Ar-shielding welding,mechanized automatic polishing machine.
Mash tun:
Steam jacket heating; tank body and bottom with dimple plate jacket;
Insulation: polyurethane
Conical top and conical bottom, top mounted light
Top mounted Manhole with glass door,
CIP 360°rotary spray device
Material: SUS304, Brushed outer shell. Interior Finish: Completely acid washing and passivation
Plate Surface protection, ribbon polished on welds.
100%TIG welding with pure argon gas shield
4pcs completely SUS304 heavy duty legs with leveling pad
With all matched valves and accessories
Lauter tun:
Insulation: polyurethane
Grain rake with VFD controlled motor and turbine reducer at bottom
Spent grain door automatic lifted
Bottom spent grain port with valve
Bottom with wort collection tube.
Conical top and flat bottom, top mounted light
Top mounted Manhole with glass door
CIP 360°rotary spray device
Back pressure flushing device under false bottom with nozzles
Material: SUS304, Brushed outer shell.
Interior Finish: Completely acid washing and passivation. 100% TIG welding with pure argon gas shield
Boiling kettle/whirlpool tun
Insulation: polyurethane
Side tangential whirlpool inlet
Two sections wort outlet on side of the bottom bone and side wall
Conical top and conical bottom, top mounted light
Top mounted manhole with glass door,
CIP 360°rotary spray device
Temperature sensor PT100
Material: SUS304, Brushed outer shell.
Interior Finish: Completely acid washing and passivation, inside polishing to 0.4μm without dead corner.
Plate Surface protection, ribbon polished on welds
100%TIG welding with pure argon gas shield
4pcs completely SUS304 heavy duty legs with leveling pad

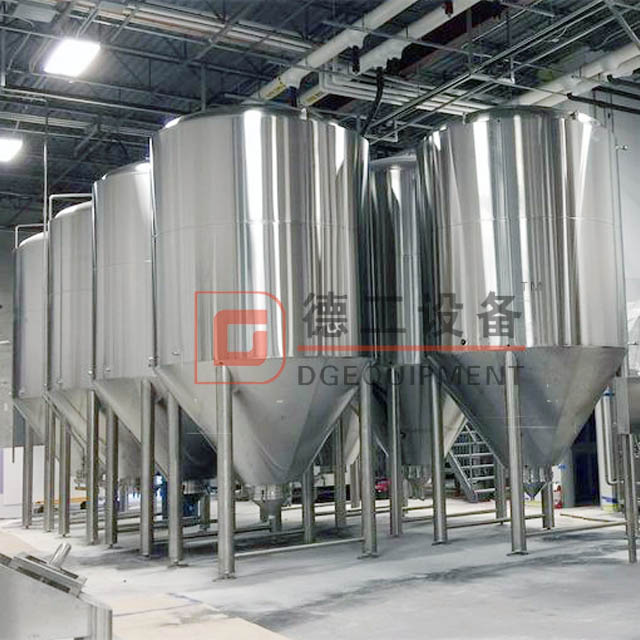

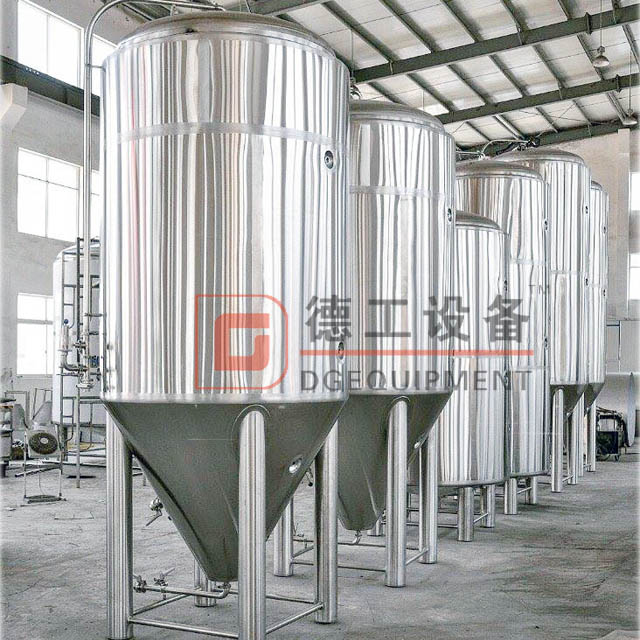

Fermentation systems is made up of Fermentation Tank and Bright Beer Tank. The quantities are based on customer's request. According to different fermenting request, structure of fermentation tank would be designed accordingly. Generally Fermentation Tank structure is made of dished head and cone bottom, with polyurethane installation and dimple cooling jackets. There is a cooling jacket on tank cone section, columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast.
The cooling system includes Chilled Water Tank, refrigerating machine and other line valves equipment. Beer refrigeration system mainly used for cooling the saccharifying wort and fermentation, it plays an important role in the whole process of brewing beer.
CIP cleaning system include lye tank, hydrogen peroxide tanks and supplementary valves, if the tank volume is small,the tank can be fixed on trolleys to clean brewing system.
The PLC control system includes Siemens programmable controllers, industrial personal computer and other auto-controlled components; The heating and cooling are fully automatic control, and it can also be hand controlled on the operation platform. The technological parameter can be programmed and set automatic or manually according to customer 's requirement or the technological requirements for different production objectives.
If you are interested in beer brewing system, please feel free to contact me.
Contact person: Kate
Email: michelle@degonget.com
Whatsapp: +86 178 6052 5597
