DGET-20BBL
DGET
8438400000
20BBL brewery tanks brief introduction
Fermentation Vessels, also known as fermenters or FVs (and occasionally spelled fermentors), are the tanks, barrels, or other vessels where wort is held as it ferments into beer.

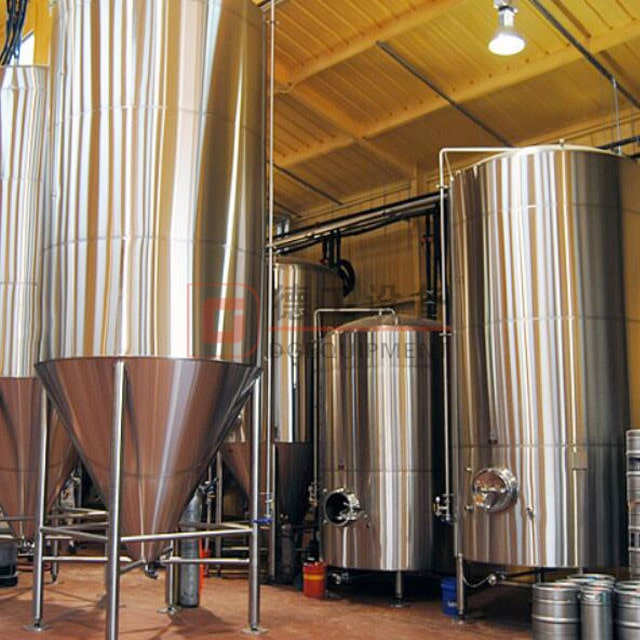

Brewery equipment cellar tanks
CCTs, each 20 bbl net and 25 bbl gross content, in stainless steel, with 60° cone, coolable over 1 cooling zone in the wall with glycol or ice water, isolated, covered, with manway, spray head, connection, outlet,
Ø: 1,600mm, height: 3,400mm, without papers, the tanks wer in use with 2 bar.
Main Features:
All material according to ASME standard. (Certification is available upon request.)
Inner Shell: 3mm, AISI 304 Stainless Steel
Outer Shell: 2mm, AISI 304 Stainless Steel
Inner cooling jacket design pressure0.3Mpa
25% head space for fermenting process.
Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.4µm sanitary finish.
Tank outside is 2B or #4 (brushed stainless) stainless steel plate
Shell and bottom cone cooling jacket for better temperature control.
Pillow Plate on shell body and cone;
Hook outside on the shell for ladders.
Other customization possibly available upon request.
60。cylindrical conical tanks
Main Components:
Manhole on the top or front
Level Indicator (standard) for inner tank.
Vacuum/Pressure combined valve. Tank top fittings, pressure gauge.
Built in rotary spray ball within the inner tank for cleaning.
Sanitary sampling valve, with the shortest connection on the tank, easily CIP cleanable.
Other customization possible upon request.
