2000L Stainless Steel Beer Making Equipment Industrial Restaurant Brewery Mechine for Sale
Home » Brewery Equipment » Beer brewery equipment » 2000L Stainless Steel Beer Making Equipment Industrial Restaurant Brewery Mechine for Sale

Product Detail

Share to:

2000L Stainless Steel Beer Making Equipment Industrial Restaurant Brewery Mechine for Sale

We manufacture and supply brewhouse that vary in size from 100 to 5,000 litres beer per brew. All our brewery equipment is suitable for brewpubs, restaurants, craft breweries and beer production. DEGONG brewery systems are turn-key and consist of malt mill, heating, controls and installation and training.

Configuration:
Thickness of material (mm):
Heating method:
Manhole:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000

We design and produce a line of brewing equipment to your specifications. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.


2d1c807fc4_副本

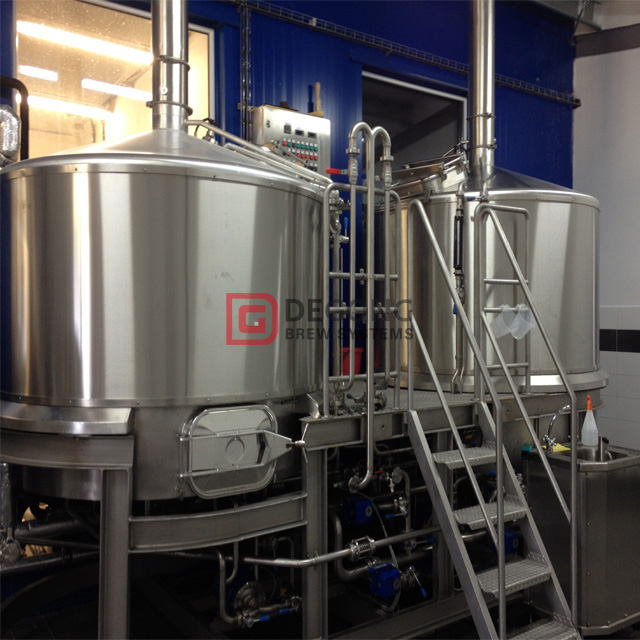

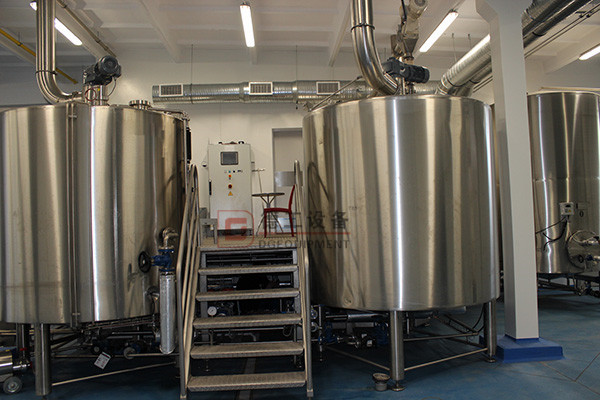

2 vessel brewhouse system in brewery


The craft beer brewing equipment , which is the best craft beer brewhouse system supplier offers high quality craft brewery for sale, contains practically improved function design and advanced and stable performance.

DEGONG Brewing Equipment is the place, where to buy the best craft beer brewhouse system.


Brewhouse system





























Mash/Kettle Tun





2000L





Material:SUS316L/SUS304/copper

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

Dimple, jacketed for steam heating,electric
heating tube,combustion chamber

ABB stirring motor

100mm rock wool for insulation

Round glass manhole, dish head,with temperature
sensor,cleaning tube, standard Washing ball,cleaning pipeline

Lauter/Whirlpool Tun





2000L





Material:SUS316L/ SUS304/copper

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

100mm rock wool for insulation

Lauter tun with round glass manhole,side mounted grain outdoor with spent grain chute,sampling valve,sight glass

Lauter plate: milling

Racking device,positive turn cultivating spent grain,reverse discharging spent grain

Tangential whirlpool inlet

With cleaning tube, with standard washing ball,cleaning pipeline


Rectangular side door矩形侧门_副本

Rectangular side door


糖化细节_副本

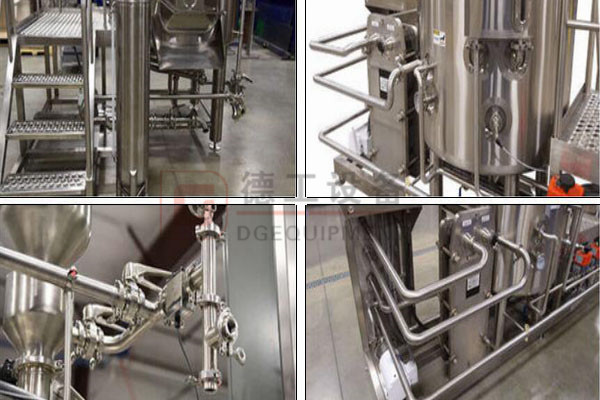

Working platform stairs and pipline


QQ截图20191230135843

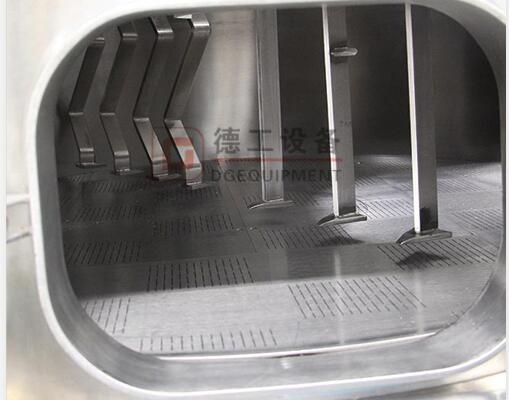

Spent grains port and false plate filter


We design fermentation (fermenters) and beer maturation tanks, water storage and preparation tanks and other containers needed for the purposes of the brewing process. Before making a purchase, a brewer must plan carefully what type of beer they want to brew and, most importantly, the desired amount. They must take into account that some beers' fermentation and maturation processes can take up to several weeks. For an optimally run process, the most important thing is to plan ahead and have enough tanks at your disposal.


QQjietu20191227101231.webp-min

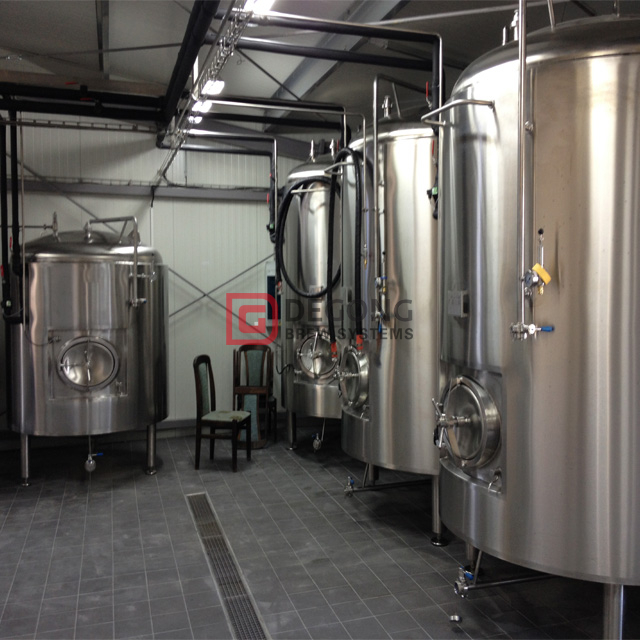

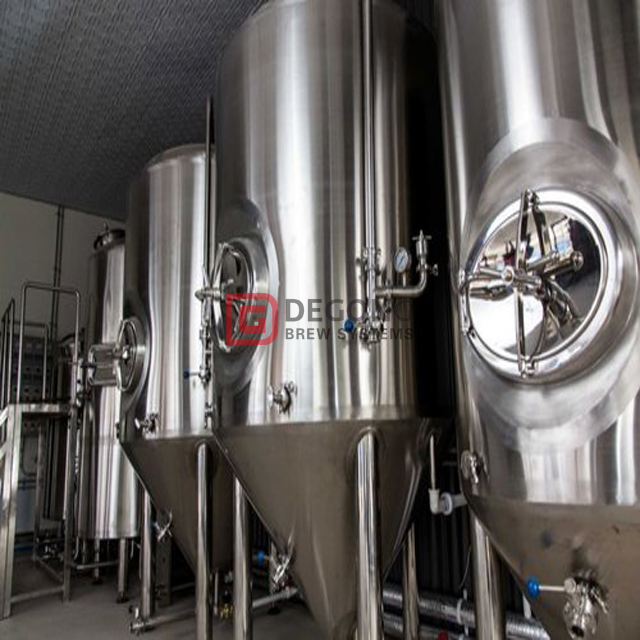

A row of stainless steel fermenter

Technical Characteristics:

All 304 Stainless Steel Construction

Jacketed & Insulated

Dual Zone Dimple Cooling Jacket

Dish Top & 60° Conical Bottom

4 Stainless Steel Legs with Leveling Ports

2000 liters fermenter Includes:

Top Manway or Side Shadowless Manway

Racking Port with Tri-Clover Butterfly Valve

Discharge Port with Tri-Clover Butterfly Valve

2 Tri-Clover Outlets with Butterfly Valves

CIP Arm and Spray Ball

Sample Valve

Pressure Gauge

Safety Valve

Tank with Thermometer


Technical features:

Quality material: our tanks, platforms, and piping are made of stainless steel 304,we only use certified materials;

Hygiene: all inner product contact surfaces are polished; the smooth surfaces enable a quick and efficient cleaning process; integrated CIP cleaning equipment in all tanks;

Custom-made anti-slip platform and staircase connect all components into a compact unit;

Well-thought-out piping system between the tanks and other equipment, pipes are fused with orbital welding, polished welds prevent dirt particle accumulation;

Separate pumps for each tank, possibility of running different processes simultaneously;

CIP cleaning system, separate CIP circulation for each tank;

Central control unit: processes are controlled using the main control panel; Control plate enables good monitoring and control through every step of the beer brewing process.


The brewery process

the-bruery-brewery-process

Milling-Mashing-Lautering-Boiling-Whirlpooling-Cooling-Fermenting-Maturing-Packaging-Distribution


What do you need to start your own craft brewery?

Malt mill,brewhouse,

suitable number of fermentation and maturation tanks,

water preparation and storage tanks (separate for hot and cold water),

chiller,steam generator,pump,

flexible piping: for pumping the product into the fermentors, for water pumping,

keg and bottle filling equipment,

packaging: bottles, cans, kegs,

labels for bottles and other packaging (original label designs can help boost your sales and make your beer easily recognizable, but they do have to contain all required beer information, including the expiration date).


About DGET

Packing & Shipping of beer brewery equipment:

1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame

2. All accessories and spare parts will be packaged with separate box.

3. After loaded into containers, all equipments will be well fixed to the containers.

4.Transportation mode: ocean, railway or air transportation.


自家发货

Putting brewery equipment into containers

Service & Guarantee:

1. Free charge for consultation service before, during, and after sales.

2. Our professional engineers and technicians can customize the equipment, and we can provide beer production technology,equipment design, installation and debugging, and personnel training service;

3. Provide 2 years complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxuliaries facilities are guaranteed for one year.
