1500L 4 Vessel ( Mash/kettle Tun,lauter Tun , Whirlpool Tun And Hot Liquor Tank) Brewing Equipment

The brewhouse in the basic configuration consists of two units: the mash-wort kettle and the lauter tun. The brewhouse can be three-unit - with the addition of a whirlpool, it can be four aggregate with the addition of a hot water tank or a separate mash-tun or other units at the client's request.

Material:
Thickness:
jacket thickness:
Configuration:
Heating method:
Quantity:
  • DGET-1500L
  • DGET
  • 8438400000

4-vessel-brewhouse

1500L 4 vessel brewing equipment

(mash/kettle tun,lauter tun ,whirlpool tun and hot liquor tank)

The brewery two vessels brewhouse is designed for brew any varieties of malt wort by the infusion method of mashing.

The brewhouse in the basic configuration consists of two units: the mash-wort kettle and the lauter tun. The brewhouse can be three-unit - with the addition of a whirlpool, it can be four aggregate with the addition of a hot water tank or a separate mash-tun or other units at the client's request.


Heating of the mash / wort is ensured by the heating of the jacket over the entire inner surface of the mash-wort kettle. Heat carrier in the heating jacket is food grade. Heating element - electric heating elements or gas burner.


Brewery equipment specifications:

A complete brewing system consists of the following parts:

Mash system:Miller

Brewhouse system:Mash/luter tun;kettle/whirlpool tun;Hot liquor tank

Fermentation tank;Bright beer tank

Cooling system:Glycol tank;cold water tank;chiler

Control system(brewhouse and fermenting controling)

CIP system:Sterilization and Caustic Tank


Specifictions for a complete set beer brewing equipment

Grain Milling Unit

Rolling Miller

300kg/h






Brewhouse unit

Mash/Lauter tun

Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring(optional)

Boil kettle/whirlpool tun

Steam Jacket on bottom and side/direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack

Hot liquor tank

Steam heating/direct fire heating/electric heating

Fermentation unit

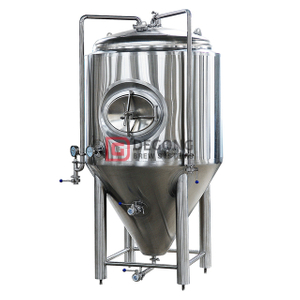

Fermentation tank

Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level

Bright beer tank

Bright beer tank

Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and COblow off arm
Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level

Glycol Chilling Unit

Glycol Water Tank

Insulated conical top and sloped bottom

Cold Water Tank

Dimple plate on side wall

Chiller


Control unit

Brewing and fermetation process Controlling

Manual button control panel or PLC control with touch screen for special

CIP unit

Caustic Tank

Sterilization Tank

Transfer&Control

electric heating element inside


Detail of beer brewing equipment


糖化细节-min浸润_副本-min

Dual CIP spray ball;raker and manhole


糖化细节1_副本-min

Motor and Ergonomic working platform


More information

Applications Area: Beer Bars, Hotels, Restaurants,BBQ etc.

Our Service:

1. ISO9001, CE certification.

2. Highly competitive price, more than 8 years production and manufacturing experience.

3. Our market team with our engineer with more than 8 years experiences together can satisfy you with any technology problem.

4. The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage.

Usage: Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.


Contact information

If you are interested in beer equipment, please feel free to contact me.


Alice新-min
