DGET-1500L
DEGONG
8438400000
Description
Our Industrial stainless steel brewery equipment is turnkey and automated ,consisting of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories.The 1500L brewery equipment can be used for commercial used or industrial brewery. With this high-quality brewery equipment, you are able to produce outstanding full-bodied beers.

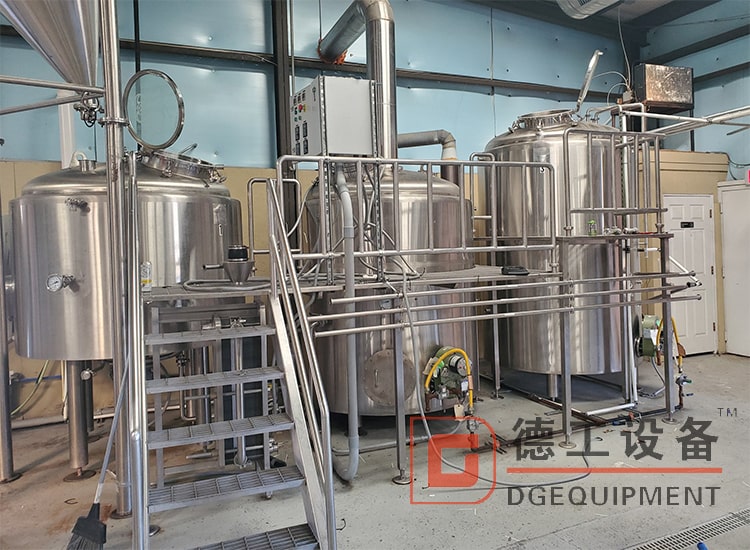

Brewhouse system

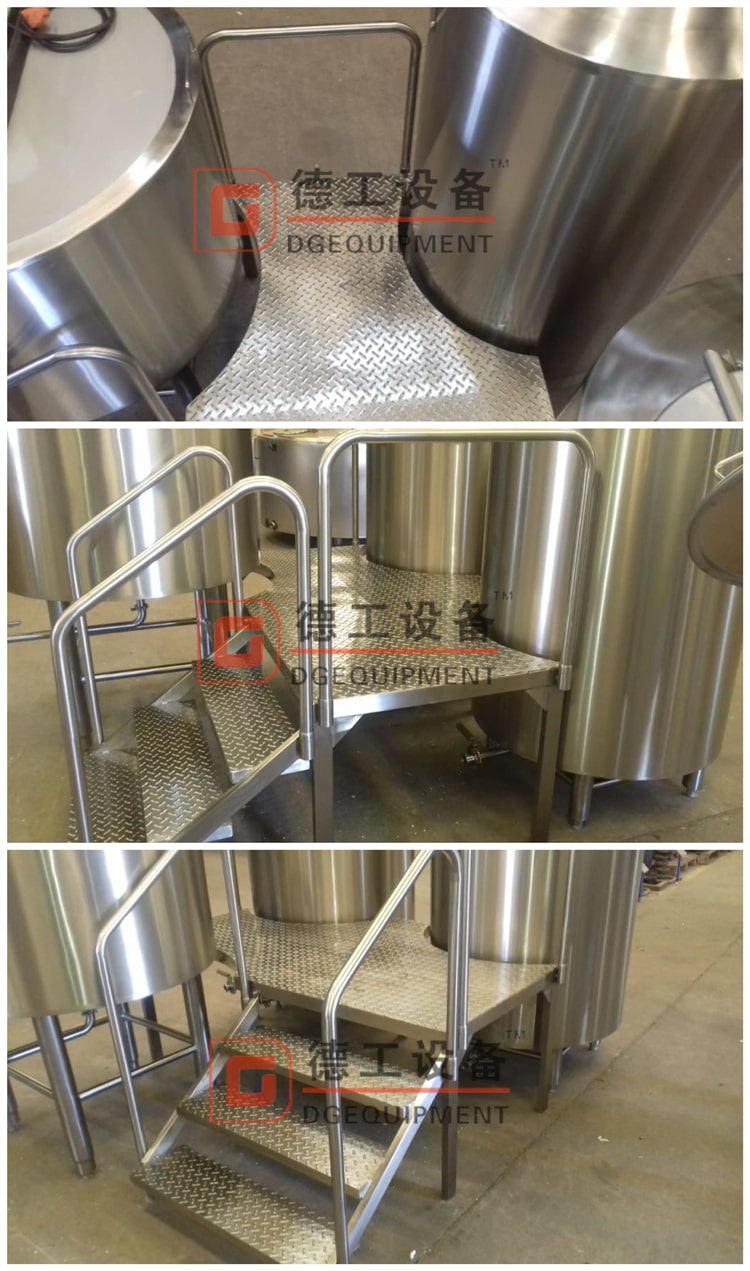

3-vessel beer brewhouse equipment with operation platform
Mash/lauter tank
Kettle/whirlpool tank
Hot water tank(optional)
Steam heating method (electric &direct fire heating are also optional)
electric boiler
gas boiler
diesel boiler
Above are optional as customers preference

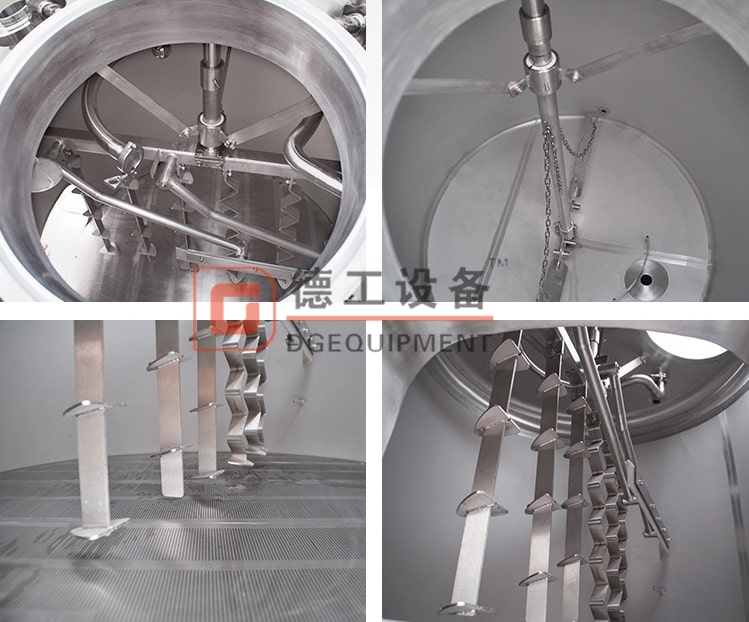

grain raker in mash tun
Top brand accessories
Siemens wort pump with VFD control
ABB&Siemens motor
Two stage plate Heat exchanger
Mechanical type safety valve
Sampling valve
Temperature probe
plate heating exchanger
Mechanical safety valve
Wort pump
ABB motor

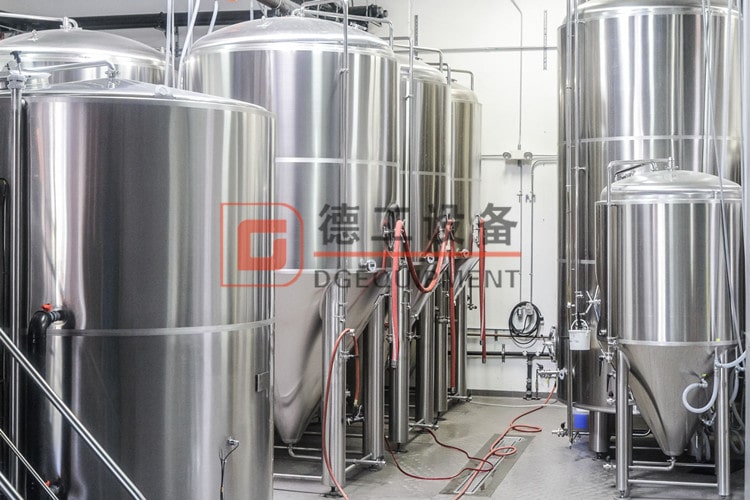

Fermentation system
Technical parameters of beer fermentation tank
Material: Inner(SUS304),thickness: 3.0mm
External-Jacket(SUS 304), thickness: 2.0mm
Cylinder (sharp type, SUS304), thickness: 2.0mm

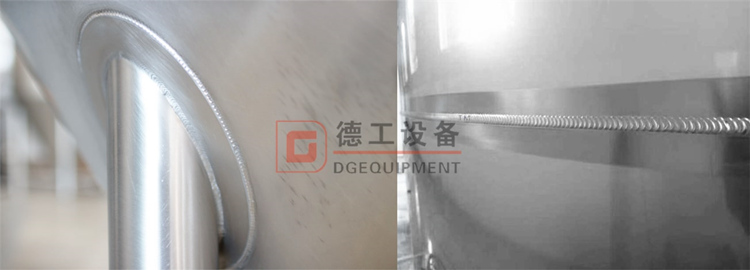

Inner surface treatment: welds grinded to Ra 0.6µm
Insulation: Polyurethane-thickness 100 mm
Outer surface processing: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

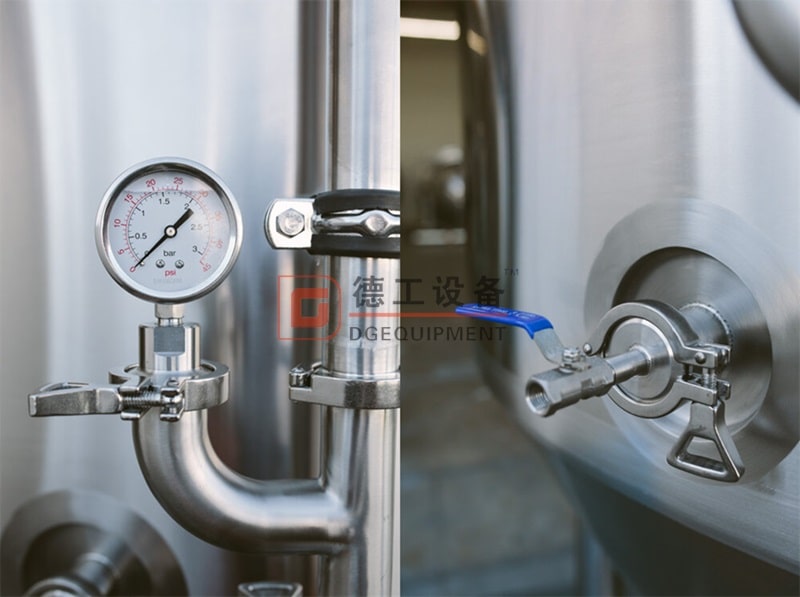

outside polishing&pressure gauge of fermenter
Control system
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.Semi automatic control system or PLC fully automatic control system if requested.

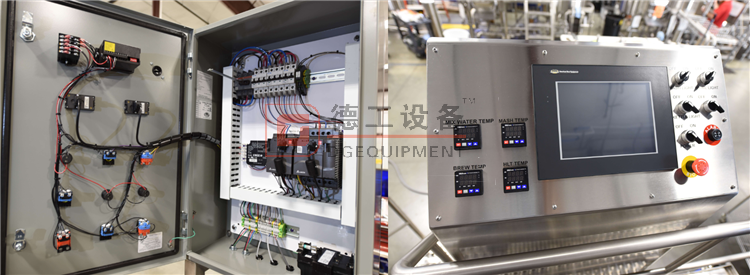

PID control cabinet
Our certificate
With the high standard of brewery equipment both in row materials and manufactures, DEGONG have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE
Customer visiting
With high standard quality and customer-oriented services,DEGONG have earned a high-reputation over 50 countries including EU,Africa,US, South America etc. Customers are welcome to visit our factory freely.
Packing&delivery
Packaging type : standard wooden package
Package details : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Delivery: by sea
Contact us
